6374 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

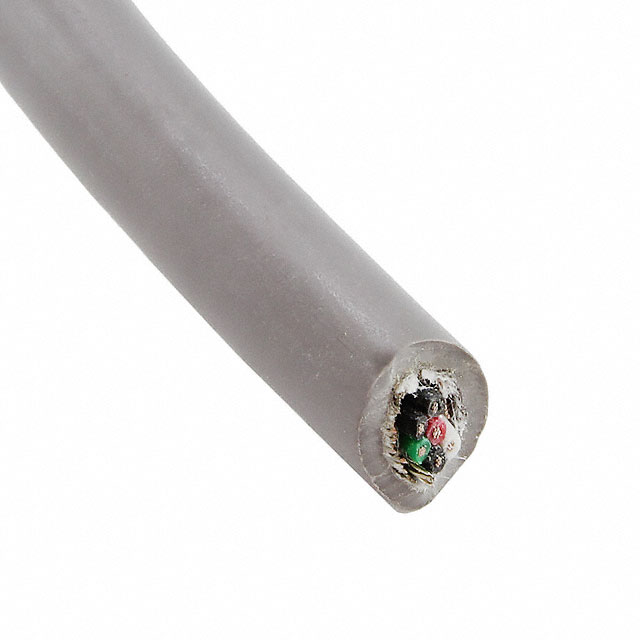

MULTI-PAIR 6CON 22AWG SLATE 100'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Jacket (Insulation) Material | Length [x] | Length [x] | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Cable Type | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Conductor Material | Ratings | Features | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | Braid Foil | 28 AWG | 7 | Slate | Multi-Pair | 300 VDC | 6.78 mm | 0.267 in | 6 | Copper Tinned | UL Style 2464 | Drain Wire | 22 AWG | 80 °C | -20 ░C | ||
 ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Braid Foil | 28 AWG | 7 | Slate | Multi-Pair | 300 VDC | 6.78 mm | 0.267 in | 6 | Copper Tinned | UL Style 2464 | Drain Wire | 22 AWG | 80 °C | -20 ░C | 152.4 m | 500 ft | ||
ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Braid Foil | 28 AWG | 7 | Slate | Multi-Pair | 300 VDC | 6.78 mm | 0.267 in | 6 | Copper Tinned | UL Style 2464 | Drain Wire | 22 AWG | 80 °C | -20 ░C | 304.8 m | 1000 ft |
