284093 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
TERM BLK 10POS TOP ENTRY 5MM PCB
| Part | Contact Material - Plating [custom] | Features | Screw Material - Plating | Color | Torque - Screw | Torque - Screw | Wire Gauge [Max] | Wire Gauge [Min] | Screw Thread | Positions Per Level | Pitch [x] | Pitch [x] | Mounting Type | Wire Termination | Voltage | Mating Orientation | Number of Levels | Current | Clamp Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

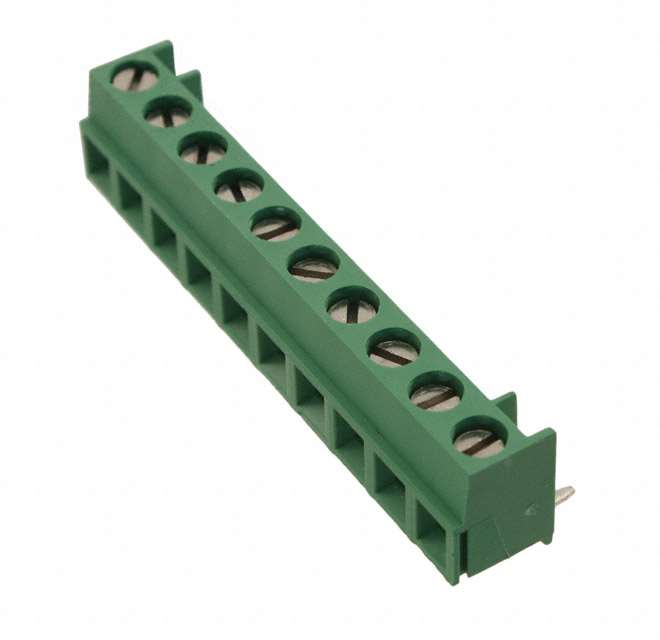

 TE Connectivity Raychem Cable Protection | Brass - Tin Plated | Interlocking (Side) | Brass - Nickel Plated | Green | 6 Lb-In | 0.68 Nm | 30 AWG | 16 AWG | M3 | 10 | 5 mm | 0.197 in | Through Hole | Screw - Rising Cage Clamp | 300 V | Vertical with Board | 1 | 13.5 A | Brass - Nickel Plated |
 TE Connectivity Raychem Cable Protection | Brass - Tin Plated | Interlocking (Side) | Brass - Nickel Plated | Green | 6 Lb-In | 0.68 Nm | 30 AWG | 16 AWG | M3 | 2 | 5 mm | 0.197 in | Through Hole | Screw - Rising Cage Clamp | 300 V | Vertical with Board | 1 | 13.5 A | Brass - Nickel Plated |

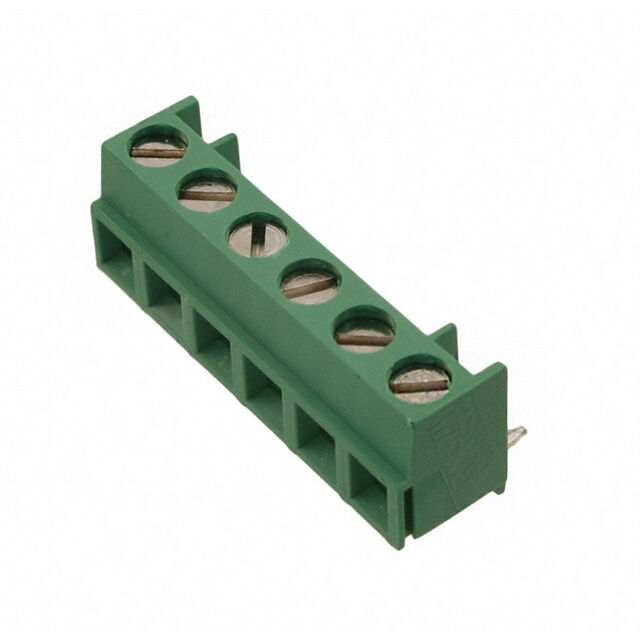

 TE Connectivity Raychem Cable Protection | Brass - Tin Plated | Interlocking (Side) | Brass - Nickel Plated | Green | 6 Lb-In | 0.68 Nm | 30 AWG | 16 AWG | M3 | 6 | 5 mm | 0.197 in | Through Hole | Screw - Rising Cage Clamp | 300 V | Vertical with Board | 1 | 13.5 A | Brass - Nickel Plated |

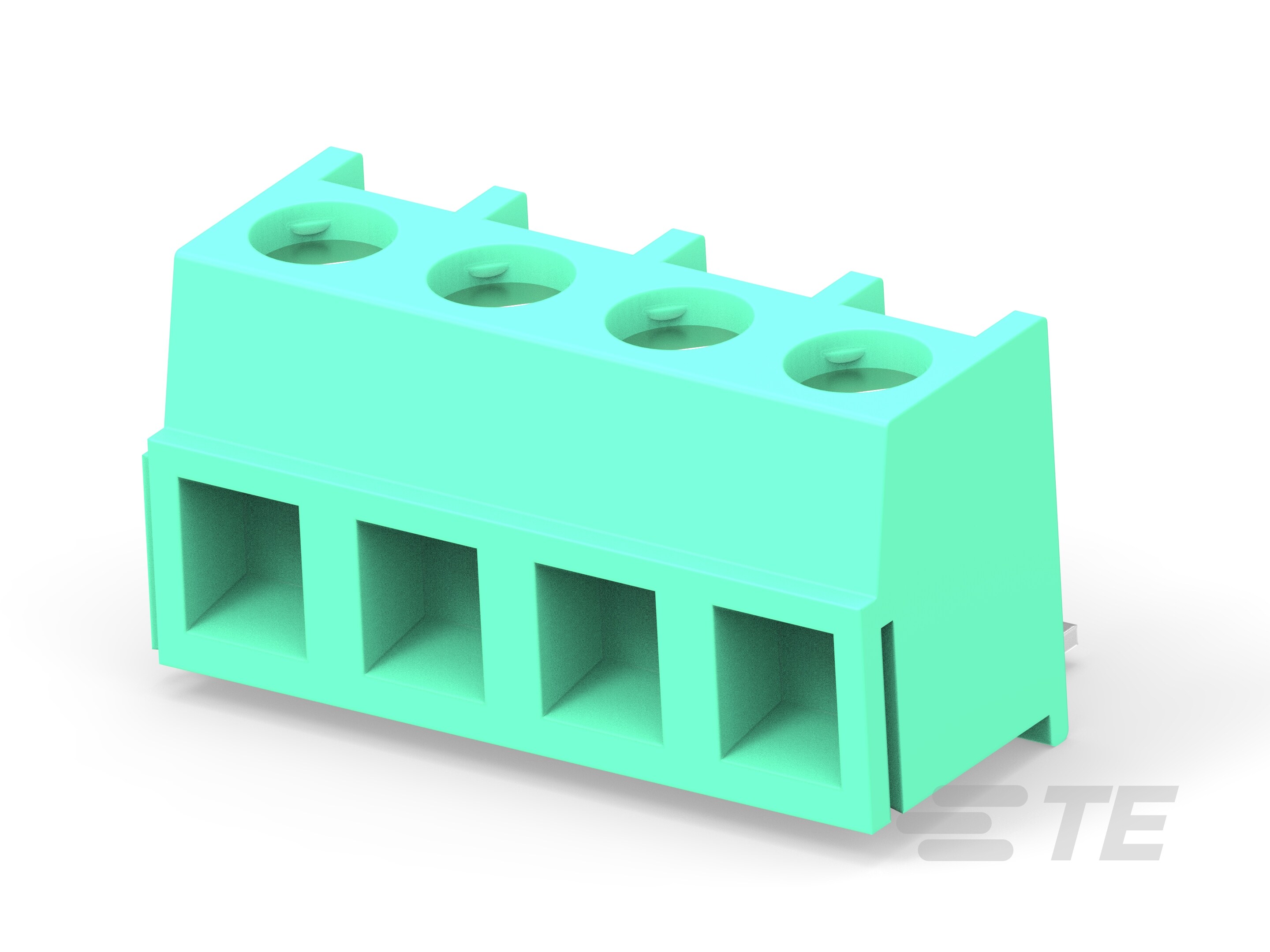

 TE Connectivity Raychem Cable Protection | Brass - Tin Plated | Interlocking (Side) | Brass - Nickel Plated | Green | 6 Lb-In | 0.68 Nm | 30 AWG | 16 AWG | M3 | 4 | 5 mm | 0.197 in | Through Hole | Screw - Rising Cage Clamp | 300 V | Vertical with Board | 1 | 13.5 A | Brass - Nickel Plated |

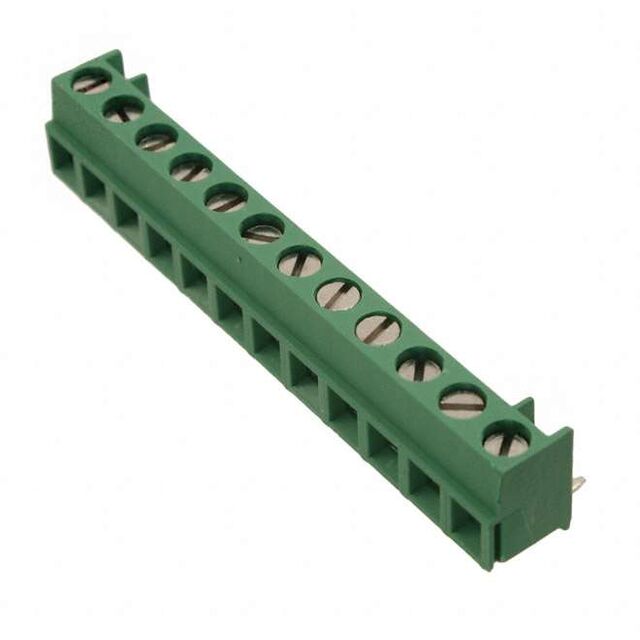

 TE Connectivity Raychem Cable Protection | Brass - Tin Plated | Interlocking (Side) | Brass - Nickel Plated | Green | 6 Lb-In | 0.68 Nm | 30 AWG | 16 AWG | M3 | 12 | 5 mm | 0.197 in | Through Hole | Screw - Rising Cage Clamp | 300 V | Vertical with Board | 1 | 13.5 A | Brass - Nickel Plated |
