FDD1-17251 Series

Manufacturer: Qualtek

Catalog

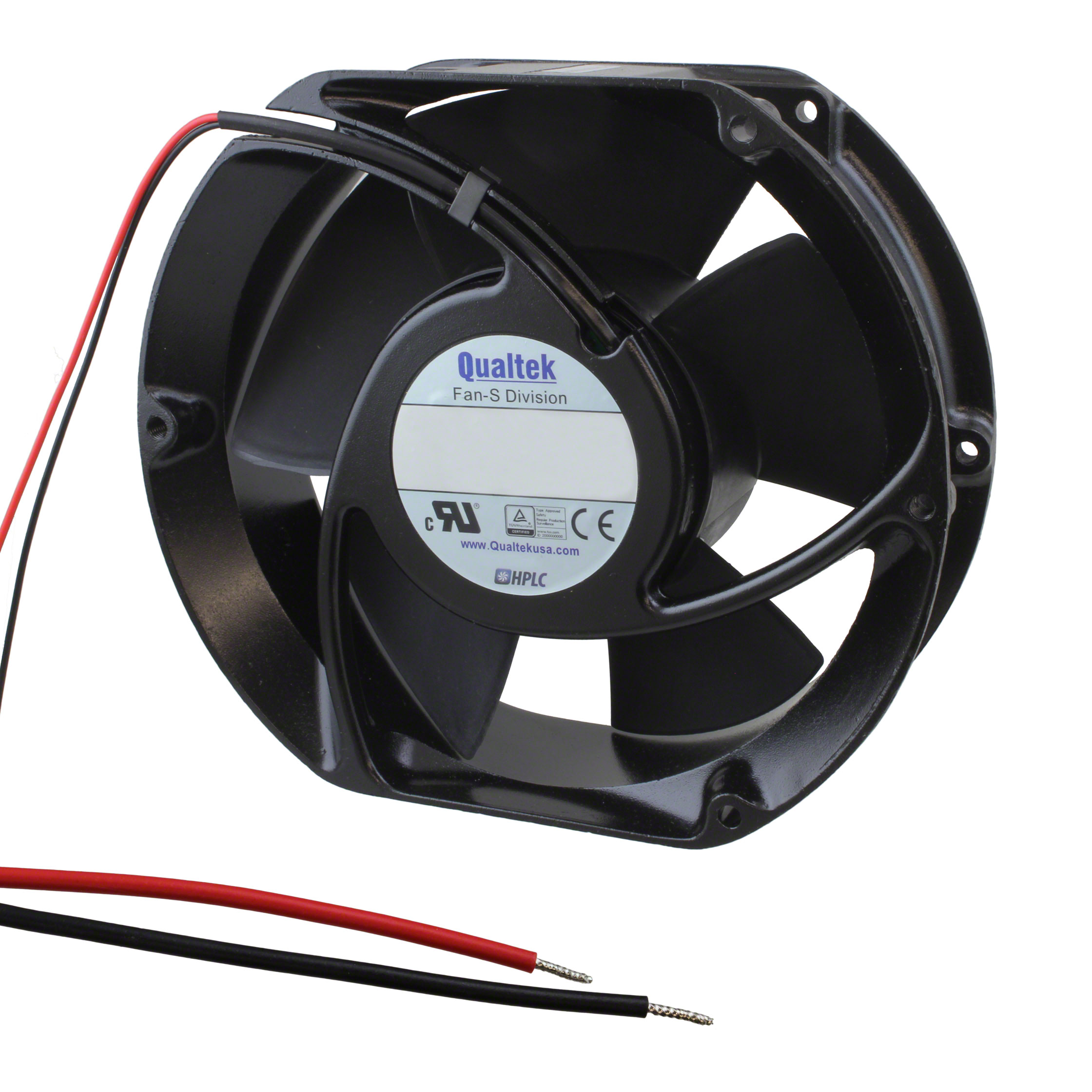

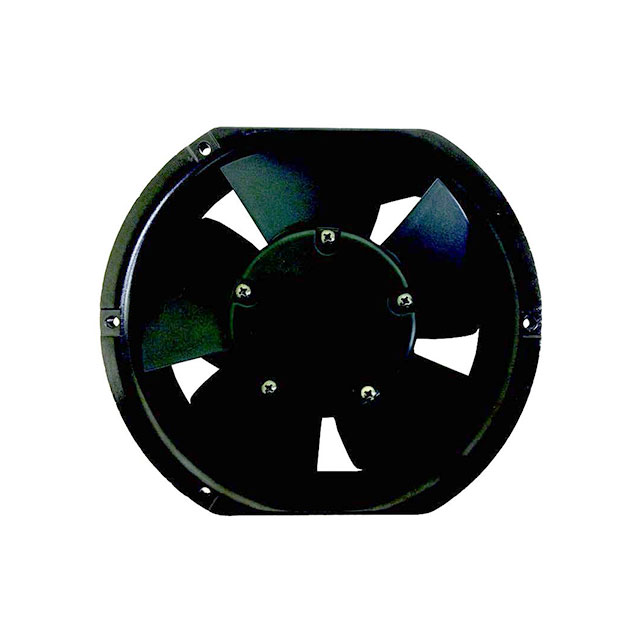

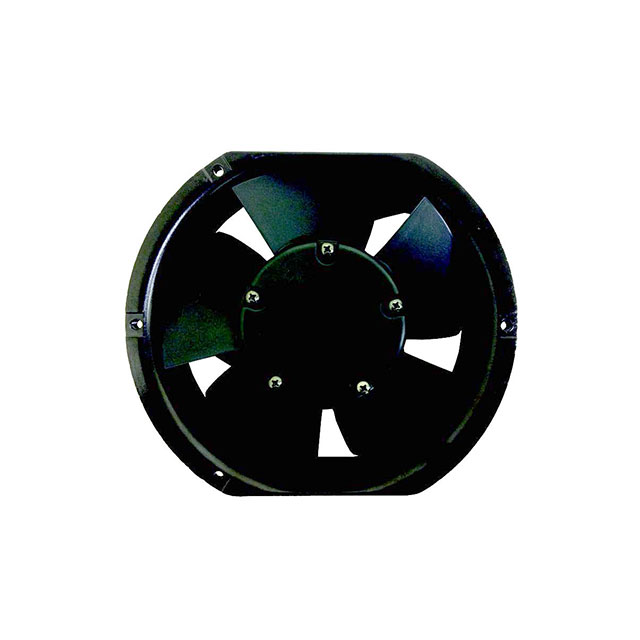

FAN AXIAL 172X51MM 12VDC WIRE

Part	Current Rating (Amps)	Material - Frame	Air Flow	Air Flow	Lifetime @ Temp.	Material - Blade	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Weight [custom]	Weight [custom]	Noise	Bearing Type	Static Pressure	Static Pressure	Power (Watts)	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Width [x]	Approval Agency	Ingress Protection	Termination	RPM	Features
Qualtek FDD1-17251CBMW32-L56	2.75 A	Aluminum	290 CFM	8.12 m³/min	100000 Hrs	Plastic	12 VDC	-20 ░C	70 °C	Tubeaxial	2.5 lbs	1.1 kg	60 dB(A)	Ball	0.925 in H2O	230.4 Pa	33 W	Rectangular/Rounded	151 mm	172 mm	51 mm	CE cURus TUV	IP56M	2 Wire Leads	3600 RPM
Qualtek FDD1-17251EBKW32	1.48 A	Aluminum	390 CFM	10.92 m³/min	50000 Hrs	Plastic	48 VDC	-20 ░C	70 °C	Tubeaxial	2.5 lbs	1.1 kg	72 dB(A)	Ball	1.587 in H2O	395.3 Pa	71 W	Rectangular/Rounded	151 mm	172 mm	51 mm	CE cURus TUV	IP54 - Dust Protected Water Resistant	2 Wire Leads	4800 RPM
Qualtek FDD1-17251CBHW3B-L56		Aluminum	325 CFM	9.1 m³/min	100000 Hrs	Plastic	12 VDC	-20 ░C	70 °C	Tubeaxial	2.5 lbs	1.1 kg	64 dB(A)	Ball	1.134 in H2O	282.5 Pa	44.8 W	Rectangular/Rounded	151 mm	172 mm	51 mm	CE cURus TUV	IP56M	4 Wire Leads	4000 RPM	PWM Control Speed Sensor (Tach)
Qualtek FDD1-17251CBHW32		Aluminum	325 CFM	9.1 m³/min	50000 Hrs	Plastic	12 VDC	-20 ░C	70 °C	Tubeaxial	2.3 lbs	1 kg	64 dB(A)	Ball	1.134 in H2O	282.5 Pa	44.8 W	Rectangular/Rounded	151 mm	172 mm	51 mm	CE cURus TUV		2 Wire Leads	4000 RPM
Qualtek FDD1-17251DBLW3B-L56	0.89 A	Aluminum	255 CFM	7.14 mł/min	100000 Hrs	Plastic	24 VDC	-20 ░C	70 °C	Tubeaxial	2.5 lbs	1.1 kg	56 dB	Ball	0.736 in H2O	183.3 Pa	21.4 W	Rectangular/Rounded	151 mm	172 mm	51 mm	CE cURus TUV	IP56M	4 Wire Leads	3200 RPM	PWM Control Speed Sensor (Tach)
Qualtek FDD1-17251CBHW39		Aluminum	325 CFM	9.1 m³/min	50000 Hrs	Plastic	12 VDC	-20 ░C	70 °C	Tubeaxial	2.5 lbs	1.1 kg	64 dB(A)	Ball	1.134 in H2O	282.5 Pa	44.8 W	Rectangular/Rounded	151 mm	172 mm	51 mm	CE cURus TUV	IP54 - Dust Protected Water Resistant	3 Wire Leads	4000 RPM	PWM Control
Qualtek FDD1-17251DBLW32	0.89 A	Aluminum	255 CFM	7.14 mł/min	50000 Hrs	Plastic	24 VDC	-20 ░C	70 °C	Tubeaxial	2.3 lbs	1 kg	56 dB	Ball	0.736 in H2O	183.3 Pa	21.4 W	Rectangular/Rounded	151 mm	172 mm	51 mm	CE cURus TUV		2 Wire Leads	3200 RPM
Qualtek FDD1-17251DBAW32	650 mA	Aluminum	220 CFM	6.16 m³/min	50000 Hrs	Plastic	24 VDC	-20 ░C	70 °C	Tubeaxial	2.5 lbs	1.1 kg	52 dB	Ball	0.571 in H2O	142.2 Pa	15.6 W	Rectangular/Rounded	151 mm	172 mm	51 mm	CE cURus TUV	IP54 - Dust Protected Water Resistant	2 Wire Leads	2800 RPM
Qualtek FDD1-17251CBLW34-L56	1.88 A	Aluminum	255 CFM	7.14 mł/min	100000 Hrs	Plastic	12 VDC	-20 ░C	70 °C	Tubeaxial	2.5 lbs	1.1 kg	56 dB	Ball	0.736 in H2O	183.3 Pa	22.6 W	Rectangular/Rounded	151 mm	172 mm	51 mm	CE cURus TUV	IP56M	3 Wire Leads	3200 RPM	Speed Sensor (Tach)
Qualtek FDD1-17251DBLW34-L56	0.89 A	Aluminum	255 CFM	7.14 mł/min	100000 Hrs	Plastic	24 VDC	-20 ░C	70 °C	Tubeaxial	2.5 lbs	1.1 kg	56 dB	Ball	0.736 in H2O	183.3 Pa	21.4 W	Rectangular/Rounded	151 mm	172 mm	51 mm	CE cURus TUV	IP56M	3 Wire Leads	3200 RPM	Speed Sensor (Tach)
