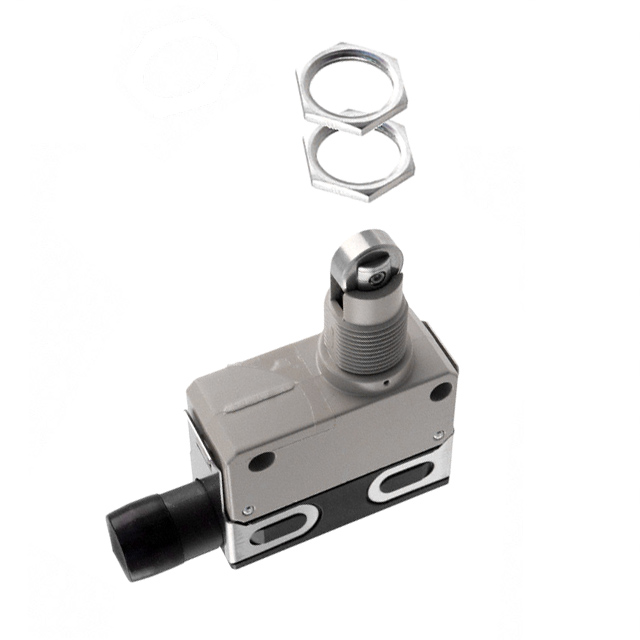

D4E-1A10 Series

Catalog

SWITCH SNAP ACTION SPDT 1A 125V

Part	Switch Function	Overtravel	Overtravel	Actuator Type	Mechanical Life	Pretravel	Pretravel	Operating Force	Voltage Rating - AC	Voltage Rating - DC	Circuit	Operating Position	Operating Position	Release Force	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Differential Travel	Differential Travel	Ingress Protection
Omron Electronics Inc-EMC Div D4E-1A10N OKUMA	On-Mom	3 mm	0.118 in	Roller Plunger	10000000 Cycles	1.5 mm	0.06 in	1200 gf	125 V	30 V	SPDT	1.235 in	31.4 mm	500 gf	80 C	-10 °C	Connector	0.1 mm	0.004 in	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div D4E-1A10N-CN4	On-Mom	3 mm	0.118 in	Roller Plunger	10000000 Cycles	1.5 mm	0.06 in	1200 gf	125 V	30 V	SPDT	1.235 in	31.4 mm	500 gf	80 C	-10 °C	Connector	0.1 mm	0.004 in	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div D4E-1A10N	On-Mom	3 mm	0.118 in	Roller Plunger	10000000 Cycles	1.5 mm	0.06 in	1200 gf	125 V	30 V	SPDT	1.235 in	31.4 mm	500 gf	80 C	-10 °C	Connector	0.1 mm	0.004 in	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div D4E-1A10N-CN3	On-Mom	3 mm	0.118 in	Roller Plunger	10000000 Cycles	1.5 mm	0.06 in	1200 gf	125 V	30 V	SPDT	1.235 in	31.4 mm	500 gf	80 C	-10 °C	Connector	0.1 mm	0.004 in	IP67 - Dust Tight Waterproof
