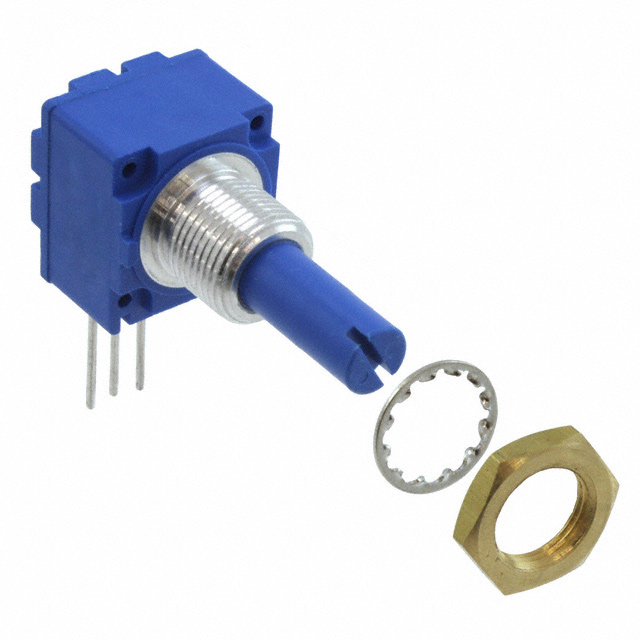

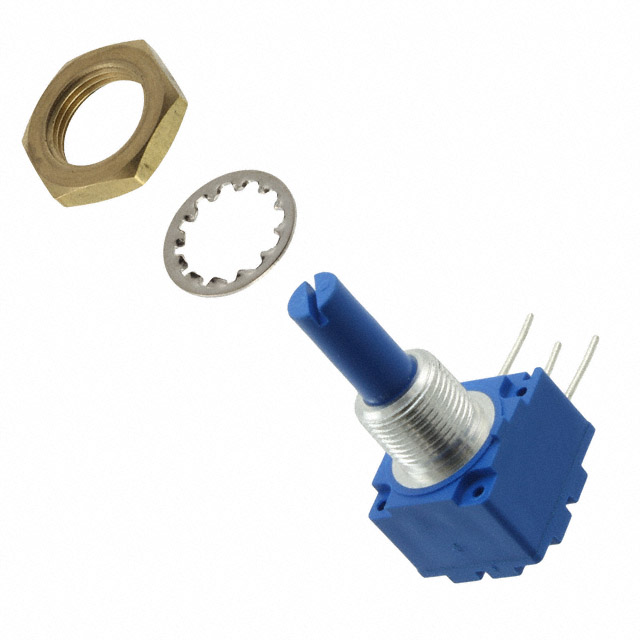

91R1A Series
Manufacturer: Bourns Inc.
Beta
⌘K
POT 25K OHM 1W PLASTIC LINEAR
| Part | Adjustment Type | Built in Switch | Number of Turns | Size - Body [x] | Size - Body [x] | Size - Body [y] | Size - Body [y] | Actuator Length [x] | Actuator Length [x] | Mounting Type | Tolerance | Resistance (Ohms) [custom] | Actuator Type | Bushing Thread | Bushing Thread | Resistive Material | Rotation | Termination Style | Power (Watts) | Temperature Coefficient | Number of Gangs | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Taper | Resistance (Ohms) | Power (Watts) | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Side Adjustment | None | 1 | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 22 mm | 0.866 in | Panel Mount | 20 % | 25 kOhms | Slotted | M10 | 0.75 | Conductive Plastic | 300 ░ | PC Pins | 1 W | 1000 ppm/°C | 1 | 6 mm | 0.236 in | Linear | |||
Bourns Inc. | Side Adjustment | None | 1 | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 22 mm | 0.866 in | Panel Mount | 20 % | Slotted | M10 | 0.75 | Conductive Plastic | 300 ░ | PC Pins | 1 W | 1000 ppm/°C | 1 | 6 mm | 0.236 in | Linear | 500 kOhms | |||
 Bourns Inc. | Side Adjustment | None | 1 | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 22 mm | 0.866 in | Panel Mount | 10 % | Slotted | M10 | 0.75 | Cermet | 300 ░ | PC Pins | 2 W | 150 ppm/°C | 1 | 6 mm | 0.236 in | Linear | 5 kOhms | |||
 Bourns Inc. | Side Adjustment | None | 1 | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 22 mm | 0.866 in | Panel Mount | 20 % | Slotted | M10 | 0.75 | Conductive Plastic | 300 ░ | PC Pins | 0.5 W | 1000 ppm/°C | 1 | 6 mm | 0.236 in | Logarithmic | 0.5 W | 100k |
