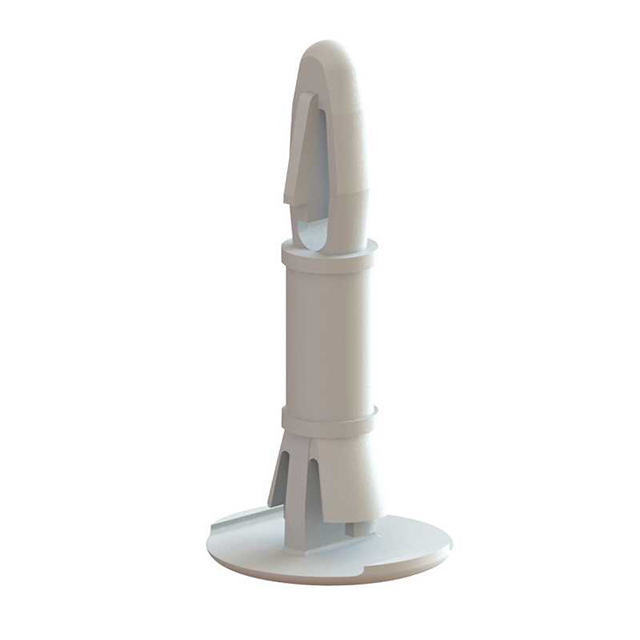

RLCBSR Series

Catalog

BRD SPT SNAP LOCK NYLON 5/8"

Part	Between Board Height	Between Board Height	Between Board Height	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Material	Holding Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Features	Length - Overall [x]	Length - Overall [x]	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Mounting Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Mounting Hole Diameter	Mounting Hole Diameter	Mounting Hole Diameter
Essentra Components RLCBSR-10-01	15.88 mm	0.625 in	5 8	1.57 mm	0.062 in	0.0625 in	1.6 mm	0.063 in	0.059 "	1.5 mm	Nylon	Snap Lock	0.1875 in	0.187 in	4.75 mm	Locking Reverse Mounting	27.7 mm	1.091 in	0.125 in	0.125 in	3.18 mm	Snap Lock
Essentra Components RLCBSRE-4-01	0.25 in	6.35 mm		1.57 mm	0.062 in	0.0625 in	1.65 mm	0.065 "	0.059 "	1.5 mm	Nylon	Snap Lock		0.213 "	5.4 mm	Locking Reverse Mounting	20.15 mm	0.793 "				Snap Lock	3.99 mm	0.157 "
Essentra Components RLCBSR-5-01	7.95 mm	0.313 in	0.3125 in	1.57 mm	0.062 in	0.0625 in	1.6 mm	0.063 in	0.059 "	1.5 mm	Nylon	Snap Lock	0.1875 in	0.187 in	4.75 mm	Locking Reverse Mounting	19.7 mm	0.776 in	0.125 in	0.125 in	3.18 mm	Snap Lock

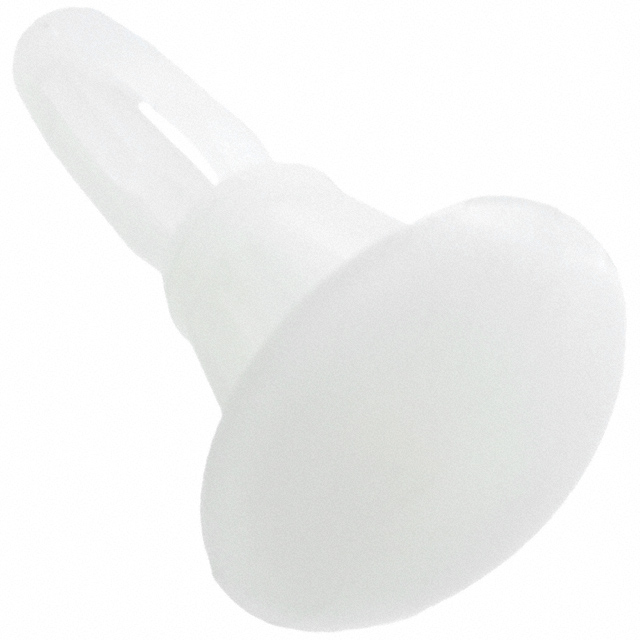

Essentra Components RLCBSR1-4-01	0.25 in	6.35 mm		1.57 mm	0.062 in	0.0625 in	1.65 mm	0.065 "	0.059 "	1.5 mm	Nylon	Snap Lock				Locking Reverse Mounting	20.15 mm	0.793 "				Snap Lock	3.99 mm	0.157 "	6.35 mm	0.25 in	0.25 "
Essentra Components RLCBSRE-6-01	9.53 mm	0.375 in	0.375 "	1.57 mm	0.062 in	0.0625 in	1.65 mm	0.065 "	0.059 "	1.5 mm	Nylon	Snap Lock		0.213 "	5.4 mm	Locking Reverse Mounting	23.24 mm	0.915 in				Snap Lock	3.99 mm	0.157 "

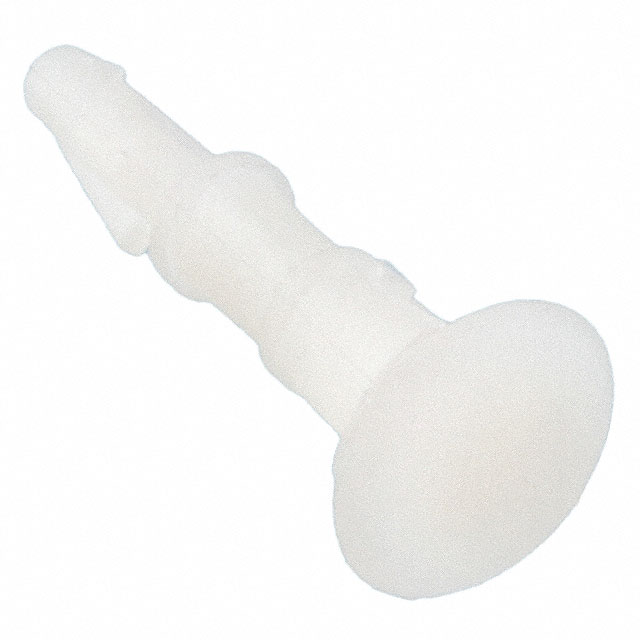

Essentra Components RLCBSR-7-01	11.13 mm	0.438 in	0.4375 "	1.57 mm	0.062 in	0.0625 in	1.6 mm	0.063 in	0.059 "	1.5 mm	Nylon	Snap Lock	0.1875 in	0.187 in	4.75 mm	Locking Reverse Mounting	22.9 mm	0.902 in	0.125 in	0.125 in	3.18 mm	Snap Lock

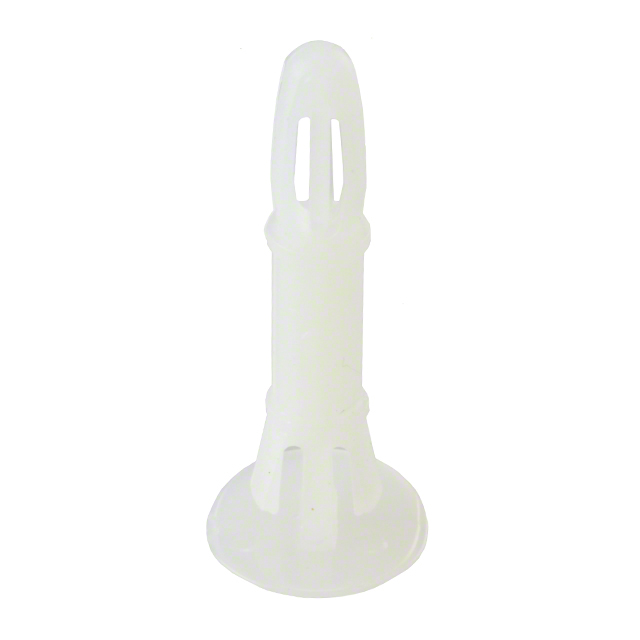

Essentra Components RLCBSRE-10-01	15.88 mm	0.625 in	5 8	1.57 mm	0.062 in	0.0625 in	1.65 mm	0.065 "	0.059 "	1.5 mm	Nylon	Snap Lock		0.213 "	5.4 mm	Locking Reverse Mounting						Snap Lock	3.99 mm	0.157 "

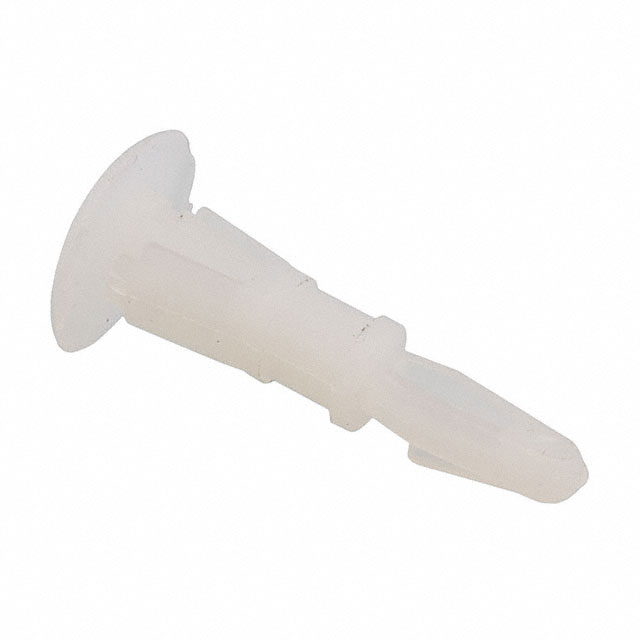

Essentra Components RLCBSR-6-01	9.53 mm	0.375 in	0.375 "	1.57 mm	0.062 in	0.0625 in	1.6 mm	0.063 in	0.059 "	1.5 mm	Nylon	Snap Lock	0.1875 in	0.187 in	4.75 mm	Locking Reverse Mounting	21.3 mm	0.839 in	0.125 in	0.125 in	3.18 mm	Snap Lock
