PRPC001 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

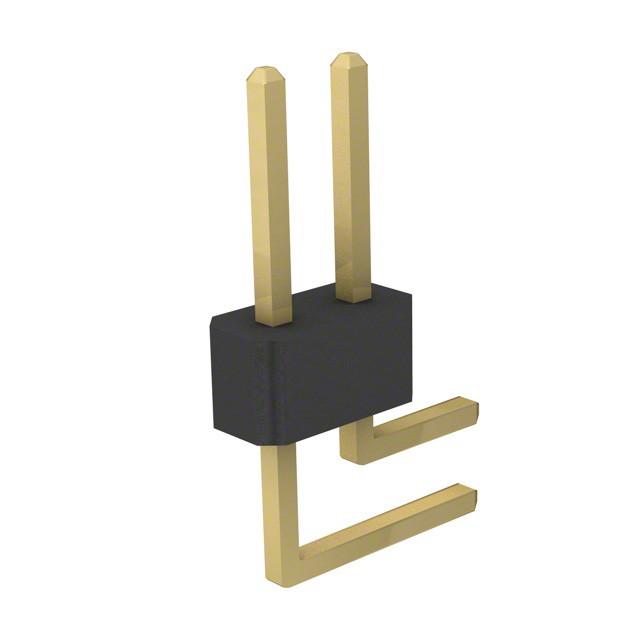

CONN HEADER R/A 2POS
| Part | Contact Finish Thickness - Post | Mounting Type | Contact Finish - Post | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Connector Type | Contact Shape | Insulation Height | Insulation Height | Style | Insulation Color | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post | Fastening Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Material | Contact Length - Mating | Contact Length - Mating | Current Rating (Amps) | Termination | Contact Type | Contact Material | Contact Finish - Mating | Number of Positions Loaded | Number of Rows [custom] | Overall Contact Length [x] | Overall Contact Length [x] | Number of Rows | Overall Contact Length | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | Right Angle Through Hole | Gold | Unshrouded | -40 C | 105 ░C | 2 | Header Breakaway | Square | 0.197 " | 5 mm | Board to Board Cable | Black | UL94 V-0 | Flash | 3.05 mm | 0.12 in | Push-Pull | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) | 0.23 in | 5.84 mm | 3 A | Solder | Male Pin | Brass | Gold | All | 2 | ||||||
 Sullins Connector Solutions | Flash | Through Hole | Gold | Unshrouded | -40 C | 105 ░C | 1 | Header Breakaway | Square | 0.098 " | 2.5 mm | Board to Board Cable | Black | UL94 V-0 | Flash | 3.05 mm | 0.12 in | Push-Pull | Polybutylene Terephthalate (PBT) | 0.318 in | 8.08 mm | 3 A | Solder | Male Pin | Brass | Gold | All | 13.63 mm | 0.537 in | 1 | ||||||
 Sullins Connector Solutions | Flash | Right Angle Through Hole | Gold | Unshrouded | -40 C | 105 ░C | 1 | Header Breakaway | Square | 0.098 " | 2.5 mm | Board to Board Cable | Black | UL94 V-0 | Flash | 3.05 mm | 0.12 in | Push-Pull | Polybutylene Terephthalate (PBT) | 0.318 in | 8.08 mm | 3 A | Solder | Male Pin | Brass | Gold | All | 1 | ||||||||
 Sullins Connector Solutions | Flash | Right Angle Through Hole | Gold | Unshrouded | -40 C | 105 ░C | 1 | Header Breakaway | Square | 0.098 " | 2.5 mm | Board to Board Cable | Black | UL94 V-0 | Flash | 8.13 mm | 0.32 in | Push-Pull | Polybutylene Terephthalate (PBT) | 0.23 in | 5.84 mm | 3 A | Solder | Male Pin | Brass | Gold | All | 1 | ||||||||
 Sullins Connector Solutions | Flash | Through Hole | Gold | Unshrouded | -40 C | 105 ░C | 1 | Header Breakaway | Square | 0.098 " | 2.5 mm | Board to Board Cable | Black | UL94 V-0 | Flash | 3.05 mm | 0.12 in | Push-Pull | Polybutylene Terephthalate (PBT) | 0.23 in | 5.84 mm | 3 A | Solder | Male Pin | Brass | Gold | All | 1 | 0.448 in | 11.39 mm | ||||||
 Sullins Connector Solutions | Flash | Through Hole | Gold | Unshrouded | -40 C | 105 ░C | 2 | Header Breakaway | Square | 0.098 " | 2.5 mm | Board to Board Cable | Black | UL94 V-0 | Flash | 5.58 mm | 0.22 in | Push-Pull | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) | 0.318 in | 8.08 mm | 3 A | Solder | Male Pin | Brass | Gold | All | 2 | 0.637 in | 16.17 mm | ||||
 Sullins Connector Solutions | Flash | Through Hole | Gold | Unshrouded | -40 C | 105 ░C | 1 | Header Breakaway | Square | 0.098 " | 2.5 mm | Board to Board Cable | Black | UL94 V-0 | Flash | 8.13 mm | 0.32 in | Push-Pull | Polybutylene Terephthalate (PBT) | 0.23 in | 5.84 mm | 3 A | Solder | Male Pin | Brass | Gold | All | 16.47 mm | 0.648 in | 1 | ||||||
 Sullins Connector Solutions | Flash | Through Hole | Gold | Unshrouded | -40 C | 105 ░C | 2 | Header Breakaway | Square | 0.098 " | 2.5 mm | Board to Board Cable | Black | UL94 V-0 | Flash | 5.84 mm | 0.23 " | Push-Pull | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) | 0.23 in | 5.84 mm | 3 A | Solder | Male Pin | Brass | Gold | All | 2 | 0.558 in | 14.18 mm | ||||
 Sullins Connector Solutions | Flash | Right Angle Through Hole | Gold | Unshrouded | -40 C | 105 ░C | 1 | Header Breakaway | Square | 0.098 " | 2.5 mm | Board to Board Cable | Black | UL94 V-0 | Flash | 5.58 mm | 0.22 in | Push-Pull | Polybutylene Terephthalate (PBT) | 0.23 in | 5.84 mm | 3 A | Solder | Male Pin | Brass | Gold | All | 1 | ||||||||
 Sullins Connector Solutions | Flash | Through Hole | Gold | Unshrouded | -40 C | 105 ░C | 2 | Header Breakaway | Square | 0.098 " | 2.5 mm | Board to Board Cable | Black | UL94 V-0 | Flash | 3.05 mm | 0.12 in | Push-Pull | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) | 0.23 in | 5.84 mm | 3 A | Solder | Male Pin | Brass | Gold | All | 2 | 0.448 in | 11.39 mm |
