1337613 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

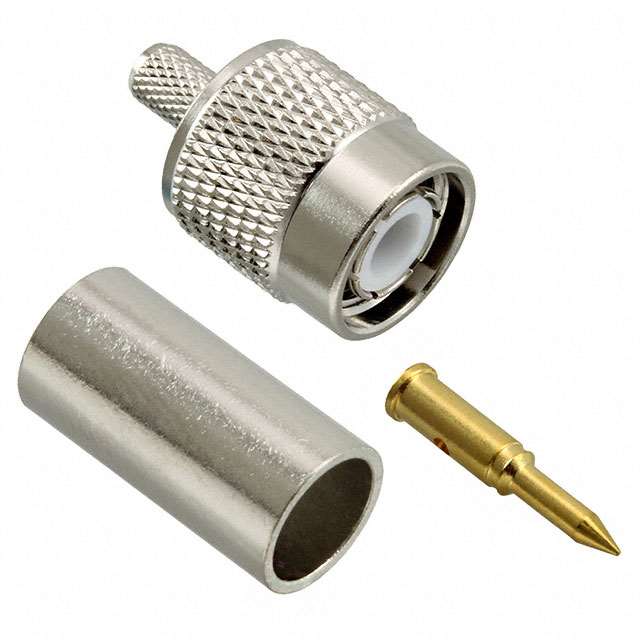

CONN TNC PLUG STR 50 OHM SOLDER
| Part | Mating Cycles | Center Contact Plating | Voltage Rating | Body Finish | Includes | Body Material | Insertion Loss | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Number of Ports | Shield Termination | Housing Color | Connector Type | Connector Style | Mounting Type | Contact Termination | Frequency - Max [Max] | Cable Group | Fastening Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 500 | Gold | 500 V | Nickel | 1 Connector 1 Contact 1 Ferrule | Brass | 0.2 dB | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | 1 | Crimp | Silver | Plug Male Pin | TNC | Free Hanging (In-Line) | Solder | 11 GHz | 141A Belden 9907 RG-58C | Threaded | 50 Ohms |
