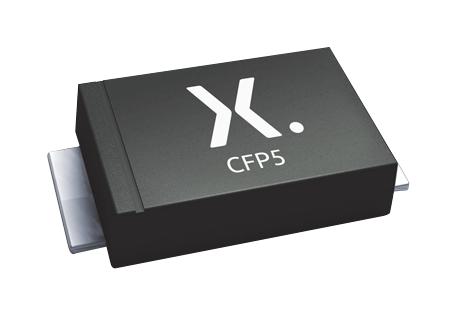

60 V, 5 A low leakage current Trench Schottky barrier rectifier
60 V, 5 A low leakage current Trench Schottky barrier rectifier
60 V, 5 A low leakage current Trench Schottky barrier rectifier
| Part | Mounting Type | Voltage - Forward (Vf) (Max) @ If | Capacitance @ Vr, F | Current - Average Rectified (Io) | Package / Case | Voltage - DC Reverse (Vr) (Max) [Max] | Technology | Operating Temperature - Junction [Max] | Reverse Recovery Time (trr) | Speed | Current - Reverse Leakage @ Vr | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Freescale Semiconductor - NXP | Surface Mount | 690 mV | 560 pF | 5 A | SOD-128 | 60 V | Schottky | 175 °C | 16 ns | 200 mA 500 ns | 1.8 µA | ||
 Freescale Semiconductor - NXP | Surface Mount | 590 mV | 1 A | SOD-128 | 60 V | Schottky | 175 °C | 9 ns | 200 mA 500 ns | 800 nA | Automotive | AEC-Q101 | |
 Freescale Semiconductor - NXP | Surface Mount | 620 mV | 400 pF | 2 A | SOD-128 | 60 V | Schottky | 175 °C | 14 ns | 200 mA 500 ns | 1.2 µA | Automotive | AEC-Q101 |
