039890 Series

Manufacturer: Molex

Catalog

TERM BLK 16P SIDE ENTRY 5MM PCB

Part	Screw Thread	Contact Material - Plating	Voltage	Pitch [x]	Pitch [x]	Screw Material - Plating	Wire Termination	Number of Levels	Torque - Screw	Torque - Screw	Positions Per Level	Clamp Material - Plating	Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Mating Orientation	Current	Housing Material	Features	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material - Plating [custom]	Contact Material - Plating [custom]	Operating Temperature	Number of Levels [custom]	Mating Orientation	Mating Orientation
Molex 0398900316	M3	Copper Alloy - Tin Plated	300 V	5 mm	0.197 in	Copper Alloy - Nickel Plated	Screw - Rising Cage Clamp	1	6 Lb-In	0.68 Nm	16	Copper Alloy - Nickel Plated	Black	-40 °C	105 ░C	Through Hole	Horizontal with Board	13.5 A	Polyamide (PA) Nylon	Interlocking (Side)	30 AWG	16 AWG
Molex 0398900604	M3		150 V	5 mm	0.197 in	Bronze - Nickel Plated	Screw	2			2	Brass - Nickel Plated	Black			Through Hole	Horizontal with Board	17.5 A	Polyamide (PA) Nylon		30 AWG	12 AWG	Tin Plated	Phosphor Bronze	105 C
Molex 0398900909			300 V	5 mm	0.197 in	Bronze - Nickel Plated	Screw		5 Lb-In	0.56 Nm	3	Brass - Nickel Plated	Black			Through Hole	Horizontal with Board	17.5 A	Polyamide (PA) Nylon	Interlocking (Side)	26 AWG	14 AWG	Tin Plated	Phosphor Bronze	110 °C	3
Molex 0398904306	M3	Copper Alloy - Tin Plated	300 V	5 mm	0.197 in	Copper Alloy - Nickel Plated	Screw - Rising Cage Clamp	1	6 Lb-In	0.68 Nm	6	Copper Alloy - Nickel Plated	Green	-40 °C	105 ░C	Through Hole	Horizontal with Board	13.5 A	Polyamide (PA) Nylon	Interlocking (Side)	30 AWG	16 AWG
Molex 0398900405			300 V	5 mm	0.197 in	Copper Nickel Plated	Screw	1			5	Copper - Nickel Plated	Black			Through Hole		17.5 A	Polyamide (PA) Nylon		30 AWG	12 AWG			105 C		35 °	145 °
Molex 0398900506			300 V	5 mm	0.197 in	Bronze - Nickel Plated	Screw	2	5 Lb-In	0.56 Nm	3	Brass - Nickel Plated	Black			Through Hole	Horizontal with Board	13.5 A	Polyamide (PA) Nylon	Interlocking (Side)	26 AWG	14 AWG	Tin Plated	Phosphor Bronze	110 °C
Molex 0398904305	M3	Copper Alloy - Tin Plated	300 V	5 mm	0.197 in	Copper Alloy - Nickel Plated	Screw - Rising Cage Clamp	1	6 Lb-In	0.68 Nm	5	Copper Alloy - Nickel Plated	Green	-40 °C	105 ░C	Through Hole	Horizontal with Board	13.5 A	Polyamide (PA) Nylon	Interlocking (Side)	30 AWG	16 AWG
Molex 0398904311	M3	Copper Alloy - Tin Plated	300 V	5 mm	0.197 in	Copper Alloy - Nickel Plated	Screw - Rising Cage Clamp	1	6 Lb-In	0.68 Nm	11	Copper Alloy - Nickel Plated	Green	-40 °C	105 ░C	Through Hole	Horizontal with Board	13.5 A	Polyamide (PA) Nylon	Interlocking (Side)	30 AWG	16 AWG

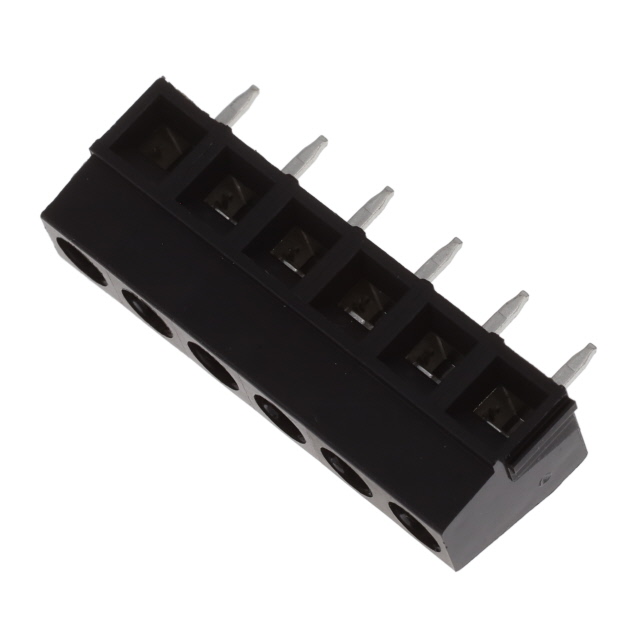

Molex 0398900306	M3	Copper Alloy - Tin Plated	300 V	5 mm	0.197 in	Copper Alloy - Nickel Plated	Screw - Rising Cage Clamp	1	6 Lb-In	0.68 Nm	6	Copper Alloy - Nickel Plated	Black	-40 °C	105 ░C	Through Hole	Horizontal with Board	13.5 A	Polyamide (PA) Nylon	Interlocking (Side)	30 AWG	16 AWG

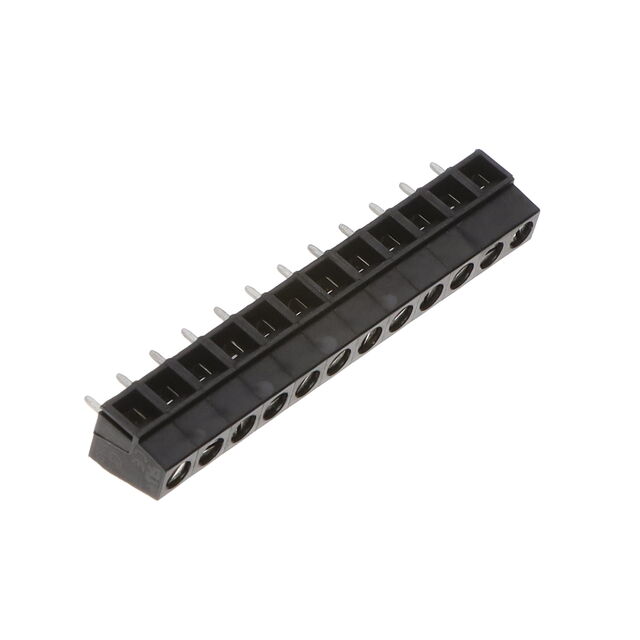

Molex 0398900312	M3	Copper Alloy - Tin Plated	300 V	5 mm	0.197 in	Copper Alloy - Nickel Plated	Screw - Rising Cage Clamp	1	6 Lb-In	0.68 Nm	12	Copper Alloy - Nickel Plated	Black	-40 °C	105 ░C	Through Hole	Horizontal with Board	13.5 A	Polyamide (PA) Nylon	Interlocking (Side)	30 AWG	16 AWG
