RV18 Series

Catalog

RING TONGUE TERMINAL, M4, #8, 18 AWG, HIGHLAND SERIES, RED

Part	Material - Insulation	Insulation Diameter	Insulation Diameter	Color	Width - Outer Edges	Width - Outer Edges	Length - Overall [x]	Length - Overall [x]	Insulation	Contact Finish	Mounting Type	Contact Material	Termination	Features	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Thickness	Thickness	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]

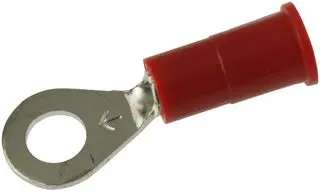

3M Electronic Specialty RV18-8Q	Vinyl	0.145 in	3.68 mm	Red	7.87 mm	0.31 in	0.93 in	23.62 mm	Insulated	Tin	Free Hanging (In-Line)	Copper ETP	Crimp	Butted Seam	22 AWG	17.5 AWG	Circular	0.76 mm	0.03 in	8 Stud
3M Electronic Specialty RV18-10C	Vinyl	0.145 in	3.68 mm	Red	7.87 mm	0.31 in	0.93 in	23.62 mm	Insulated	Tin	Free Hanging (In-Line)	Copper ETP	Crimp	Butted Seam	22 AWG	17.5 AWG	Circular	0.76 mm	0.03 in	10 Stud
3M Electronic Specialty RV18-14Q	Vinyl	0.145 in	3.68 mm	Red			1.08 in	27.43 mm	Insulated	Tin	Free Hanging (In-Line)	Copper ETP	Crimp	Butted Seam	22 AWG	17.5 AWG	Circular	0.76 mm	0.03 in	0.25 Stud	0.47 in	11.94 mm
3M Electronic Specialty RV18-14C	Vinyl	0.145 in	3.68 mm	Red			1.08 in	27.43 mm	Insulated	Tin	Free Hanging (In-Line)	Copper ETP	Crimp	Butted Seam	22 AWG	17.5 AWG	Circular	0.76 mm	0.03 in	0.25 Stud	0.47 in	11.94 mm
3M Electronic Specialty RV18-6C	Vinyl	0.145 in	3.68 mm	Red			0.8 "	20.32 mm	Insulated	Tin	Free Hanging (In-Line)	Copper ETP	Crimp	Butted Seam	22 AWG	17.5 AWG	Circular	0.76 mm	0.03 in	6 Stud	0.25 "	6.35 mm
3M Electronic Specialty RV18-10Q	Vinyl	0.145 in	3.68 mm	Red	7.87 mm	0.31 in	0.93 in	23.62 mm	Insulated	Tin	Free Hanging (In-Line)	Copper ETP	Crimp	Butted Seam	22 AWG	17.5 AWG	Circular	0.76 mm	0.03 in	10 Stud
3M Electronic Specialty RV18-10L	Vinyl	0.145 in	3.68 mm	Red	7.87 mm	0.31 in	0.93 in	23.62 mm	Insulated	Tin	Free Hanging (In-Line)	Copper ETP	Crimp	Butted Seam	22 AWG	17.5 AWG	Circular	0.76 mm	0.03 in	10 Stud
3M Electronic Specialty RV18-8C	Vinyl	0.145 in	3.68 mm	Red	7.87 mm	0.31 in	0.93 in	23.62 mm	Insulated	Tin	Free Hanging (In-Line)	Copper ETP	Crimp	Butted Seam	22 AWG	17.5 AWG	Circular	0.76 mm	0.03 in	8 Stud
