MS3102A14 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K
ER 1C 1#16S SKT RECP
| Part | Shielding | Insert Material | Contact Material | Contact Finish - Mating | Shell Finish | Mounting Feature | Cable Opening | Applications | Connector Type | Color | Number of Positions | Fastening Type | Qualification | Termination | Shell Size - Insert | Shell Material | Orientation | Primary Material | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Grade | Shell Size - Insert (Maximum) | Shell Size - Insert (Minimum) | Ingress Protection | Current Rating | Voltage Rating (DC) | Voltage Rating (AC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Aerospace Operations | ||||||||||||||||||||||||||||
 Amphenol Aerospace Operations | Unshielded | Neoprene | Copper Alloy | Silver | Cadmium Olive Drab Chromate | Flange | 0.75 in | Marine Military | Male Pins Receptacle | Olive Drab | 6 | Threaded | MIL-5015 | Solder Cup | 14S-6 | Aluminum Alloy | N (Normal) | Metal | 125 °C | -55 °C | Panel Mount | |||||||
 Amphenol Aerospace Operations | ||||||||||||||||||||||||||||
 Amphenol Aerospace Operations | Unshielded | Neoprene | Copper Alloy | Silver | Cadmium Olive Drab Chromate | Flange | Marine Military | Male Pins Receptacle | Olive Drab | 1 | Threaded | MIL-DTL-5015 | Solder Cup | 14S-4 | Aluminum Alloy | N (Normal) | Metal | 125 °C | -55 °C | Panel Mount | Military | 4 S | 14 S | Environment Resistant | 13 A | 1250 VDC | 900 VAC | |
Amphenol Aerospace Operations | Unshielded | Neoprene | Copper Alloy | Silver | Cadmium Olive Drab Chromate | Flange | 0.75 in | Marine Military | Male Pins Receptacle | Olive Drab | 4 | Threaded | MIL-5015 | Solder Cup | 14S-2 | Aluminum Alloy | X | Metal | 125 °C | -55 °C | Panel Mount | |||||||
 Amphenol Aerospace Operations | Unshielded | Neoprene | Copper Alloy | Silver | Cadmium Olive Drab Chromate | Flange | 0.75 in | Marine Military | Male Pins Receptacle | Olive Drab | 4 | Threaded | MIL-5015 | Solder Cup | 14S-2 | Aluminum Alloy | N (Normal) | Metal | 125 °C | -55 °C | Panel Mount | |||||||
Amphenol Aerospace Operations | ||||||||||||||||||||||||||||
Amphenol Aerospace Operations | ||||||||||||||||||||||||||||
Amphenol Aerospace Operations | ||||||||||||||||||||||||||||

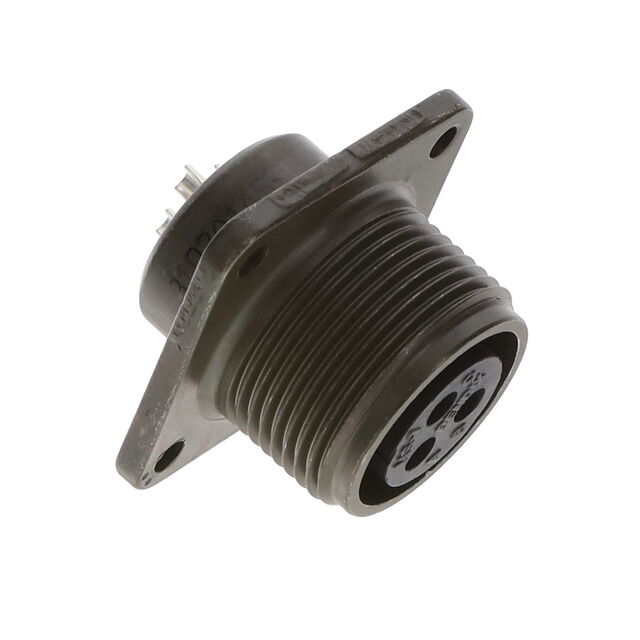

 Amphenol Aerospace Operations | Unshielded | Neoprene | Copper Alloy | Silver | Cadmium Olive Drab Chromate | Flange | 0.75 in | Marine Military | Female Sockets Receptacle | Olive Drab | 3 | Threaded | MIL-5015 | Solder Cup | 14S-1 | Aluminum Alloy | N (Normal) | Metal | 125 °C | -55 °C | Panel Mount |
