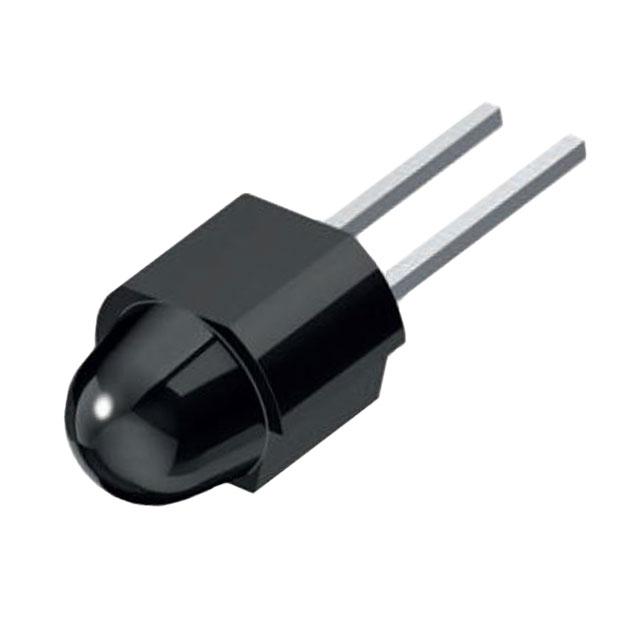

SFH4543 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K
EMITTER IR 940NM 100MA RADIAL
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Forward (Vf) (Typ) | Wavelength | Mounting Type | Viewing Angle | Orientation | Package / Case | Current - DC Forward (If) (Max) [Max] | Radiant Intensity (Ie) Min @ If | Type | Radiant Intensity (Ie) Min @ If [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 85 C | -40 ¯C | 1.5 V | 940 nm | Through Hole | 20 ° | Top View | Radial | 100 mA | 63 mW/sr | Infrared (IR) | |
 ams-OSRAM USA INC. | 85 C | -40 ¯C | 1.5 V | 950 nm | Through Hole | 20 ° | Top View | Radial | 100 mA | Infrared (IR) | 160 mW/sr |
