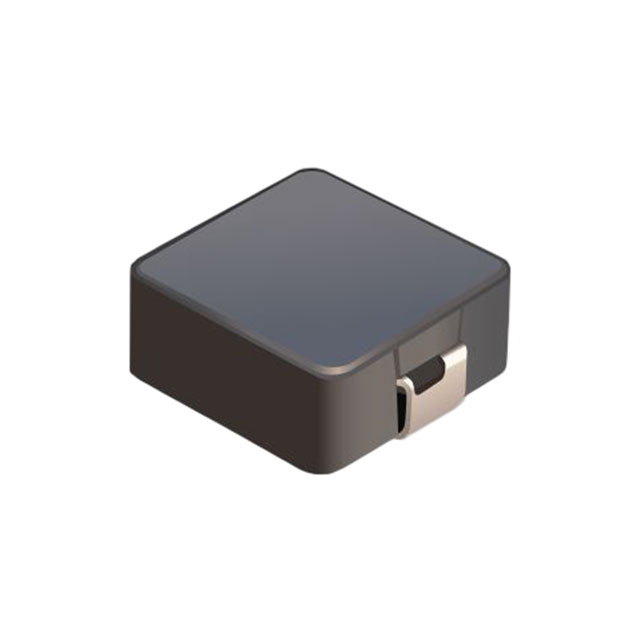

SRP1038AA Series
Manufacturer: Bourns Inc.
Beta
⌘K
INDUCTOR POWER SHIELDED WIREWOUND 33UH 20% 100KHZ 20Q-FACTOR METAL ALLOY POWDER 4.4A 0.091OHM DCR AUTOMOTIVE AEC-Q200 T/R
| Part | Package / Case | Ratings | Type | Frequency - Self Resonant | Tolerance | DC Resistance (DCR) [Max] | Current - Saturation (Isat) | Inductance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Shielding | Material - Core | Mounting Type | Inductance Frequency - Test | Current Rating (Amps) | Height - Seated (Max) | Height - Seated (Max) [Max] | Q @ Freq | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Nonstandard | AEC-Q200 | Drum Core Wirewound | 6.5 MHz | 20 % | 91 mOhm | 5.5 A | 33 µH | 0.433 in | 0.394 in | 10 mm | 11 mm | Shielded | Metal | Surface Mount | 100 kHz | 4.4 A | 4 mm | 0.157 in | 20 100 kHz | 155 C | -55 C |
