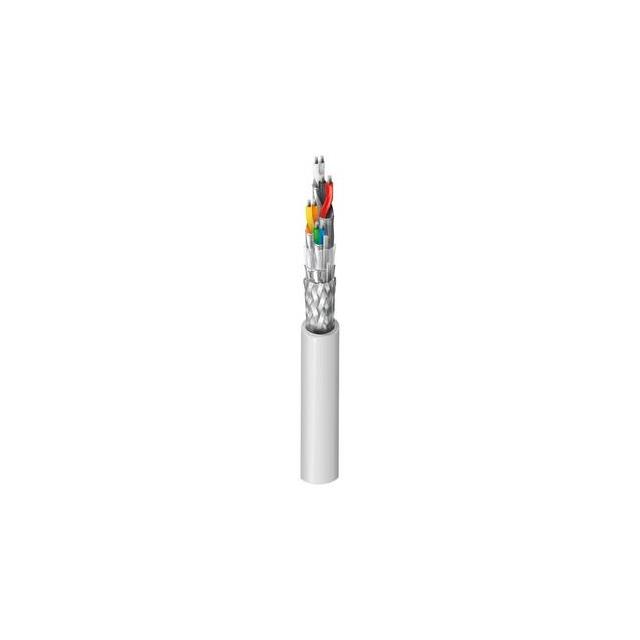

9903 Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 8COND 24/28AWG
| Part | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Length | Length | Ratings | Conductor Material | Conductor Insulation | Shield Type | Number of Conductors | Jacket Color | Cable Type | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 92 % 100 % | Aluminum Copper Tinned | 80 °C | -20 ░C | 32 36 | 7 | 0.25 " | 6.35 mm | Drain Wire | 0.033 in | 0.838 mm | 24 AWG 28 AWG | 304.8 m | 1000 ft | UL Style 2919 | Copper Tinned | Polypropylene (PP) | Braid Foil | 8 | Gray | Multi-Pair | Poly-Vinyl Chloride (PVC) |
