T9AV5 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

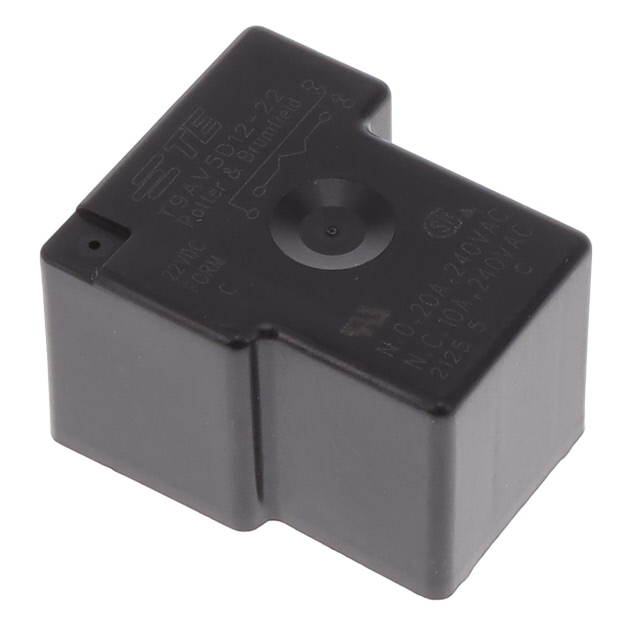

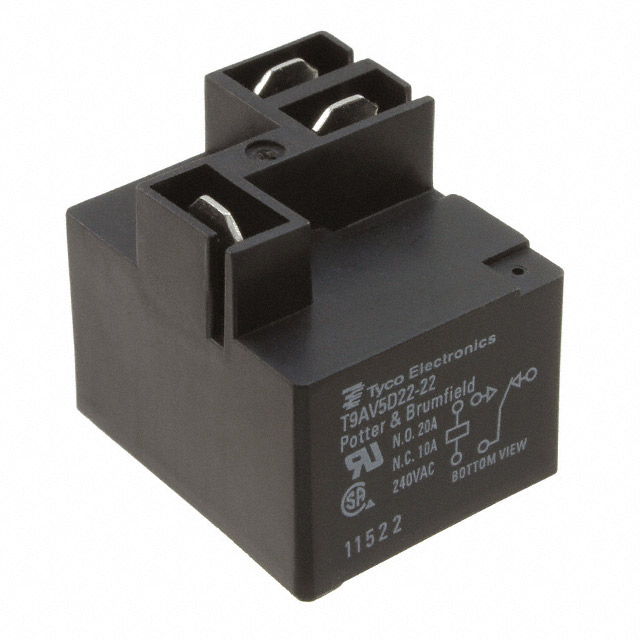

RELAY GEN PURPOSE SPDT 20A 22V
| Part | Coil Resistance | Must Release Voltage | Termination Style | Coil Type | Relay Type | Seal Rating | Operate Time | Release Time | Mounting Type | Coil Voltage | Coil Current | Contact Material | Contact Rating (Current) | Contact Form | Switching Voltage [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Must Operate Voltage | Coil Insulation | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 484 Ohms | 2.2 VDC | PC Pin Quick Connect - 0.250" (6.3mm) | Non Latching | General Purpose | Sealed - Flux Protection | 15 ms | 15 ms | Through Hole | 22 VDC | 45.5 mA | Silver Cadmium Oxide (AgCdO) | 20 A | SPDT (1 Form C) | 277 VAC | -55 C | 85 °C | 16.5 VDC | Class F | 5540 VA |
 TE Connectivity AMP Connectors | 2.2 VDC | PC Pin Quick Connect - 0.250" (6.3mm) | Non Latching | General Purpose | Sealed - Flux Protection | 15 ms | 15 ms | Through Hole | 22 VDC | Silver Cadmium Oxide (AgCdO) | 20 A | SPDT (1 Form C) | 277 VAC | -55 C | 85 °C | 16.5 VDC | Class F | 5540 VA | ||
TE Connectivity AMP Connectors | 2.2 VDC | PC Pin | Non Latching | General Purpose | Sealed - Flux Protection | 15 ms | 15 ms | Through Hole | 22 VDC | Silver Cadmium Oxide (AgCdO) | 20 A | SPDT (1 Form C) | 277 VAC | -55 C | 85 °C | 16.5 VDC | Class F | 5540 VA | ||
 TE Connectivity AMP Connectors | 324 Ohms | 1.8 VDC | PC Pin Quick Connect - 0.250" (6.3mm) | Non Latching | General Purpose | Sealed - Flux Protection | 15 ms | 15 ms | Through Hole | 18 VDC | Silver Cadmium Oxide (AgCdO) | 20 A | SPDT (1 Form C) | 277 VAC | -55 C | 85 °C | 13.5 VDC | Class F | 5540 VA | |
 TE Connectivity AMP Connectors | 576 Ohms | 2.4 VDC | PC Pin Quick Connect - 0.250" (6.3mm) | Non Latching | General Purpose | Sealed - Flux Protection | 15 ms | 15 ms | Through Hole | 24 VDC | 41.7 mA | Silver Cadmium Oxide (AgCdO) | 20 A | SPDT (1 Form C) | 277 VAC | -55 C | 85 °C | 18 VDC | Class F | |
TE Connectivity AMP Connectors | 576 Ohms | 2.4 VDC | PC Pin Quick Connect - 0.250" (6.3mm) | Non Latching | General Purpose | Sealed - Flux Protection | 15 ms | 15 ms | Through Hole | 24 VDC | 41.7 mA | Silver Cadmium Oxide (AgCdO) | 20 A | SPDT (1 Form C) | 277 VAC | -55 C | 85 °C | 18 VDC | Class F | 5540 VA |
 TE Connectivity AMP Connectors | 97 Ohms | 0.9 VDC | PC Pin | Non Latching | General Purpose | Sealed - Flux Protection | 15 ms | 15 ms | Through Hole | 9 VDC | 93 mA | Silver Cadmium Oxide (AgCdO) | 20 A | SPDT (1 Form C) | 277 VAC | -55 C | 85 °C | 6.75 VDC | Class F | 5540 VA |
 TE Connectivity AMP Connectors | 2.2 VDC | PC Pin | Non Latching | General Purpose | Sealed - Flux Protection | 15 ms | 15 ms | Through Hole | 22 VDC | Silver Cadmium Oxide (AgCdO) | 20 A | SPDT (1 Form C) | 277 VAC | -55 C | 85 °C | 16.5 VDC | Class F | 5540 VA |
