C2P0204 Series
Manufacturer: Electroswitch
Beta
⌘K

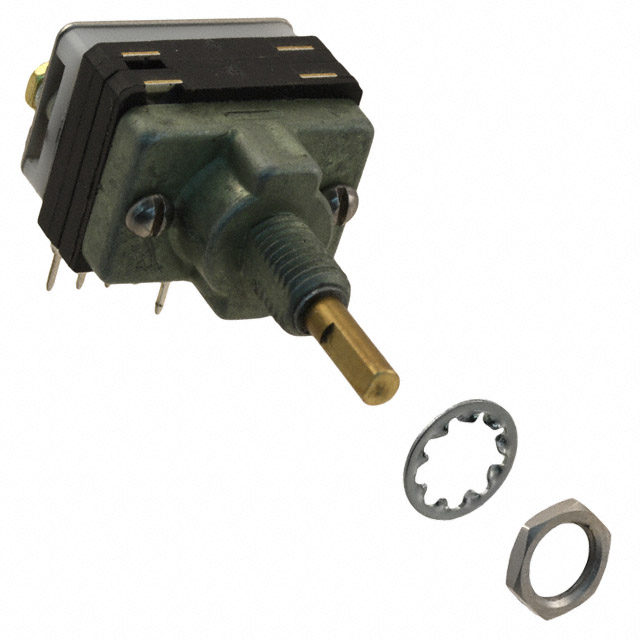

SWITCH ROTARY 2-4POS 100MA 125V
| Part | Panel Cutout Dimensions [diameter] | Angle of Throw | Contact Finish | Actuator Length [x] | Circuit per Deck | Actuator Type | Voltage Rating - AC | Current Rating (Amps) | Number of Positions [Min] | Number of Positions [Max] | Number of Decks [custom] | Voltage Rating - DC | Contact Timing | Depth Behind Panel [z] | Contact Material | Number of Poles per Deck | Index Stops | Mounting Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 6.76 mm | 30 ° | Silver | 9.52 mm | DP4T | Flatted (3.17mm Dia) | 125 V | 100 mA 250 mA | 2 | 4 | 1 | 28 V | Non-Shorting (BBM) | 22.38 mm | Brass | 2 | Adjustable | Panel Mount Right Angle Through Hole | PC Pin |
