737-018 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 18POS 0.156

Part	Termination Rows	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Termination	Contact Material	Number of Positions/Bay/Row [custom]	Color	Pitch	Pitch	Mounting Type	Contact Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Card Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Read Out	Gender	Termination Rows [custom]	Number of Positions/Bay/Row	Number of Rows [custom]

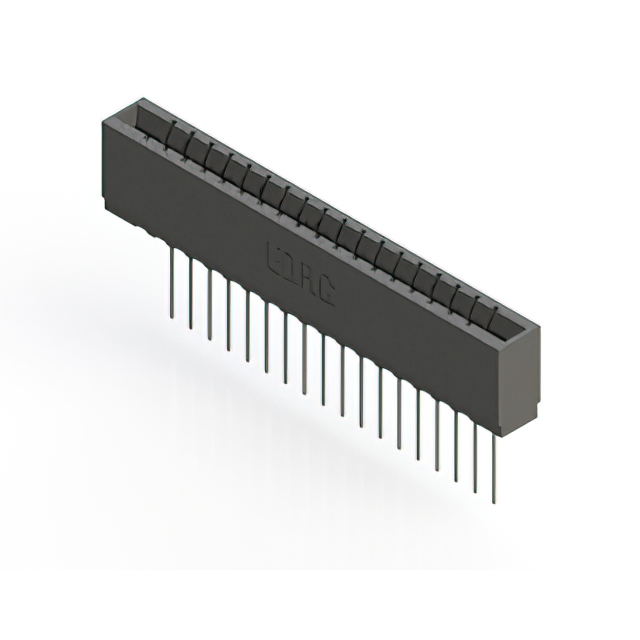

EDAC Inc. 737-018-541-101	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Copper Alloy	18	Black	3.96 mm	0.156 in	Through Hole	Cantilever	Gold	30 Áin	0.76 Ám	Non Specified - Single Edge	1	-40 C	105 ░C	18	Single	Female
EDAC Inc. 737-018-560-206		Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Copper Alloy		Black	3.96 mm	0.156 in	Through Hole	Cantilever Make Before Break	Gold	30 Áin	0.76 Ám	Non Specified - Dual Edge		-40 C	105 ░C	18	Dual	Female	2	9	2

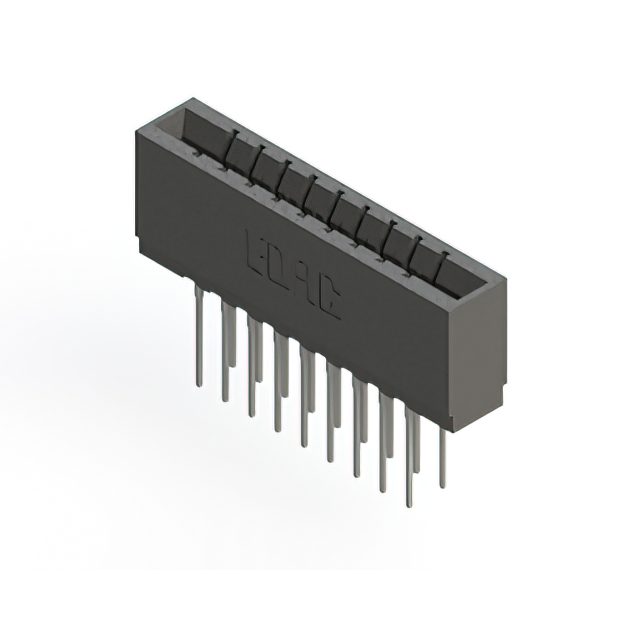

EDAC Inc. 737-018-540-201		Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Copper Alloy		Black	3.96 mm	0.156 in	Through Hole	Cantilever	Gold	30 Áin	0.76 Ám	Non Specified - Dual Edge		-40 C	105 ░C	18	Dual	Female	2	9	2
EDAC Inc. 737-018-541-206		Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Copper Alloy		Black	3.96 mm	0.156 in	Through Hole	Cantilever	Gold	30 Áin	0.76 Ám	Non Specified - Dual Edge		-40 C	105 ░C	18	Dual	Female	2	9	2
EDAC Inc. 737-018-541-201		Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Copper Alloy		Black	3.96 mm	0.156 in	Through Hole	Cantilever	Gold	30 Áin	0.76 Ám	Non Specified - Dual Edge		-40 C	105 ░C	18	Dual	Female	2	9	2
EDAC Inc. 737-018-540-106	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Copper Alloy	18	Black	3.96 mm	0.156 in	Through Hole	Cantilever	Gold	30 Áin	0.76 Ám	Non Specified - Single Edge	1	-40 C	105 ░C	18	Single	Female

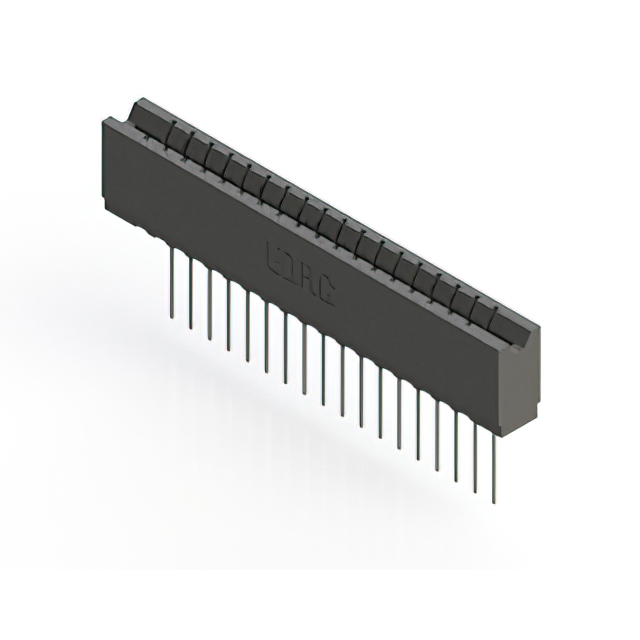

EDAC Inc. 737-018-541-106	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Copper Alloy	18	Black	3.96 mm	0.156 in	Through Hole	Cantilever	Gold	30 Áin	0.76 Ám	Non Specified - Single Edge	1	-40 C	105 ░C	18	Single	Female
EDAC Inc. 737-018-525-106	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Copper Alloy	18	Black	3.96 mm	0.156 in	Through Hole	Cantilever	Gold	30 Áin	0.76 Ám	Non Specified - Single Edge	1	-40 C	105 ░C	18	Single	Female

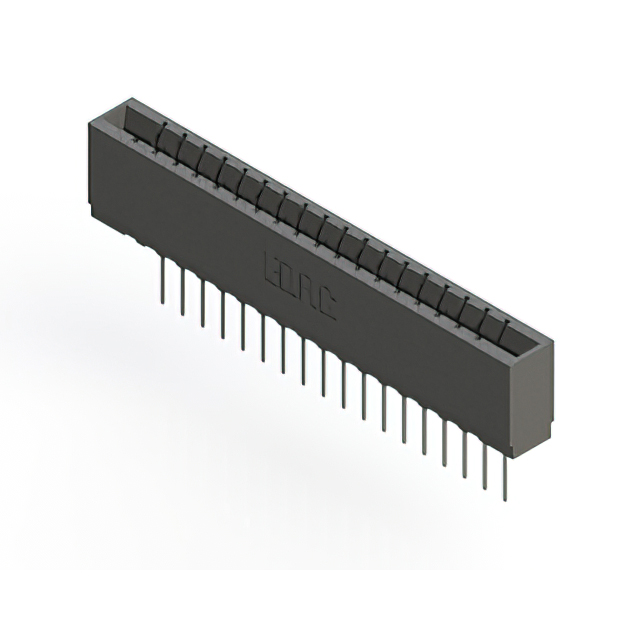

EDAC Inc. 737-018-540-101	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Copper Alloy	18	Black	3.96 mm	0.156 in	Through Hole	Cantilever	Gold	30 Áin	0.76 Ám	Non Specified - Single Edge	1	-40 C	105 ░C	18	Single	Female
EDAC Inc. 737-018-522-101	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Copper Alloy	18	Black	3.96 mm	0.156 in	Through Hole	Cantilever	Gold	30 Áin	0.76 Ám	Non Specified - Single Edge	1	-40 C	105 ░C	18	Single	Female
