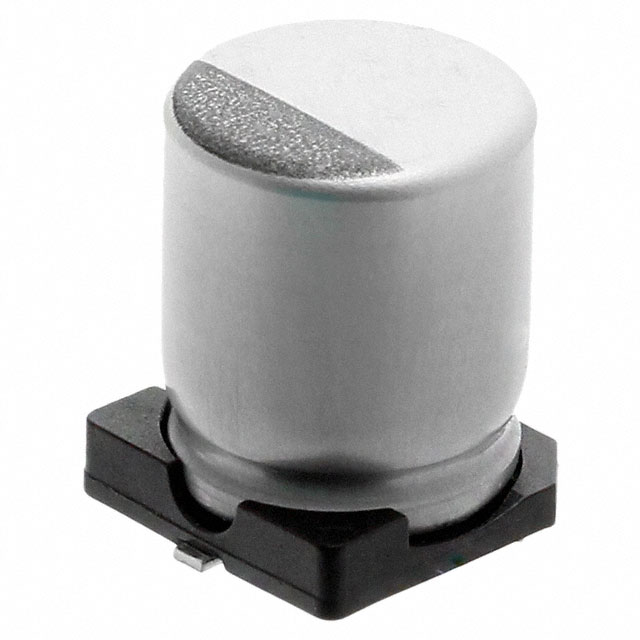

HXB Series

Manufacturer: Chemi-Con

Catalog

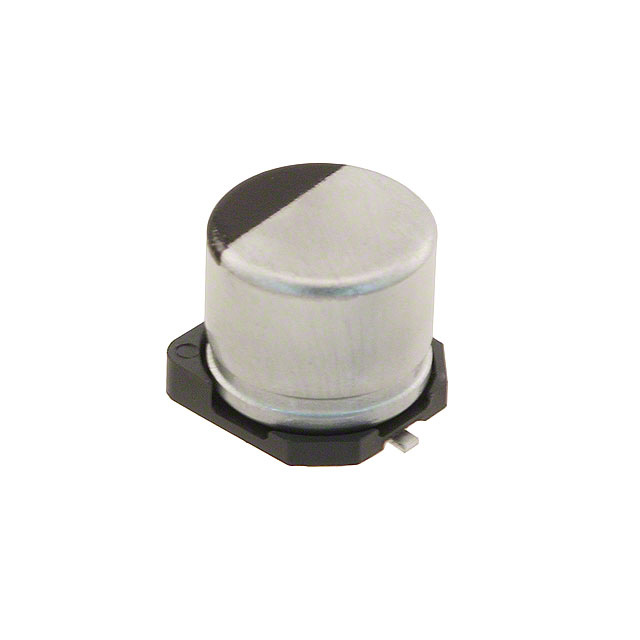

HYBRID ALUMINIUM ELECTROLYTIC CAPACITOR, 68 ΜF, ± 20%, 50 V, RADIAL CAN - SMD, 0.03 OHM

Part	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Tolerance	ESR (Equivalent Series Resistance)	Ripple Current @ High Frequency	Lifetime @ Temp.	Voltage - Rated	Applications	Ratings	Capacitance	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con HHXB500ARA680MHA0G	8.3 mm	8.3 mm	0.327 in	0.327 in	Hybrid	0.315 in	8 mm	-55 C	105 ░C	Radial Can - SMD	20 %	30 mOhms	1.8 A	5000 Hrs	50 VDC	Automotive	AEC-Q200	68 µF	Surface Mount	10.3 mm	0.406 in
Chemi-Con HHXB250ARA101MF80G	6.6 mm	6.6 mm	0.26 in	0.26 in	Hybrid	0.248 "	6.3 mm	-55 C	105 ░C	Radial Can - SMD	20 %	30 mOhms	2 A	5000 Hrs	25 VDC	Automotive	AEC-Q200	100 µF	Surface Mount	8 mm	0.315 in
Chemi-Con HHXB630ARA220MF80G	6.6 mm	6.6 mm	0.26 in	0.26 in	Hybrid	0.248 "	6.3 mm	-55 C	105 ░C	Radial Can - SMD	20 %	80 mOhm	1.5 A	5000 Hrs	63 V	Automotive	AEC-Q200	22 µF	Surface Mount	8 mm	0.315 in
Chemi-Con HHXB160ARA151MF80G	6.6 mm	6.6 mm	0.26 in	0.26 in	Hybrid	0.248 "	6.3 mm	-55 C	105 ░C	Radial Can - SMD	20 %	27 mOhms	2.2 A	5000 Hrs	16 V	Automotive	AEC-Q200	150 µF	Surface Mount	8 mm	0.315 in
Chemi-Con HHXB500ARA101MJA0G	10.3 mm	10.3 mm	0.406 "	0.406 in	Hybrid	0.394 in	10 mm	-55 C	105 ░C	Radial Can - SMD	20 %	28 mOhm	2 A	5000 Hrs	50 VDC	Automotive	AEC-Q200	100 µF	Surface Mount	10.3 mm	0.406 in
