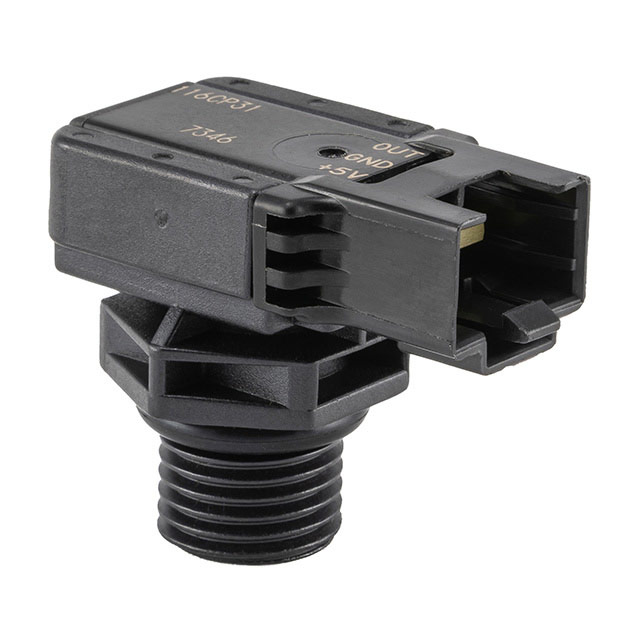

116CP31 Series

Catalog

SENSOR 230PSIS 1/4" 4.5V

Part	Accuracy	Output [Max]	Output [Min]	Pressure Type	Maximum Pressure	Maximum Pressure [Max]	Applications	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Operating Pressure	Operating Pressure	Package / Case	Port Style	Port Size	Port Size	Port Size	Maximum Pressure	Maximum Pressure [Max]
Sensata-Crydom 116CP31-M16S3-50	1.5 %	4.5 V	0.5 V	Sealed Gauge	3171.59 kPa	460 PSI	Board Mount	Analog Voltage	90 °C	2 °C	Connector	230 PSI	1585.79 kPa	Module	Threaded	BSPP Male	0.25 in	0.25 "
Sensata-Crydom 116CP31-M04S2-50	1.5 %	3.5 V	0.5 V	Sealed Gauge	827.37 kPa		Board Mount	Analog Voltage	90 °C	2 °C	Connector	60 PSI	413.69 kPa	Module	Threaded	BSPP Male	0.25 in	0.25 "	120 PSI
Sensata-Crydom 116CP31-M10S3-50	1.5 %	4.5 V	0.5 V	Sealed Gauge		300 PSI	Board Mount	Analog Voltage	90 °C	2 °C	Connector	150 PSI	1034.21 kPa	Module	Threaded	BSPP Male	0.25 in	0.25 "		2068.43 kPa
