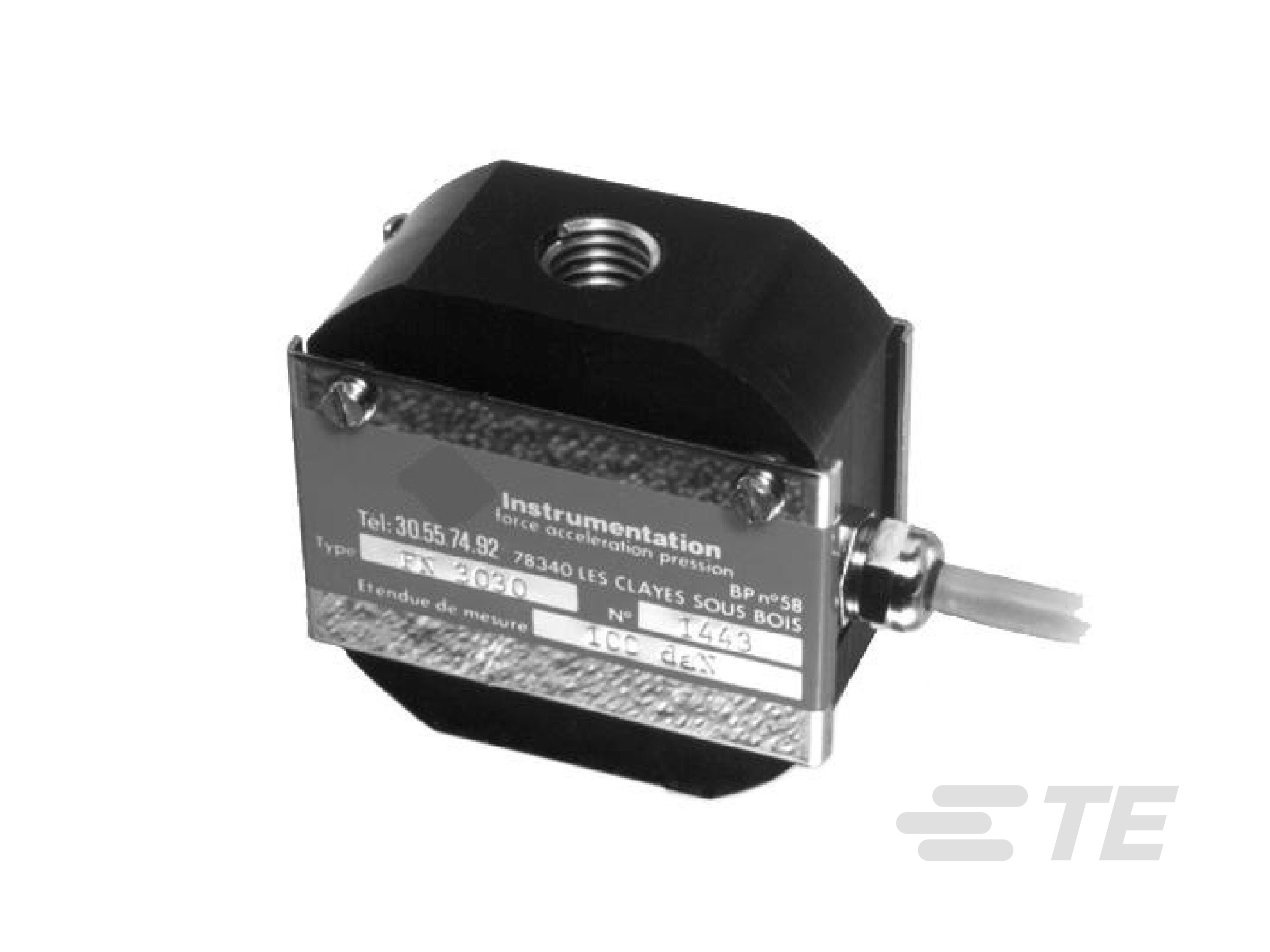

MEAS FN3030 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

FN3030-A2-2KN-/Z04/SC

Part	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Operating Force	Operating Force	Accuracy	Output	Compensated Temperature [Max]	Sensor Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Supply
TE Connectivity AMP Connectors 20016669-00	Diaphragm	80 °C	-20 ░C	Sensor	450 lbs	203.94 kgf	0.1 %	Voltage	60 °C	Load Cell	12 VDC	18 V
TE Connectivity AMP Connectors EFN30-1KN-C20010	Diaphragm	80 °C	-20 ░C	Sensor	225 lbs	101.97 kgf	0.1 %	Voltage	60 °C	Load Cell			10 VDC
TE Connectivity AMP Connectors EFN30-2KN-C20001	Diaphragm	80 °C	-20 ░C	Sensor	450 lbs	203.94 kgf	0.1 %	Voltage	60 °C	Load Cell			10 VDC
TE Connectivity AMP Connectors EFN30-5KN-C20002	Diaphragm	80 °C	-20 ░C	Sensor	1124 lbs	509.86 kgf	0.1 %	Voltage	60 °C	Load Cell			10 VDC
TE Connectivity AMP Connectors EFN30-2KN-C20009	Diaphragm	80 °C	-20 ░C	Sensor	450 lbs	203.94 kgf	0.1 %	Voltage	60 °C	Load Cell			10 VDC
TE Connectivity AMP Connectors EFN30-10KN-C20006	Diaphragm	80 °C	-20 ░C	Sensor	2248 lbs	1019.72 kgf	0.1 %	Voltage	60 °C	Load Cell			10 VDC
TE Connectivity AMP Connectors 20016671-00	Diaphragm	80 °C	-20 ░C	Sensor	2248 lbs	1019.72 kgf	0.1 %	Voltage	60 °C	Load Cell	12 VDC	18 V
TE Connectivity AMP Connectors 20016670-00	Diaphragm	80 °C	-20 ░C	Sensor	1124 lbs	509.86 kgf	0.1 %	Voltage	60 °C	Load Cell	12 VDC	18 V
TE Connectivity AMP Connectors EFN30-50N-C20005	Diaphragm	80 °C	-20 ░C	Sensor	11 lbs	5.1 kgf	0.1 %	Voltage	60 °C	Load Cell			10 VDC
TE Connectivity AMP Connectors EFN30-200N-C20001	Diaphragm	80 °C	-20 ░C	Sensor	45 lbs	20.39 kgf	0.1 %	Voltage	60 °C	Load Cell			10 VDC
