BATTU Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

BATTU-25.4/12.7-A1-4-51MM

Part	Color	Operating Temperature [Max]	Operating Temperature [Min]	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Length	Length	Length	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Material	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shrink Temperature	Features	Length [x]	Length [x]	Length [x]	Shelf Life
TE Connectivity AMP Connectors BATTU-25.4/12.7-A1-4-51MM	Yellow	130 °C	-40 C	Tubing Semi Rigid	25.4 mm	1 in	12.7 mm	0.5 "	0.3 mm	0.012 in	51 mm	2.01 "	0.167 ft	1	2	Polyolefin (PO) Irradiated	35 °C	32 °F	95 °F	110 °C	Adhesive Lined Flame Retardant

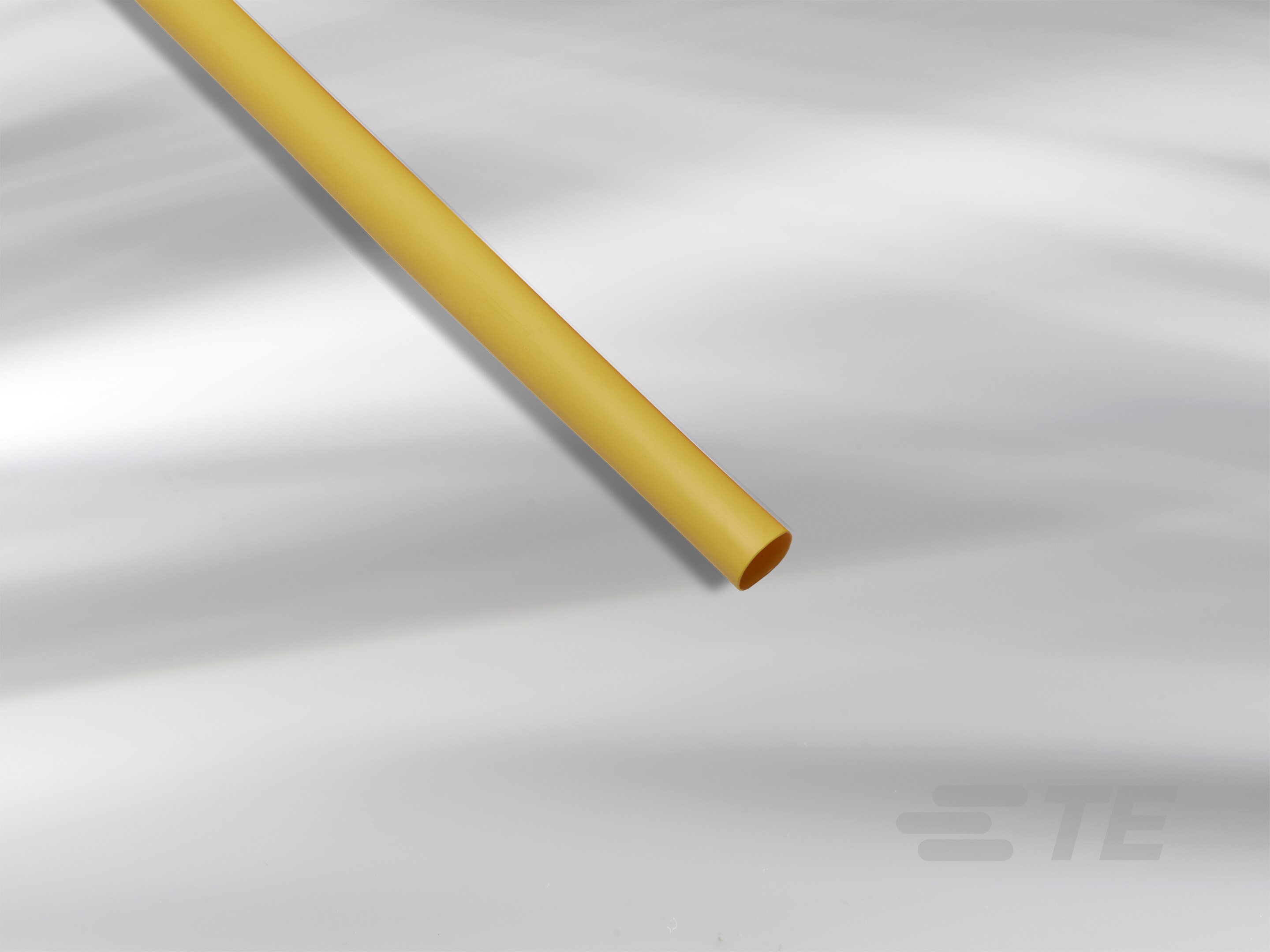

TE Connectivity AMP Connectors BATTU-20.1/8.9-A1-4-39MM	Yellow	130 °C	-40 C	Tubing Semi Rigid	20.07 mm	0.79 "	8.89 mm	0.35 in	0.3 mm	0.012 in				1	2	Polyolefin (PO) Irradiated	35 °C	32 °F	95 °F	110 °C	Adhesive Lined Flame Retardant	0.128 '	39 mm	1.54 "
TE Connectivity AMP Connectors BATTU-12.76.1-A1-4-51MM	Yellow	130 °C	-40 C	Tubing Semi Rigid	12.7 mm	0.5 "	6.1 mm	0.24 in	1.09 mm	0.043 in	51 mm	2.01 "	0.167 ft	1	2	Polyolefin (PO) Irradiated	35 °C	32 °F	95 °F	110 °C	Adhesive Lined Flame Retardant
TE Connectivity AMP Connectors BATTU-25.4/12.7-A1-0-STK	Black	130 °C	-40 C	Tubing Semi Rigid	25.4 mm	1 in	12.7 mm	0.5 "	1.91 mm	0.075 in				1	2	Polyolefin (PO) Irradiated	35 °C	32 °F	95 °F	110 °C	Adhesive Lined Flame Retardant	4 ft	1.22 m		36 Months
TE Connectivity AMP Connectors BATTU-25.4/12.7-A1-0-51MM	Black	130 °C	-40 C	Tubing Semi Rigid	25.4 mm	1 in	12.7 mm	0.5 "	1.91 mm	0.075 in	51 mm	2.01 "	0.167 ft	1	2	Polyolefin (PO) Irradiated	35 °C	32 °F	95 °F	110 °C	Adhesive Lined Flame Retardant				36 Months
TE Connectivity AMP Connectors BATTU-25.4/12.7-A1-4-STK	Yellow	130 °C	-40 C	Tubing Semi Rigid	25.4 mm	1 in	12.7 mm	0.5 "	1.91 mm	0.075 in				1	2	Polyolefin (PO) Irradiated	35 °C	32 °F	95 °F	110 °C	Adhesive Lined Flame Retardant	4 ft	1.22 m		36 Months
TE Connectivity AMP Connectors BATTU-25.4/12.7-A1-3-77MM		130 °C	-40 C	Tubing Semi Rigid	25.4 mm	1 in	12.7 mm	0.5 "	0.3 mm	0.012 in				1	2	Polyolefin (PO) Irradiated	35 °C	32 °F	95 °F	110 °C	Adhesive Lined Flame Retardant	0.253 '	77.22 mm	3.04 "
TE Connectivity AMP Connectors BATTU-20.1/8.9-A1-4-64MM	Yellow	130 °C	-40 C	Tubing Semi Rigid	20.07 mm	0.79 "	8.89 mm	0.35 in	0.3 mm	0.012 in	64.01 mm	2.52 in	0.21 ft	1	2	Polyolefin (PO) Irradiated	35 °C	32 °F	95 °F	110 °C	Adhesive Lined Flame Retardant
TE Connectivity AMP Connectors BATTU-25.4/12.7A1-2-102MM	Red	130 °C	-40 C	Tubing Semi Rigid	25.4 mm	1 in	12.7 mm	0.5 "	1.91 mm	0.075 in	102 mm	4.02 in	0.334 ft	1	2	Polyolefin (PO) Irradiated	35 °C	32 °F	95 °F	110 °C	Adhesive Lined Flame Retardant				36 Months
TE Connectivity AMP Connectors BATTU-20.1/8.9-A1-4-51MM	Yellow	130 °C	-40 C	Tubing Semi Rigid	20.07 mm	0.79 "	8.89 mm	0.35 in	0.3 mm	0.012 in	51 mm	2.01 "	0.167 ft	1	2	Polyolefin (PO) Irradiated	35 °C	32 °F	95 °F	110 °C	Adhesive Lined Flame Retardant
