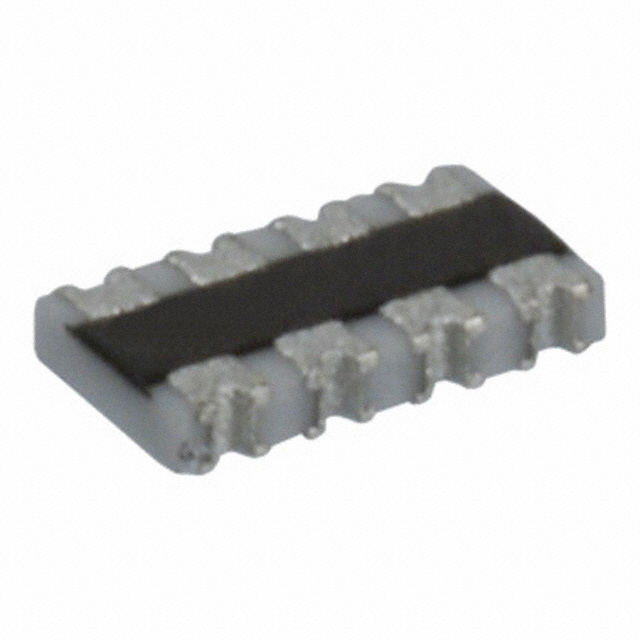

741C083 Series

Catalog

RES ARRAY 4 RES 10 OHM 0804

...

Part	Package / Case	Power Per Element	Number of Resistors	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Pins	Tolerance	Resistance (Ohms) [custom]	Applications	Grade	Height - Seated (Max) [Max]	Height - Seated (Max)	Circuit Type	Qualification	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Resistance (Ohms)	Resistance (Ohms)
CTS Resistor Products 741C083100JP	0804 Concave Long Side Terminals	63 mW	4	-55 C	125 °C	Surface Mount	8	5 %	10 Ohms	DDR SDRAM DRAM MDDR	Automotive	0.02 in	0.5 mm	Isolated	AEC-Q200	200 ppm/°C	0.039 in	1 mm	0.079 in	2 mm
CTS Resistor Products 741C083300JP	0804 Concave Long Side Terminals	63 mW	4	-55 C	125 °C	Surface Mount	8	5 %		DDR SDRAM DRAM MDDR	Automotive	0.02 in	0.5 mm	Isolated	AEC-Q200	200 ppm/°C	0.039 in	1 mm	0.079 in	2 mm	30 Ohms
CTS Resistor Products 741C083154JP	0804 Concave Long Side Terminals	63 mW	4	-55 C	125 °C	Surface Mount	8	5 %		DDR SDRAM DRAM MDDR	Automotive	0.02 in	0.5 mm	Isolated	AEC-Q200	200 ppm/°C	0.039 in	1 mm	0.079 in	2 mm		150k
CTS Resistor Products 741C083512J	0804 Concave Long Side Terminals	63 mW	4	-55 C	125 °C	Surface Mount	8	5 %		DDR SDRAM DRAM MDDR	Automotive	0.02 in	0.5 mm	Isolated	AEC-Q200	200 ppm/°C	0.039 in	1 mm	0.079 in	2 mm	5.1 kOhms
CTS Resistor Products 741C08351R0FP	0804 Concave Long Side Terminals	63 mW	4	-55 C	125 °C	Surface Mount	8	1 %		DDR SDRAM DRAM MDDR	Automotive	0.02 in	0.5 mm	Isolated	AEC-Q200	200 ppm/°C	0.039 in	1 mm	0.079 in	2 mm	51 Ohms
CTS Resistor Products 741C083182JP	0804 Concave Long Side Terminals	63 mW	4	-55 C	125 °C	Surface Mount	8	5 %		DDR SDRAM DRAM MDDR	Automotive	0.02 in	0.5 mm	Isolated	AEC-Q200	200 ppm/°C	0.039 in	1 mm	0.079 in	2 mm		1.8k
CTS Resistor Products 741C083220J	0804 Concave Long Side Terminals	63 mW	4	-55 C	125 °C	Surface Mount	8	5 %		DDR SDRAM DRAM MDDR	Automotive	0.02 in	0.5 mm	Isolated	AEC-Q200	200 ppm/°C	0.039 in	1 mm	0.079 in	2 mm	22 Ohms
CTS Resistor Products 741C083511JP	0804 Concave Long Side Terminals	63 mW	4	-55 C	125 °C	Surface Mount	8	5 %	510 Ohms	DDR SDRAM DRAM MDDR	Automotive	0.02 in	0.5 mm	Isolated	AEC-Q200	200 ppm/°C	0.039 in	1 mm	0.079 in	2 mm
CTS Resistor Products 741C083273J	0804 Concave Long Side Terminals	63 mW	4	-55 C	125 °C	Surface Mount	8	5 %	27 kOhms	DDR SDRAM DRAM MDDR	Automotive	0.02 in	0.5 mm	Isolated	AEC-Q200	200 ppm/°C	0.039 in	1 mm	0.079 in	2 mm
CTS Resistor Products 741C083560JP	0804 Concave Long Side Terminals	63 mW	4	-55 C	125 °C	Surface Mount	8	5 %	56 Ohms	DDR SDRAM DRAM MDDR	Automotive	0.02 in	0.5 mm	Isolated	AEC-Q200	200 ppm/°C	0.039 in	1 mm	0.079 in	2 mm
