CPAD Series
Manufacturer: Cinch Connectivity Solutions AIM-Cambridge
Beta
⌘K
COAX ADAPT BNC TO BNC
| Part | Includes | Center Contact Material | Dielectric Material | Body Material | Body Finish | Center Contact Plating | Conversion Type | Mounting Type | Frequency - Max [Max] | Convert To (Adapter End) | Adapter Type | Impedance | Adapter Series | Fastening Type | Style | Mounting Feature | Center Gender | Convert From (Adapter End) | Fastening Type | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

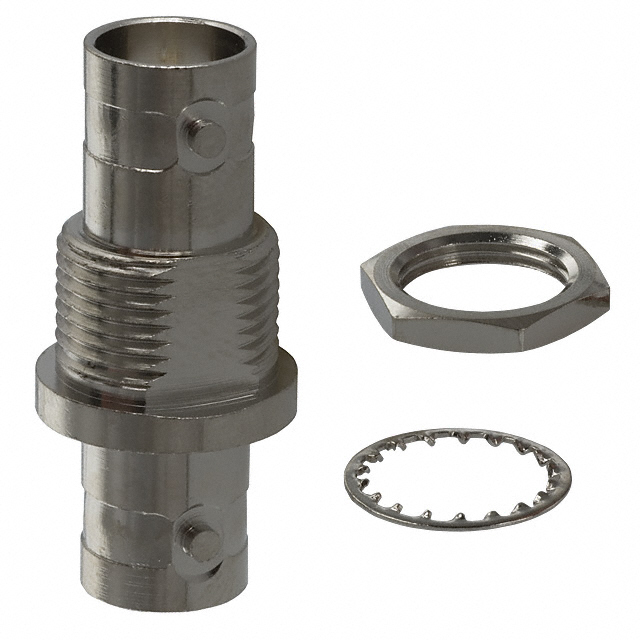

 Cinch Connectivity Solutions AIM-Cambridge | 1 Connector 1 Lockwasher 1 Nut | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Brass | Nickel | Gold | Same Series | Panel Mount | 4 GHz | BNC Jack Female Socket | Jack to Jack | 50 Ohms | BNC to BNC | Bayonet Lock | Straight | Bulkhead | Female to Female | BNC Jack Female Socket | ||

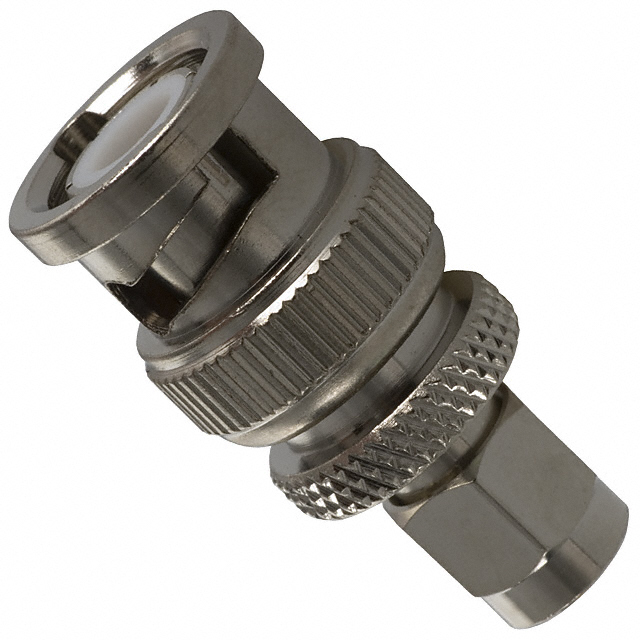

 Cinch Connectivity Solutions AIM-Cambridge | Between Series | Free Hanging (In-Line) | SMA Plug Male Pin | Plug to Plug | BNC to SMA | Bayonet Lock | Straight | Male to Male | BNC Plug Male Pin | Threaded | ||||||||||

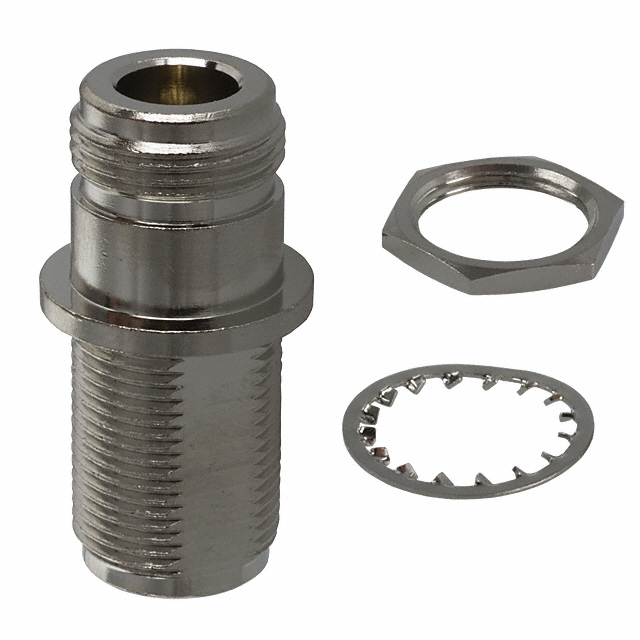

 Cinch Connectivity Solutions AIM-Cambridge | 1 Connector 1 Lockwasher 1 Nut | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Brass | Nickel | Gold | Same Series | Panel Mount | 11 GHz | N Jack Female Socket | Jack to Jack | 50 Ohms | N to N | Straight | Bulkhead | Female to Female | Female Socket N Jack | 500 |
