LHA-11 Series
Manufacturer: Adam Tech
Beta
⌘K

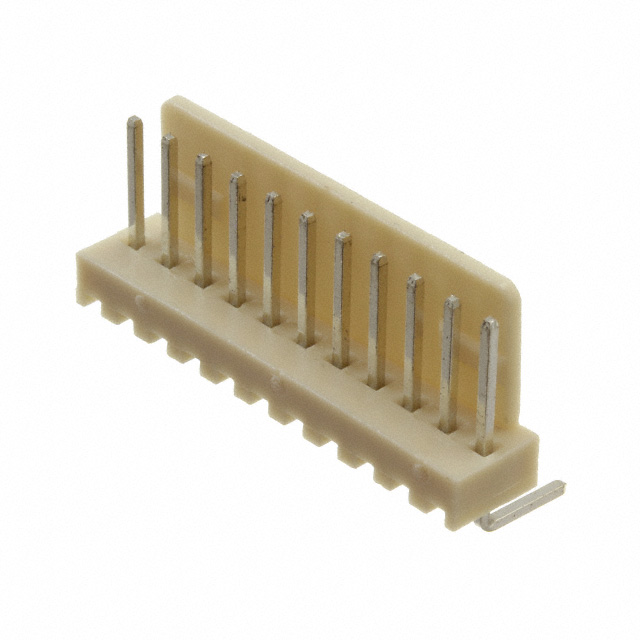

CONN HEADER R/A 11POS 2.54MM
| Part | Contact Finish - Post | Number of Rows | Contact Material | Contact Length - Mating | Contact Length - Mating | Termination | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Current Rating (Amps) | Shrouding | Voltage Rating | Insulation Material | Number of Positions Loaded | Fastening Type | Mounting Type | Insulation Height [z] | Insulation Height [z] | Connector Type | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Length - Post [x] | Contact Length - Post | Material Flammability Rating | Contact Type | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Tin | 1 | Brass | 0.293 in | 7.45 mm | Solder | 11 | 85 °C | -25 °C | Square | 3 A | Shrouded - 1 Wall | 250 VAC | Nylon 6/6 Polyamide (PA66) | All | Friction Lock | Right Angle Through Hole | 0.228 " | 5.8 mm | Header | White | 0.1 " | 2.54 mm | 0.134 " | 3.4 mm | UL94 V-2 | Male Pin | Board to Cable/Wire |
