Schaffner FN3120 Series

Catalog

LINE FILTER 80A CHASSIS MOUNT

Part	Voltage - Rated AC (Phase to Phase)	Configuration	Mounting Type	Approval Agency	Voltage - Rated AC (Phase to Ground/Neutral)	Current	Frequency - Operating	Termination Style	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type
TE Connectivity AMP Connectors FN3120H-80-35	520 V	Single Stage	Chassis Mount	CSA ENEC UR	300 V	80 A	60 Hz	Terminal Block	Regenerative Motor Drive	100 °C	-25 °C	Three Phase (Delta)
TE Connectivity AMP Connectors FN3120H-50-53	520 V	Single Stage	Chassis Mount	CSA ENEC UR	300 V	50 A	60 Hz	Terminal Block	Regenerative Motor Drive	100 °C	-25 °C	Three Phase (Delta)
TE Connectivity AMP Connectors FN3120H-80-35	520 V	Single Stage	Chassis Mount	CSA ENEC UR	300 V	80 A	60 Hz	Terminal Block	Regenerative Motor Drive	100 °C	-25 °C	Three Phase (Delta)

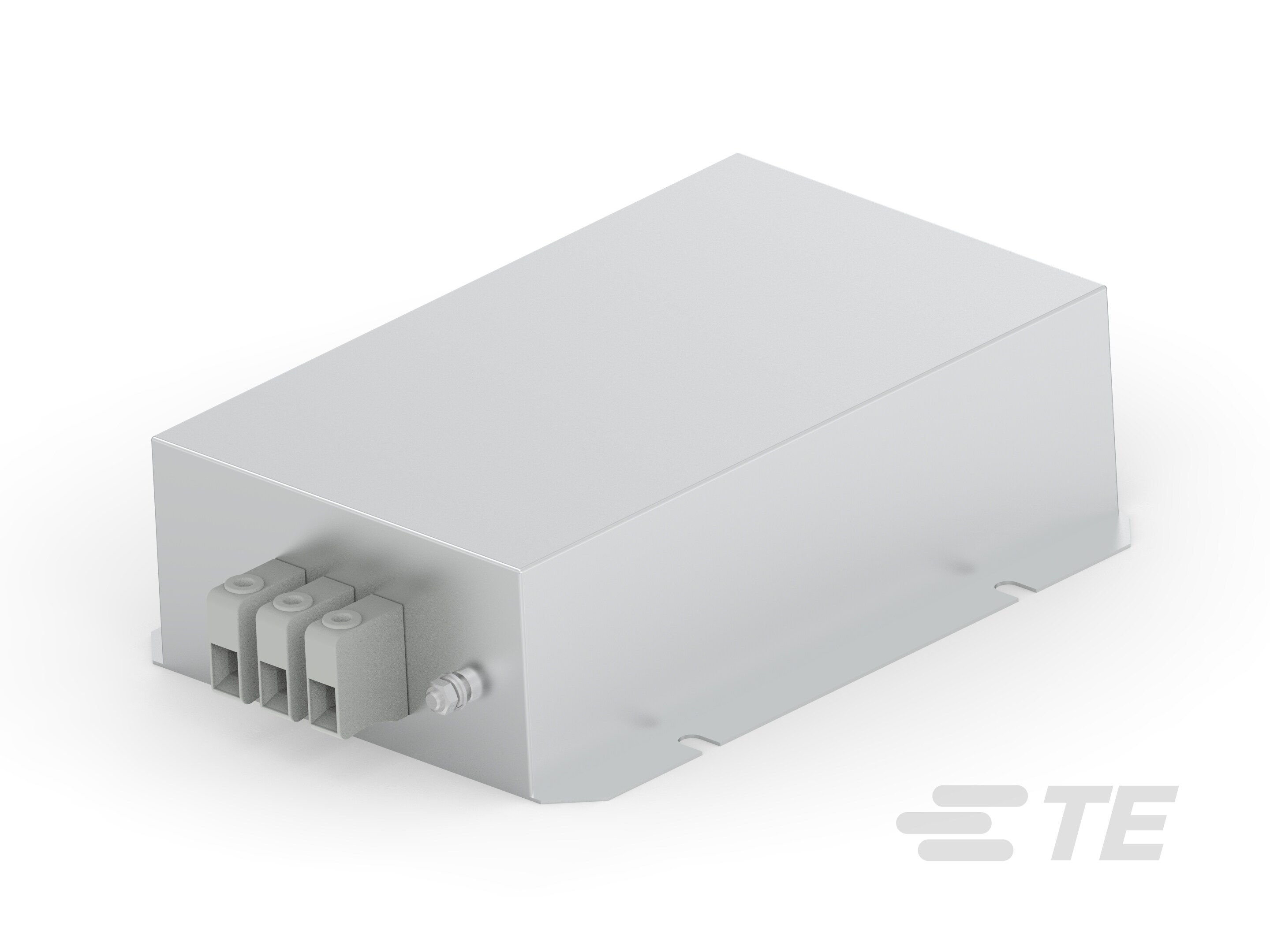

TE Connectivity AMP Connectors FN3120H-25-33	520 V	Single Stage	Chassis Mount	CSA ENEC UR	300 V	25 A	60 Hz	Terminal Block	Regenerative Motor Drive	100 °C	-25 °C	Three Phase (Delta)

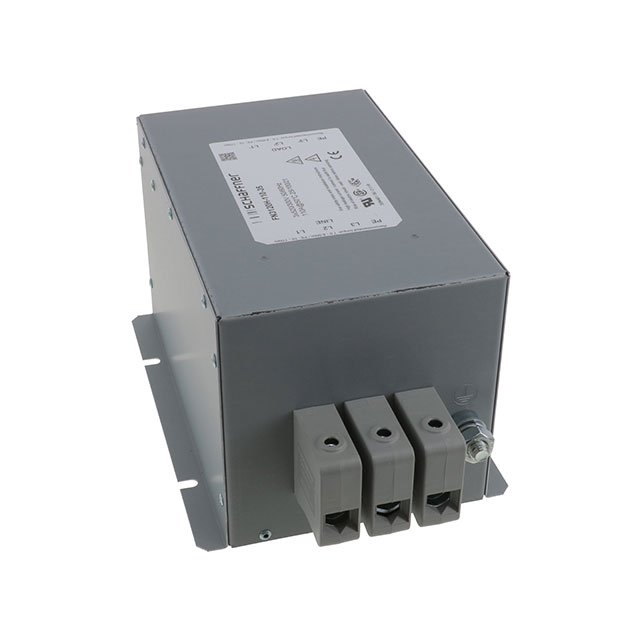

TE Connectivity AMP Connectors FN3120H-110-35	520 V	Single Stage	Chassis Mount	CSA ENEC UR	300 V	110 A	60 Hz	Terminal Block	Regenerative Motor Drive	100 °C	-25 °C	Three Phase (Delta)

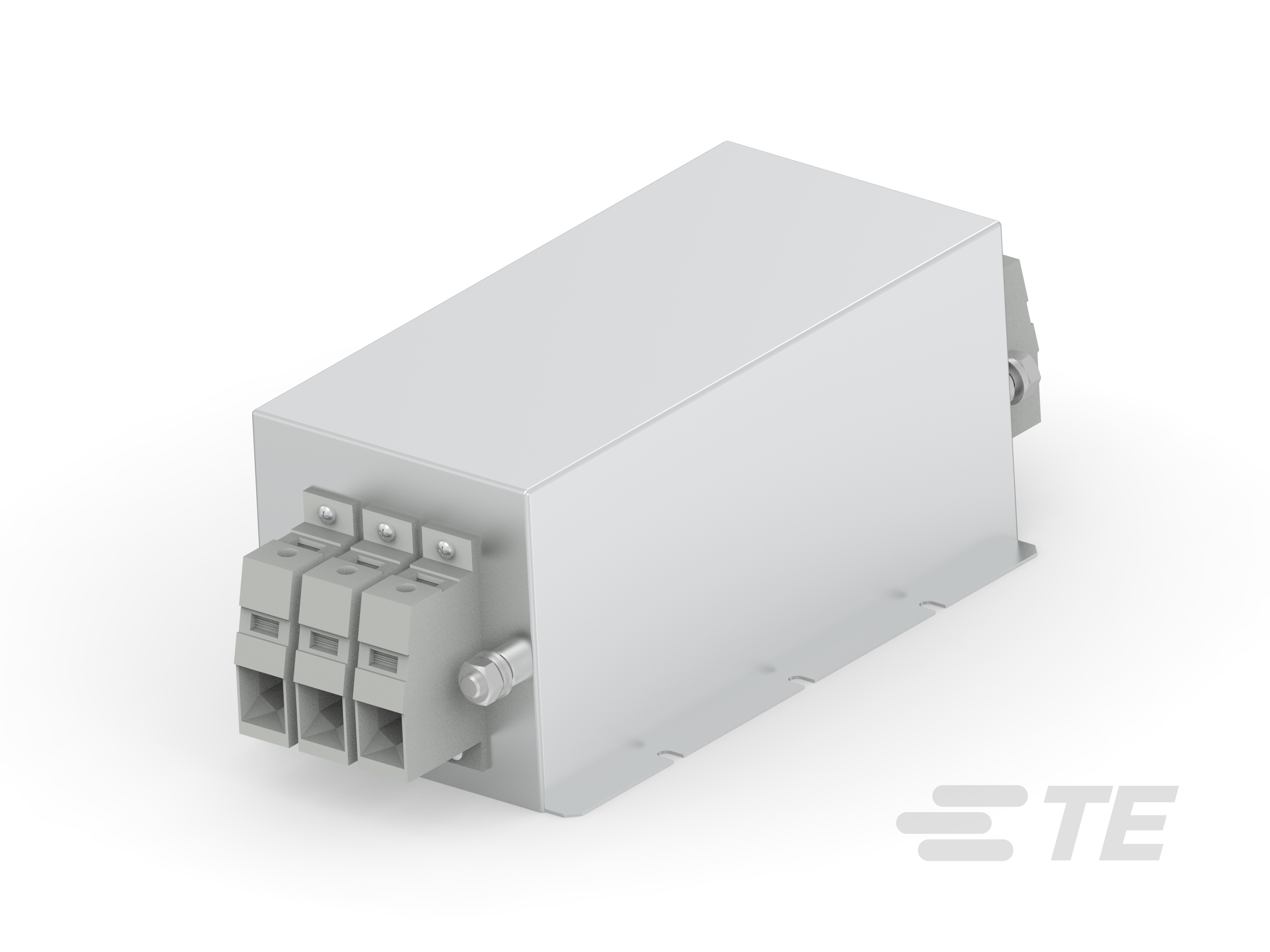

TE Connectivity AMP Connectors FN3120H-230-40	520 V	Single Stage	Chassis Mount	CSA ENEC UR	300 V	230 A	60 Hz	Terminal Block	Regenerative Motor Drive	100 °C	-25 °C	Three Phase (Delta)
TE Connectivity AMP Connectors FN3120H-110-35	520 V	Single Stage	Chassis Mount	CSA ENEC UR	300 V	110 A	60 Hz	Terminal Block	Regenerative Motor Drive	100 °C	-25 °C	Three Phase (Delta)
