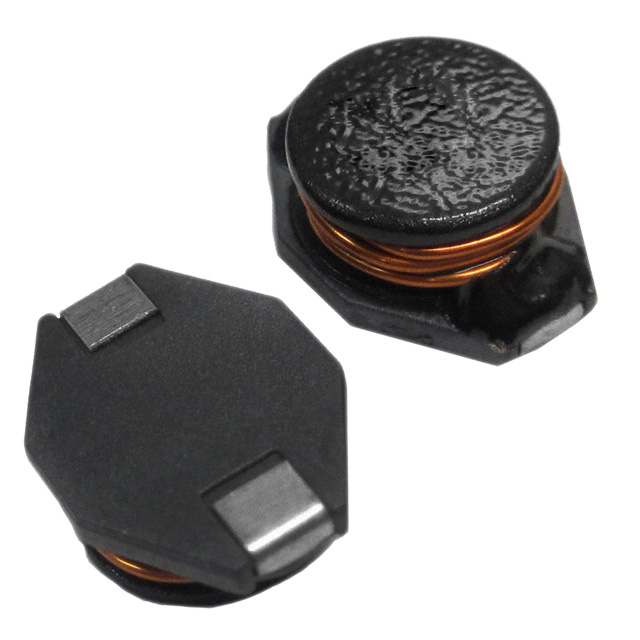

ASPI-T Series

Catalog

POWER INDUCTORS - SMD IND 47.00 UH 1.700 A 140.00 MOHM

Part	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Type	Mounting Type	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Package / Case	Current Rating (Amps)	Material - Core	Frequency - Self Resonant	Current - Saturation (Isat)	DC Resistance (DCR)
Abracon LLC ASPI-0804T-470M-T	20 %	85 °C	-40 C	47 µH	Drum Core Wirewound	Surface Mount	140 mOhm	100 kHz	9.4 mm	0.37 in	12.95 mm	0.51 "	5.21 mm	0.205 in	Unshielded	Nonstandard	1.6 A	Ferrite
Abracon LLC ASPI-0804T-681M-T	20 %	85 °C	-40 C	680 µH	Drum Core Wirewound	Surface Mount	2.02 Ohm	100 kHz	9.4 mm	0.37 in	12.95 mm	0.51 "	5.21 mm	0.205 in	Unshielded	Nonstandard	400 mA	Ferrite
Abracon LLC ASPI-0804T-471M-T	20 %	85 °C	-40 C	470 µH	Drum Core Wirewound	Surface Mount	1.27 Ohm	100 kHz	9.4 mm	0.37 in	12.95 mm	0.51 "	5.21 mm	0.205 in	Unshielded	Nonstandard	0.5 A	Ferrite
Abracon LLC ASPI-6045T-1R0N-T	30 %	125 °C	-40 C	1 µH	Wirewound	Surface Mount		100 kHz	0.236 "	6 mm	0.236 in	6 mm	4.5 mm	0.177 in	Shielded	Nonstandard	5.14 A	Ferrite	100 MHz	9.85 A	14 mOhm
