1PGSMC Series

Manufacturer: Taiwan Semiconductor Corporation

Catalog

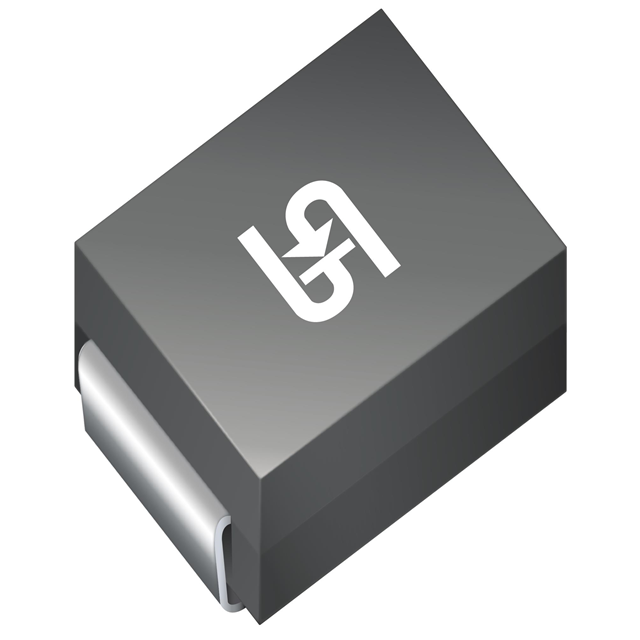

DIODE ZENER 11V 5W DO214AB

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Reverse Leakage @ Vr	Power - Max [Max]	Impedance (Max) (Zzt) [Max]	Supplier Device Package	Voltage - Zener (Nom) (Vz)	Tolerance	Package / Case	Qualification	Grade	Impedance (Max) (Zzt)
Taiwan Semiconductor Corporation 1PGSMC5348HR7G	Surface Mount	175 °C	-55 °C	5 µA	5 W	3 Ohms	DO-214AB (SMC)	11 V	5 %	DO-214AB SMC
Taiwan Semiconductor Corporation 1PGSMC5363 R7G	Surface Mount	175 °C	-55 °C	500 nA	5 W	8 Ohms	DO-214AB (SMC)	30 V	5 %	DO-214AB SMC
Taiwan Semiconductor Corporation 1PGSMC5369H	Surface Mount	175 °C	-55 °C	500 nA	5 W	27 Ohms	DO-214AB (SMC)	51 V	5 %	DO-214AB SMC	AEC-Q101	Automotive
Taiwan Semiconductor Corporation 1PGSMC5369 R7G	Surface Mount	175 °C	-55 °C	500 nA	5 W	27 Ohms	DO-214AB (SMC)	51 V	5 %	DO-214AB SMC
Taiwan Semiconductor Corporation 1PGSMC5355HR7G	Surface Mount	175 °C	-55 °C	500 nA	5 W	3 Ohms	DO-214AB (SMC)	18 V	5 %	DO-214AB SMC	AEC-Q101	Automotive
Taiwan Semiconductor Corporation 1PGSMC5364 R7G	Surface Mount	175 °C	-55 °C	500 nA	5 W	10 Ohms	DO-214AB (SMC)	33 V	5 %	DO-214AB SMC
Taiwan Semiconductor Corporation 1PGSMC5369HR7G	Surface Mount	175 °C	-55 °C	500 nA	5 W	27 Ohms	DO-214AB (SMC)	51 V	5 %	DO-214AB SMC
Taiwan Semiconductor Corporation 1PGSMC5364H	Surface Mount	175 °C	-55 °C	500 nA	5 W	10 Ohms	DO-214AB (SMC)	33 V	5 %	DO-214AB SMC	AEC-Q101	Automotive
Taiwan Semiconductor Corporation 1PGSMC5360 R7G	Surface Mount	175 °C	-55 °C	500 nA	5 W	4 Ohms	DO-214AB (SMC)	25 V	5 %	DO-214AB SMC
Taiwan Semiconductor Corporation 1PGSMC5361 R7G	Surface Mount	175 °C	-55 °C	500 nA	5 W		DO-214AB (SMC)	27 V	5 %	DO-214AB SMC			5 Ohms
