45134 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

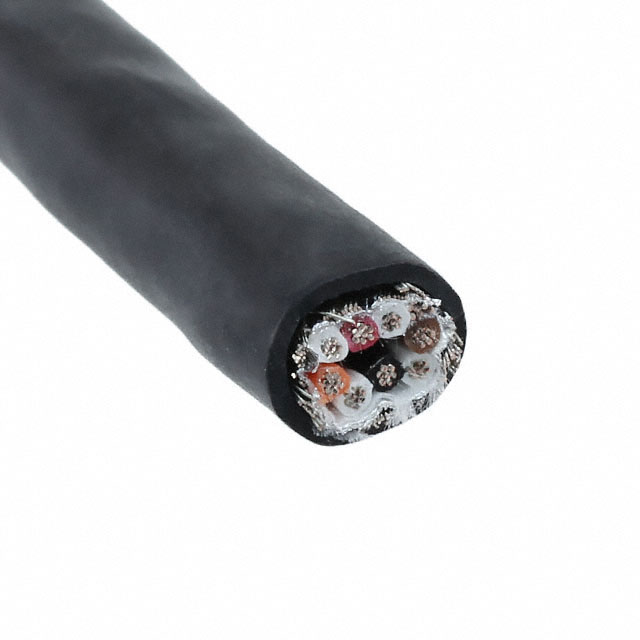

MULTI-PAIR 8COND 18AWG BLK 100'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Features | Jacket Color | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Conductor Material | Conductor Insulation | Conductor Insulation | Length [x] | Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 1.397 mm | 0.055 in | 300 VDC | Biological Compatibility Drain Wire Rip Cord | Black | Thermoplastic Elastomer (TPE) | 11.58 mm | 0.456 in | ISO 10993 | Copper Tinned | TPE | Thermoplastic Elastomer | 100 ft | 30.5 m | 125 °C | -50 °C | Braid Foil | 18 AWG | 16 | 30 AWG | Multi-Pair | 8 |
