R1/4-20 Series

Catalog

MACH SCREW PAN PHILLIPS 1/4"-20

Part	Length - Below Head	Length - Below Head	Length - Overall [x]	Length - Overall [x]	Drive Type	Head Height	Head Height	Head Diameter [diameter]	Head Diameter [diameter]	Features	Thread Size	Screw Head Type	Material	Type	Length - Overall	Length - Below Head	Length - Below Head	Length - Overall	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head [x]

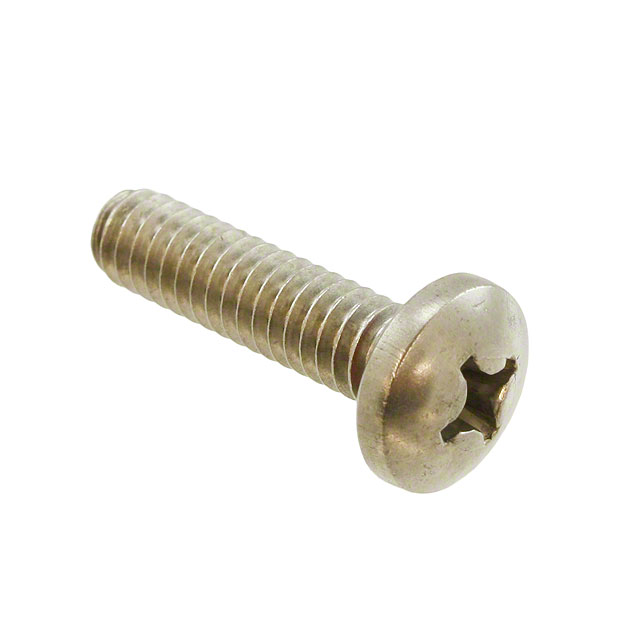

APM Hexseal R1/4-20X1 2701	25.4 mm	1 in	29.85 mm	1.175 "	Phillips	4.45 mm	0.175 "	0.517 in	13.13 mm	Self Sealing	1/4"-20	Pan Head	Stainless Steel	Machine Screw
APM Hexseal R1/4-20X1-1/4 2701	31.75 mm			1.425 "	Phillips	4.45 mm	0.175 "	0.517 in	13.13 mm	Self Sealing	1/4"-20	Pan Head	Stainless Steel	Machine Screw	36.2 mm	1.25 in

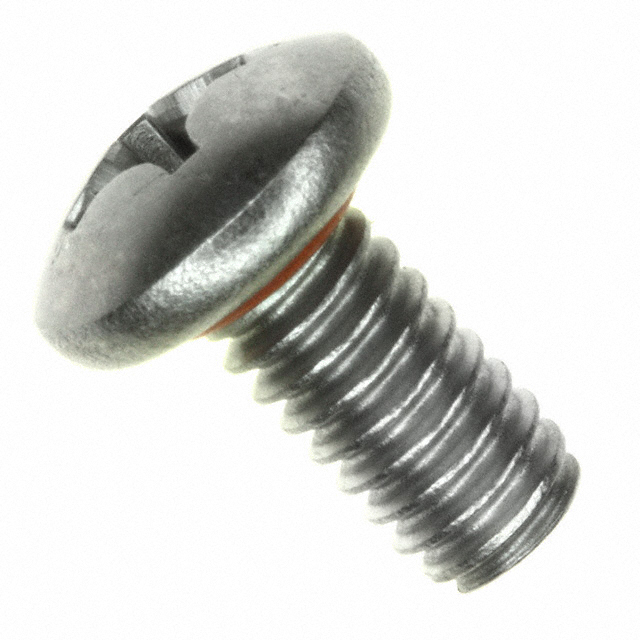

APM Hexseal R1/4-20X1/2 2701	12.7 mm				Phillips	4.45 mm	0.175 "	0.517 in	13.13 mm	Self Sealing	1/4"-20	Pan Head	Stainless Steel	Machine Screw	17.15 mm	0.5 in	0.5 in	0.675 in

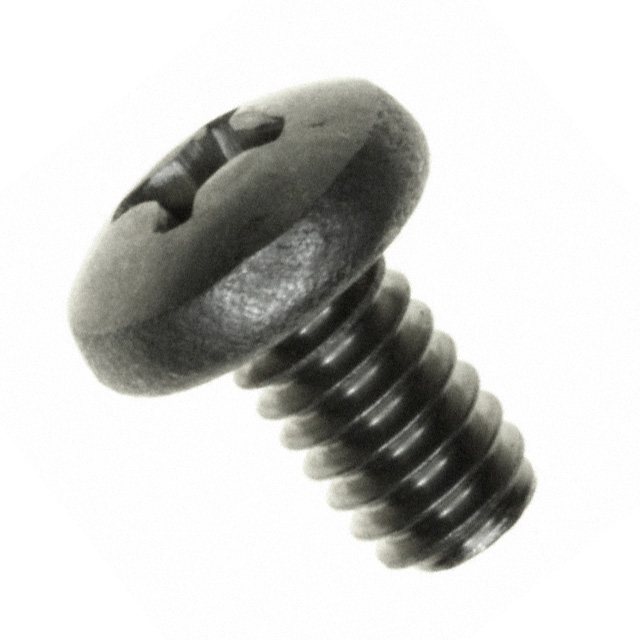

APM Hexseal R1/4-20X7/16 2701	0.4375 "		15.57 mm	0.613 in	Phillips	4.45 mm	0.175 "	0.517 in	13.13 mm	Self Sealing	1/4"-20	Pan Head	Stainless Steel	Machine Screw					0.438 "

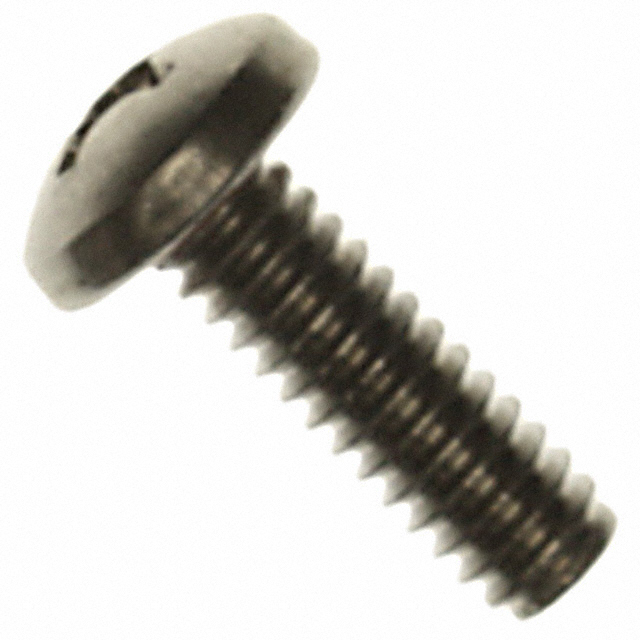

APM Hexseal R1/4-20X3/4 2701			23.5 mm	0.925 in	Phillips	4.45 mm	0.175 "	0.517 in	13.13 mm	Self Sealing	1/4"-20	Pan Head	Stainless Steel	Machine Screw					0.75 in	19.05 mm	0.75 in

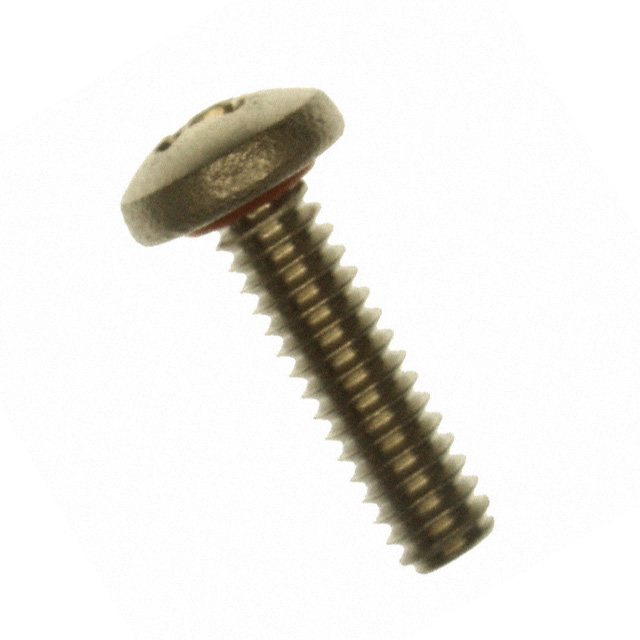

APM Hexseal R1/4-20X7/8 2701	22.23 mm		26.67 mm	1.05 in	Phillips	4.45 mm	0.175 "	0.517 in	13.13 mm	Self Sealing	1/4"-20	Pan Head	Stainless Steel	Machine Screw		0.875 "	0.875 "
APM Hexseal R1/4-20X5/8 2701	0.625 in		20.32 mm	0.8 "	Phillips	4.45 mm	0.175 "	0.517 in	13.13 mm	Self Sealing	1/4"-20	Pan Head	Stainless Steel	Machine Screw		0.625 in	15.88 mm
APM Hexseal R1/4-20X9/16 2701	14.3 mm		26.67 mm	1.05 in	Phillips	4.45 mm	0.175 "	0.517 in	13.13 mm	Self Sealing	1/4"-20	Pan Head	Stainless Steel	Machine Screw		0.563 in	0.5625 in

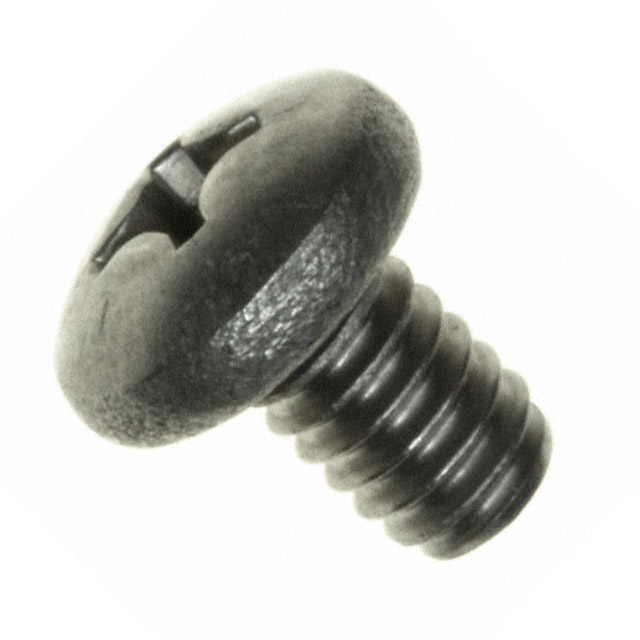

APM Hexseal R1/4-20X3/8 2701	9.53 mm		13.97 mm	0.55 in	Phillips	4.45 mm	0.175 "	0.517 in	13.13 mm	Self Sealing	1/4"-20	Pan Head	Stainless Steel	Machine Screw		0.375 in	0.375 in
