EHHD024 Series

Catalog

DC DC CONVERTER 5V 120W

Part	Applications	Number of Outputs	Features	Voltage - Input (Min) [Min]	Power (Watts)	Mounting Type	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Package / Case	Voltage - Input (Max) [Max]	Type	Current - Output (Max) [Max]	Voltage - Isolation

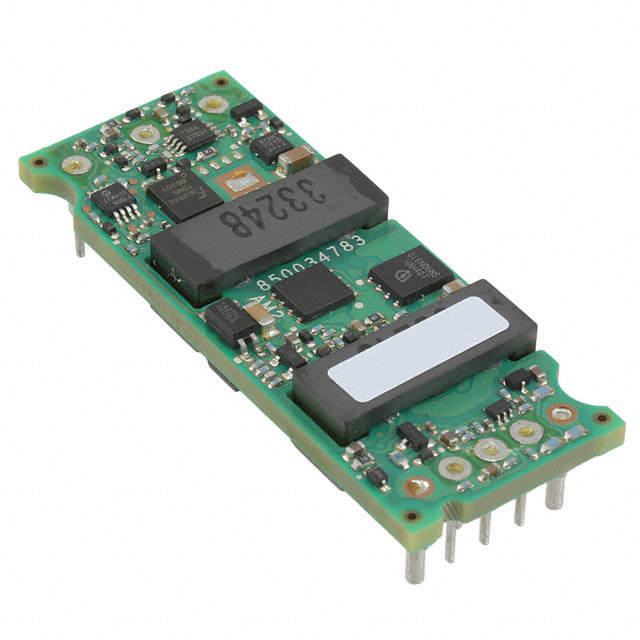

OmniOn Power™ EHHD024A0A41Z	ITE (Commercial)	1	OCP OTP OVP Remote On/Off SCP UVLO	18 V	120 W	Through Hole	5 V	85 °C	-40 C	Active Low Enable	2.3 in	58.4 mm	0.35 in	22.9 mm	8.9 mm	0.9 in	92 %	8-DIP Module 1/8 Brick	75 V	Isolated Module	24 A	2250 VDC
OmniOn Power™ EHHD024A0A41Z	ITE (Commercial)	1	OCP OTP OVP Remote On/Off SCP UVLO	18 V	120 W	Through Hole	5 V	85 °C	-40 C	Active Low Enable	2.3 in	58.4 mm	0.35 in	22.9 mm	8.9 mm	0.9 in	92 %	8-DIP Module 1/8 Brick	75 V	Isolated Module	24 A	2250 VDC
