EML30US24 Series
Manufacturer: XP Power
Beta
⌘K

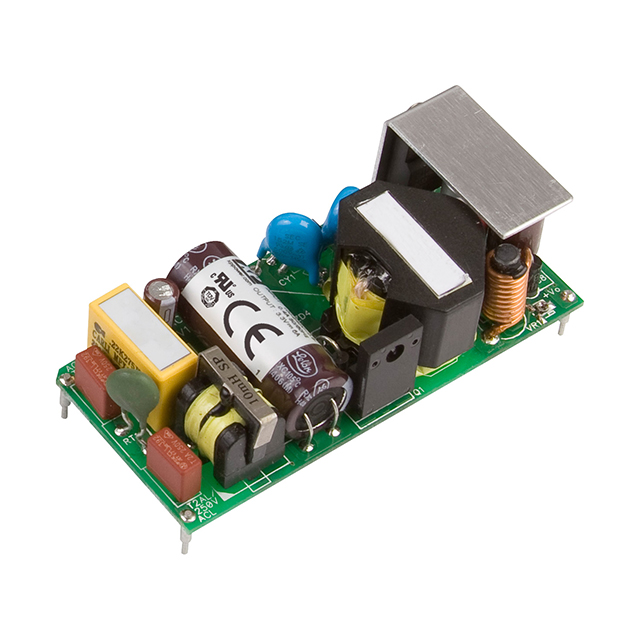

AC/DC PCB MOUNT POWER SUPPLY (PSU), 1 OUTPUT, 30 W, 24 V, 1.25 A
| Part | Load Regulation | Line Regulation | Weight | Weight | Package / Case | Voltage - Output 1 | Mounting Type | Standard Number | Features | Power (Watts) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Approval Agency | Applications | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | ±1% | 0.5 % | 58.97 g | 0.13 lbs | 4-DIP Module | 24 V | Through Hole | 60601-1 | Universal Input | 30 Watts | 75.2 mm | 2.96 in | 26.7 mm | 1.36 " | 1.05 in | 34.6 mm | CB TUV UL | Medical | 1.25 A | 70 °C | -20 °C | Open Frame | 1 |
