R1801 Series

Catalog

EVAL BOARD FOR R1801K001A

Part	Regulator Topology	Outputs and Type	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Voltage - Output	Contents	Main Purpose	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Supply	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]

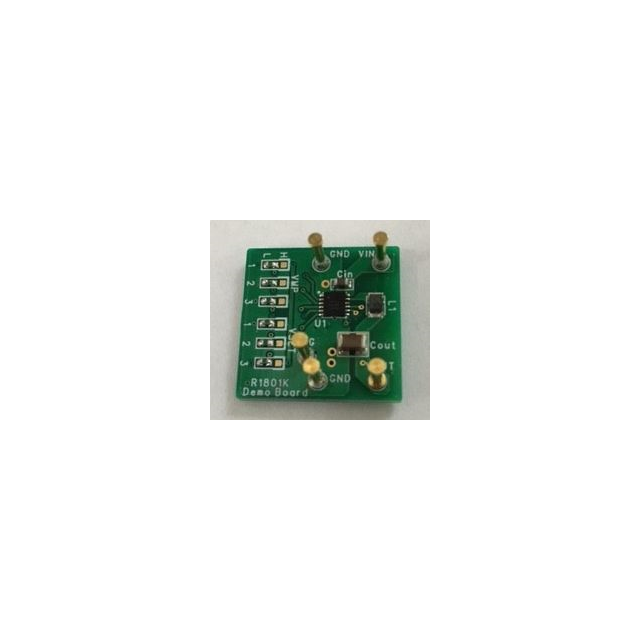

Nisshinbo Micro Devices Inc. R1801K001A-EV	Buck	1 Non-Isolated Output	5.5 V	2.3 V	R1801K001A	2.8 V	Board(s)	DC/DC Step Down

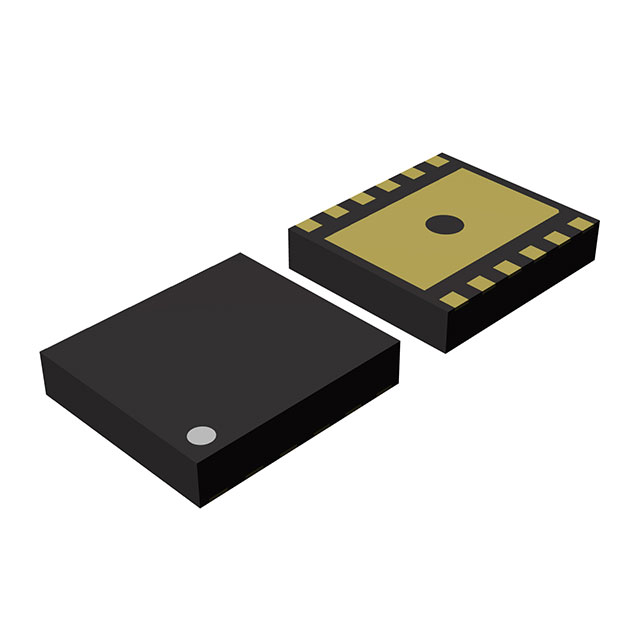

Nisshinbo Micro Devices Inc. R1801K003A-TR									Surface Mount	Energy Harvesting	85 C	-40 ¯C	12-UFDFN Exposed Pad	200 nA	DFN(PL)2730-12	5.5 V	2.3 V
Nisshinbo Micro Devices Inc. R1801K005A-TR									Surface Mount	Energy Harvesting	85 C	-40 ¯C	12-UFDFN Exposed Pad	200 nA	DFN(PL)2730-12	5.5 V	2.3 V
Nisshinbo Micro Devices Inc. R1801K006A-TR									Surface Mount	Energy Harvesting	85 C	-40 ¯C	12-UFDFN Exposed Pad	200 nA	DFN(PL)2730-12	5.5 V	2.3 V
Nisshinbo Micro Devices Inc. R1801K001A-TR									Surface Mount	Energy Harvesting	85 C	-40 ¯C	12-UFDFN Exposed Pad	200 nA	DFN(PL)2730-12	5.5 V	2.3 V
