30LE24 Series

Manufacturer: ULTRAVOLT / Advanced Energy

Catalog

DC/DC CONVERTER 30000V 30W

Part	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Applications	Mounting Type	Number of Outputs	Voltage - Input (Max) [Max]	Standard Number	Power (Watts)	Voltage - Output 1

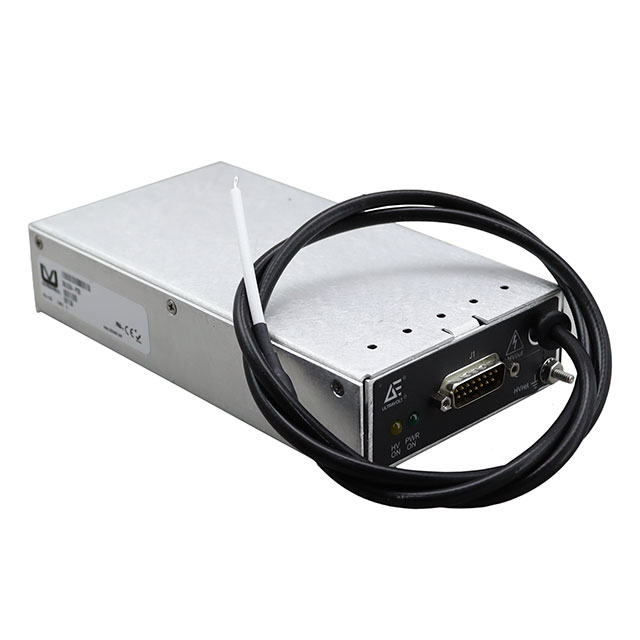

ULTRAVOLT / Advanced Energy 30LE24-P30	1 mA	45 °C	10 °C	Enclosed High Voltage	23 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	CE cURus	ITE (Commercial)	Chassis Mount	1	30 V	62368-1	30 Watts	30000 V

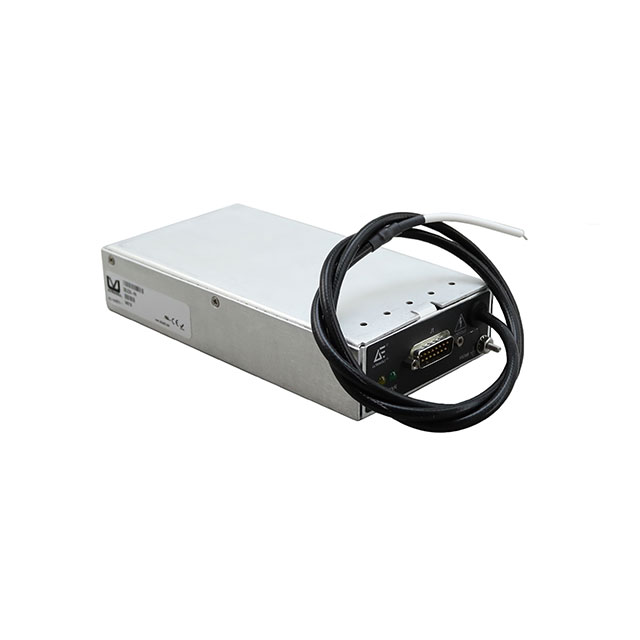

ULTRAVOLT / Advanced Energy 30LE24-P4	130 µA	45 °C	10 °C	Enclosed High Voltage	23 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	CE cURus	ITE (Commercial)	Chassis Mount	1	30 V	62368-1	3.9 W	30000 V

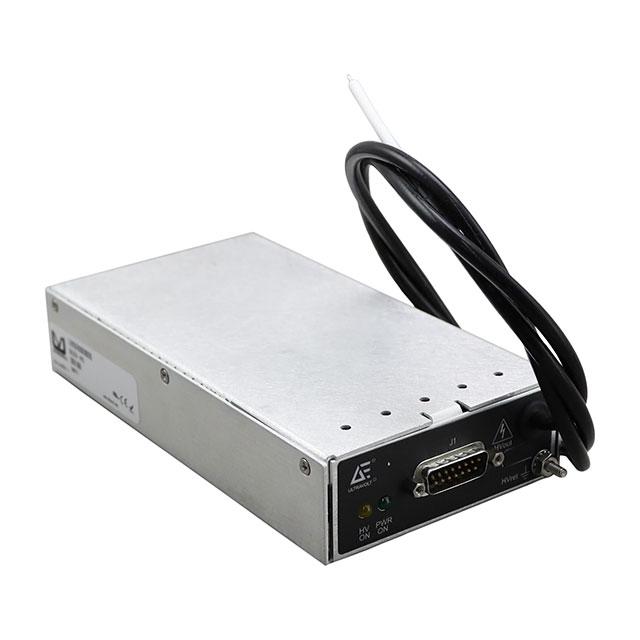

ULTRAVOLT / Advanced Energy 30LE24-N15	0.5 mA	45 °C	10 °C	Enclosed High Voltage	23 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	CE cURus	ITE (Commercial)	Chassis Mount	1	30 V	62368-1	15 W	30000 V

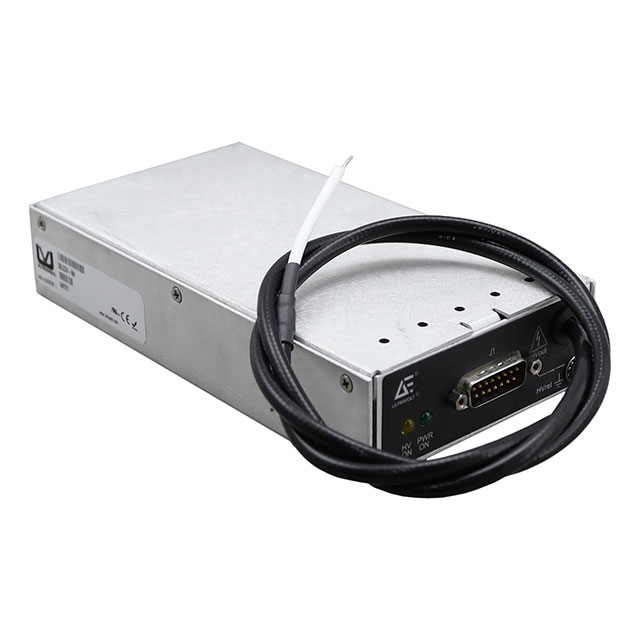

ULTRAVOLT / Advanced Energy 30LE24-N4	130 µA	45 °C	10 °C	Enclosed High Voltage	23 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	CE cURus	ITE (Commercial)	Chassis Mount	1	30 V	62368-1	3.9 W	30000 V

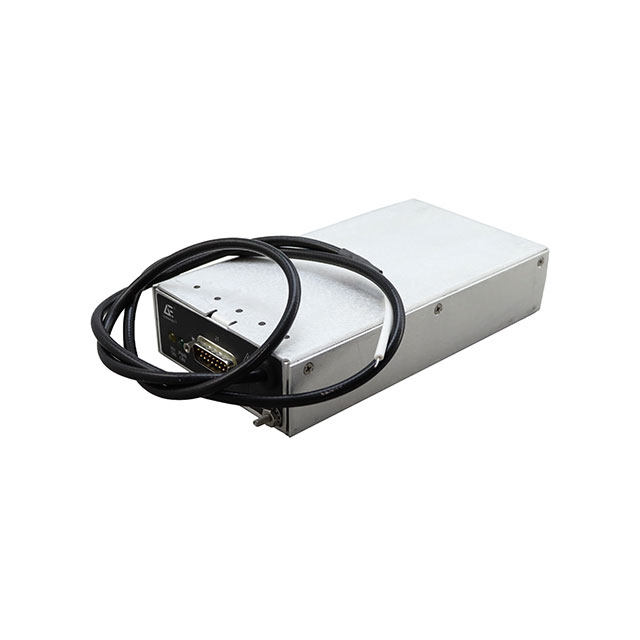

ULTRAVOLT / Advanced Energy 30LE24-N30	1 mA	45 °C	10 °C	Enclosed High Voltage	23 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	CE cURus	ITE (Commercial)	Chassis Mount	1	30 V	62368-1	30 Watts	30000 V

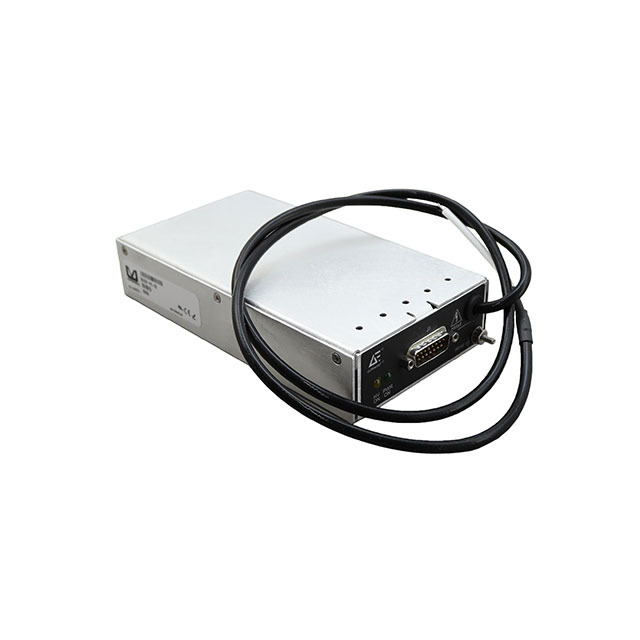

ULTRAVOLT / Advanced Energy 30LE24-P4-AZ	130 µA	45 °C	10 °C	Enclosed High Voltage	23 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	CE cURus	ITE (Commercial)	Chassis Mount	1	30 V	62368-1	3.9 W	30000 V

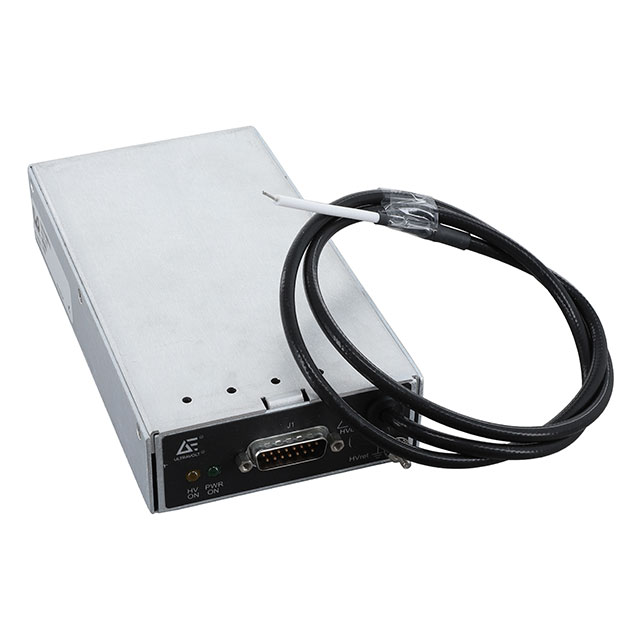

ULTRAVOLT / Advanced Energy 30LE24-P15	0.5 mA	45 °C	10 °C	Enclosed High Voltage	23 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	CE cURus	ITE (Commercial)	Chassis Mount	1	30 V	62368-1	15 W	30000 V

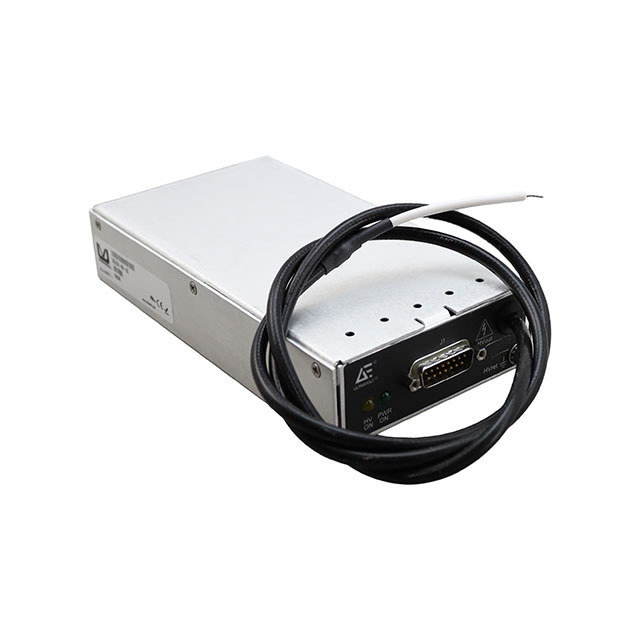

ULTRAVOLT / Advanced Energy 30LE24-N4-AZ	130 µA	45 °C	10 °C	Enclosed High Voltage	23 V	100 mm	3.94 in	184.9 mm	38.1 mm	1.5 in	7.28 in	CE cURus	ITE (Commercial)	Chassis Mount	1	30 V	62368-1	3.9 W	30000 V
