80036 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

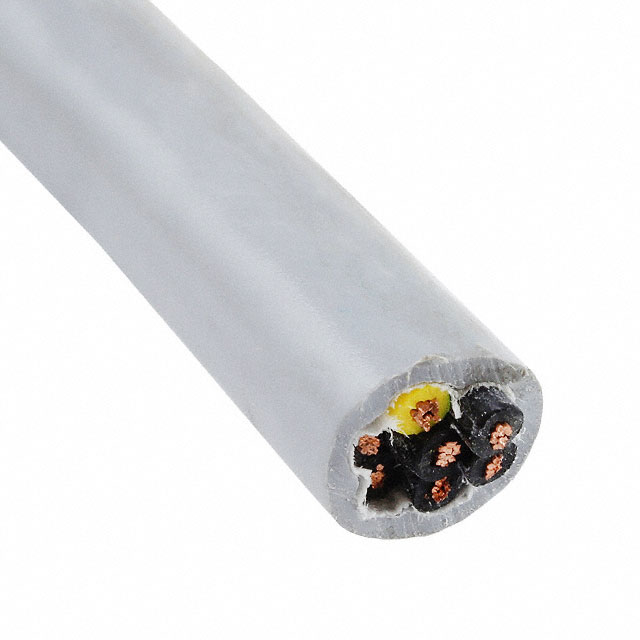

CABLE 7COND 18AWG SLATE 100'
| Part | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Number of Conductors | Length [x] | Length [x] | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Wire Gauge | Voltage | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Polyurethane (PU) | 6.55 mm | 0.258 in | Polyphenylene Ether (PPE) | 7 | 30.5 m | 100 ft | Multi-Conductor | 41 strands | 34 AWG | 90 °C | -50 °C | Copper Tinned | 18 AWG | 600 V | Slate | 0.0319 in | 0.81 mm |
