DZ150 Series

Catalog

AC/DC CONVERTER 15V 5V 150W

Part	Applications	Voltage - Output 1	Type	Voltage - Output 2	Current - Output 2	Operating Temperature [Max]	Mounting Type	Number of Outputs	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Current - Output 1	Current - Output 4	Voltage - Output 3	Voltage - Output 4	Current - Output 3
Tri-Mag, LLC DZ150-8EU	ITE (Commercial)	15 V	Open Frame	5 V	2 A	70 °C	Chassis Mount	2	150 W	264 VAC	90 VAC	PFC Universal Input	172.7 mm	96.5 mm	6.8 "	38.1 mm	1.5 in	3.8 in	9.6 A
Tri-Mag, LLC DZ150-19EU	ITE (Commercial)	3.3 V	Open Frame	5 V	8 A	70 °C	Chassis Mount	4	150 W	264 VAC	90 VAC	PFC Universal Input	172.7 mm	96.5 mm	6.8 "	38.1 mm	1.5 in	3.8 in	10 A	500 mA	12 V	-12 V	3.5 A

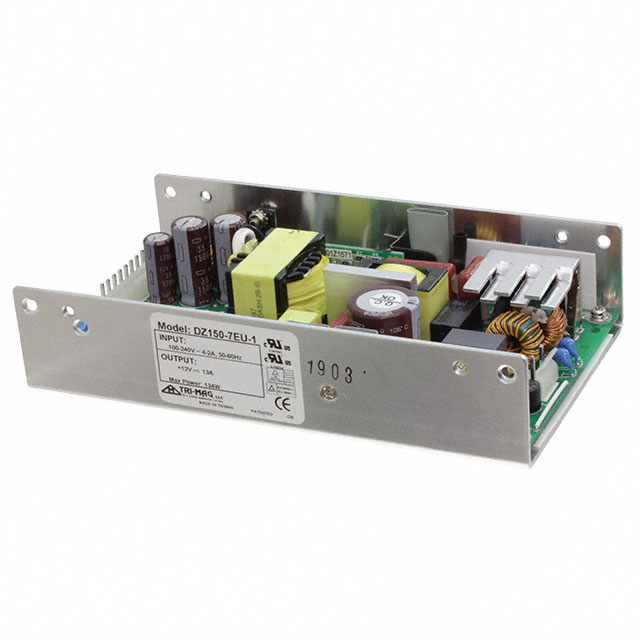

Tri-Mag, LLC DZ150-7EU-1	ITE (Commercial)	12 V	Open Frame			70 °C	Chassis Mount	1	150 W	264 VAC	90 VAC	PFC Universal Input	172.7 mm	96.5 mm	6.8 "	38.1 mm	1.5 in	3.8 in	12.5 A
Tri-Mag, LLC DZ150-1EU	ITE (Commercial)	5 V	Open Frame	12 V	7 A	70 °C	Chassis Mount	3	150 W	264 VAC	90 VAC	PFC Universal Input	172.7 mm	96.5 mm	6.8 "	38.1 mm	1.5 in	3.8 in	10 A		-12 V		500 mA
