109P0648 Series

Catalog

FAN AXIAL 60X20MM 48VDC WIRE

Part	Material - Blade	Air Flow	Air Flow	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Current Rating (Amps)	Noise	Voltage - Rated	Approval Agency	Termination	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Static Pressure	Static Pressure	RPM	Features	Weight	Weight	Width [y]	Power (Watts)	Bearing Type

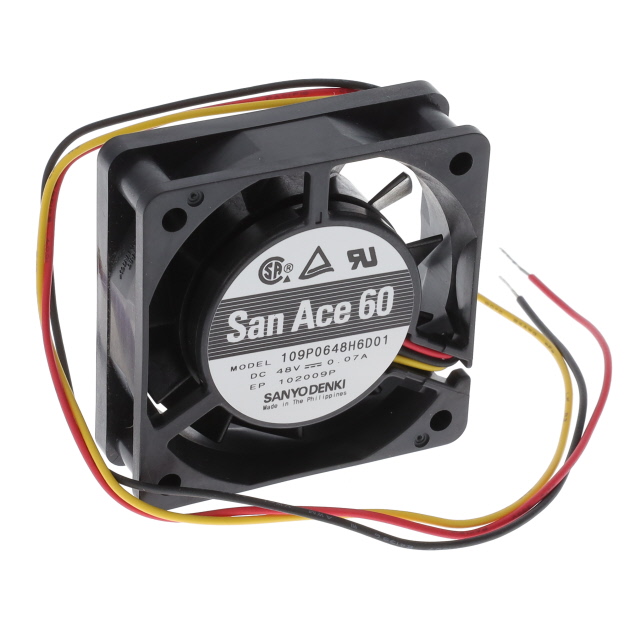

Sanyo Denki America Inc. 109P0648H6D01	Plastic	19.4 CFM	0.543 m³/min	Plastic	53 VDC	43 VDC	40000 Hrs	70 mA	41 dB	48 VDC	CSA TUV UL	3 Wire Leads	60 mm	60 mm	-20 ░C	70 °C	Tubeaxial	52.8 Pa	0.212 in H2O	5600 RPM	Locked Rotor Sensor	0.199 lb	90.26 g	20 mm	3.36 W	Ball
Sanyo Denki America Inc. 109P0648H602	Plastic	19.4 CFM	0.543 m³/min	Plastic	53 VDC	43 VDC	40000 Hrs	70 mA	41 dB	48 VDC	CSA TUV UL	2 Wire Leads	60 mm	60 mm	-20 ░C	70 °C	Tubeaxial	52.8 Pa	0.212 in H2O	5600 RPM		0.199 lb	90.26 g	20 mm	3.36 W	Ball

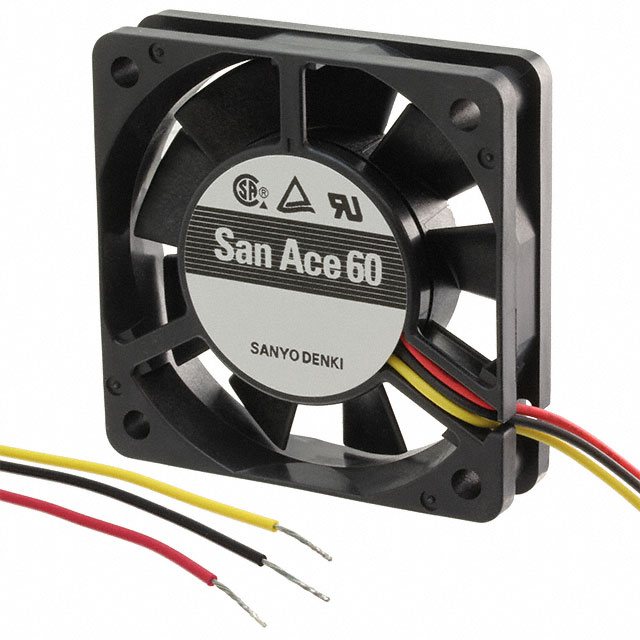

Sanyo Denki America Inc. 109P0648H601	Plastic	19.4 CFM	0.543 m³/min	Plastic	53 VDC	43 VDC	40000 Hrs	70 mA	41 dB	48 VDC	CSA TUV UL	3 Wire Leads	60 mm	60 mm	-20 ░C	70 °C	Tubeaxial	52.8 Pa	0.212 in H2O	5600 RPM	Locked Rotor Protection Speed Sensor (Tach)	0.199 lb	90.26 g	20 mm	3.36 W	Ball
