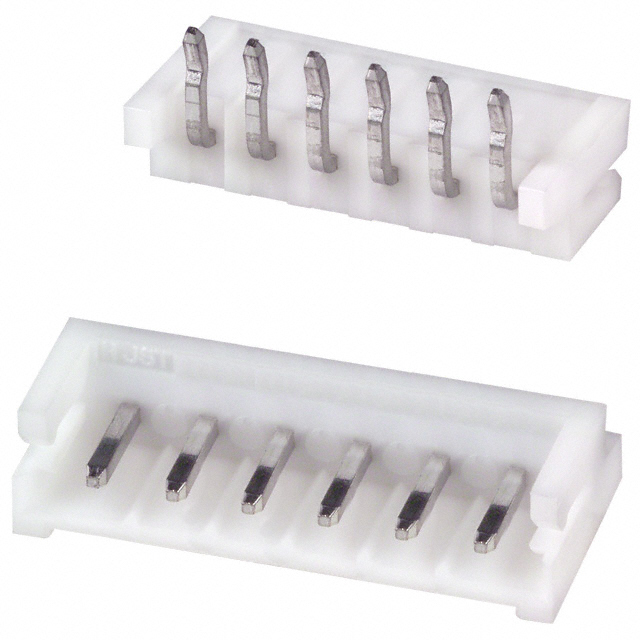

S6B-EH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 6POS 2.5MM
| Part | Number of Positions Loaded | Number of Positions | Insulation Material | Insulation Color | Style | Pitch - Mating | Pitch - Mating | Fastening Type | Shrouding | Mounting Type | Number of Rows | Contact Length - Post [x] | Contact Length - Post [x] | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Voltage Rating | Contact Material | Contact Finish - Post | Current Rating (Amps) | Termination | Contact Type | Connector Type | Contact Length - Mating | Contact Length - Mating | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | All | 6 | Nylon 6/6 Polyamide (PA66) | Natural | Board to Cable/Wire | 2.5 mm | 0.098 in | Latch Lock | Shrouded - 3 Wall | Right Angle Through Hole | 1 | 0.126 " | 3.2 mm | UL94 V-0 | 85 °C | -25 °C | Square | 250 V | Brass | Tin | 3 A | Press-Fit Solder | Male Pin | Header | 4 mm | 0.157 in | 0.165 in | 4.2 mm |
