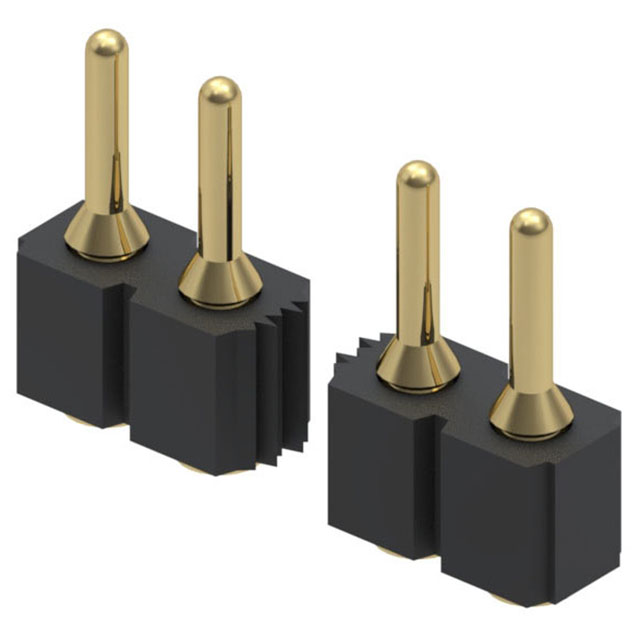

349-10 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN HEADER SMD 12POS 2.54MM
| Part | Pitch - Mating | Pitch - Mating | Mounting Type | Number of Positions Loaded | Contact Length - Mating | Contact Length - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Shrouding | Contact Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Fastening Type | Insulation Material | Number of Positions | Contact Finish - Post | Number of Rows | Contact Finish - Mating | Contact Shape | Termination | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.1 " | 2.54 mm | Surface Mount | All | 3.45 mm | 0.136 in | 10 Áin | 0.25 çm | Unshrouded | Male Pin | 0.25 µm | 10 µin | Header | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) | 12 | Gold | 1 | Gold | Circular | Solder | Black |
Mill-Max Manufacturing Corp. | 0.1 " | 2.54 mm | Surface Mount | All | 3.45 mm | 0.136 in | 10 Áin | 0.25 çm | Unshrouded | Male Pin | 0.25 µm | 10 µin | Header | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) | 25 | Gold | 1 | Gold | Circular | Solder | Black |
Mill-Max Manufacturing Corp. | 0.1 " | 2.54 mm | Surface Mount | All | 3.45 mm | 0.136 in | 10 Áin | 0.25 çm | Unshrouded | Male Pin | 0.25 µm | 10 µin | Header | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) | 41 | Gold | 1 | Gold | Circular | Solder | Black |
Mill-Max Manufacturing Corp. | 0.1 " | 2.54 mm | Surface Mount | All | 3.45 mm | 0.136 in | 10 Áin | 0.25 çm | Unshrouded | Male Pin | 0.25 µm | 10 µin | Header | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) | 26 | Gold | 1 | Gold | Circular | Solder | Black |
Mill-Max Manufacturing Corp. | 0.1 " | 2.54 mm | Surface Mount | All | 3.45 mm | 0.136 in | 10 Áin | 0.25 çm | Unshrouded | Male Pin | 0.25 µm | 10 µin | Header | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) | 28 | Gold | 1 | Gold | Circular | Solder | Black |

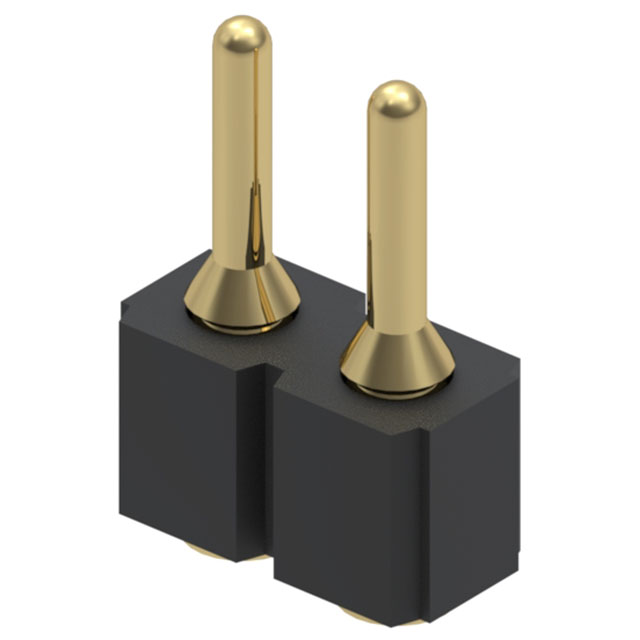

 Mill-Max Manufacturing Corp. | 0.1 " | 2.54 mm | Surface Mount | All | 3.45 mm | 0.136 in | 10 Áin | 0.25 çm | Unshrouded | Male Pin | 0.25 µm | 10 µin | Header | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) | 2 | Gold | 1 | Gold | Circular | Solder | Black |
Mill-Max Manufacturing Corp. | 0.1 " | 2.54 mm | Surface Mount | All | 3.45 mm | 0.136 in | 10 Áin | 0.25 çm | Unshrouded | Male Pin | 0.25 µm | 10 µin | Header | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) | 56 | Gold | 1 | Gold | Circular | Solder | Black |
Mill-Max Manufacturing Corp. | 0.1 " | 2.54 mm | Surface Mount | All | 3.45 mm | 0.136 in | 10 Áin | 0.25 çm | Unshrouded | Male Pin | 0.25 µm | 10 µin | Header | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) | 59 | Gold | 1 | Gold | Circular | Solder | Black |
Mill-Max Manufacturing Corp. | 0.1 " | 2.54 mm | Surface Mount | All | 3.45 mm | 0.136 in | 10 Áin | 0.25 çm | Unshrouded | Male Pin | 0.25 µm | 10 µin | Header | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) | 27 | Gold | 1 | Gold | Circular | Solder | Black |
Mill-Max Manufacturing Corp. | 0.1 " | 2.54 mm | Surface Mount | All | 3.45 mm | 0.136 in | 10 Áin | 0.25 çm | Unshrouded | Male Pin | 0.25 µm | 10 µin | Header | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) | 7 | Gold | 1 | Gold | Circular | Solder | Black |
