S22L2SRGB Series

Catalog

S22 PRO SERIES: 14-COLOR RGB INDICATOR

Part	Lens Style	Termination Style	Current	Ingress Protection	Millicandela Rating	Panel Cutout Dimensions	Panel Cutout Dimensions	Voltage [Max]	Voltage [Min]	Lamp Color	Panel Cutout Shape	Lens Transparency	Type	Ratings

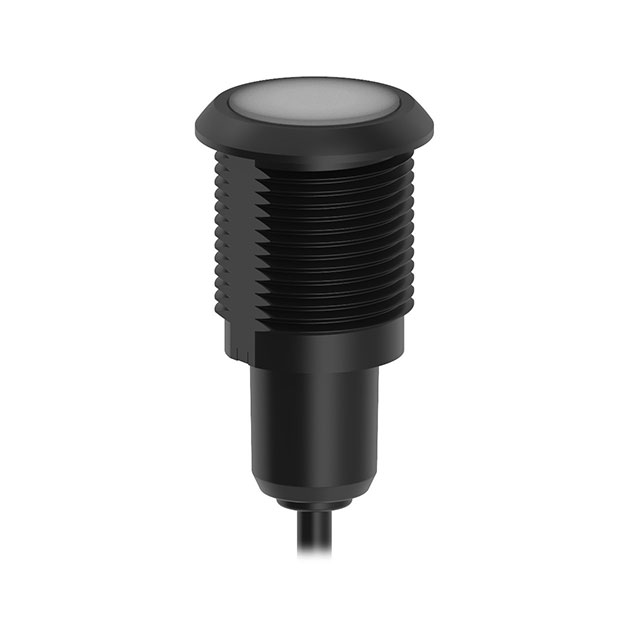

BANNER ENGINEERING S22L2SRGB14	Round with Flat Top	Wire Leads	70 mA	IP66 IP67 IP69K	0.3 mcd 0.9 mcd 1.2 mcd 1.8 mcd 1.9 mcd 2 mcd 2.2 mcd	22 mm	0.866 in	30 V	10 V	Amber Blue Cyan Green Lime Green Magenta Orange Red Rose Sky Blue Spring Green Violet	Round	Diffused	LED	DC
BANNER ENGINEERING S22L2SRGB14Q	Round with Flat Top	Quick Connect	70 mA	IP66 IP67 IP69K	0.3 mcd 0.9 mcd 1.2 mcd 1.8 mcd 1.9 mcd 2 mcd 2.2 mcd	22 mm	0.866 in	30 V	10 V	Amber Blue Cyan Green Lime Green Magenta Orange Red Rose Sky Blue Spring Green Violet	Round	Diffused	LED	DC
BANNER ENGINEERING S22L2SRGB14T	Round with Flat Top	Screw Terminal	70 mA	IP66 IP67 IP69K	0.3 mcd 0.9 mcd 1.2 mcd 1.8 mcd 1.9 mcd 2 mcd 2.2 mcd	22 mm	0.866 in	30 V	10 V	Amber Blue Cyan Green Lime Green Magenta Orange Red Rose Sky Blue Spring Green Violet	Round	Diffused	LED	DC
BANNER ENGINEERING S22L2SRGB14QP	Round with Flat Top		70 mA	IP66 IP67 IP69K	0.3 mcd 0.9 mcd 1.2 mcd 1.8 mcd 1.9 mcd 2 mcd 2.2 mcd	22 mm	0.866 in	30 V	10 V	Amber Blue Cyan Green Lime Green Magenta Orange Red Rose Sky Blue Spring Green Violet	Round	Diffused	LED	DC

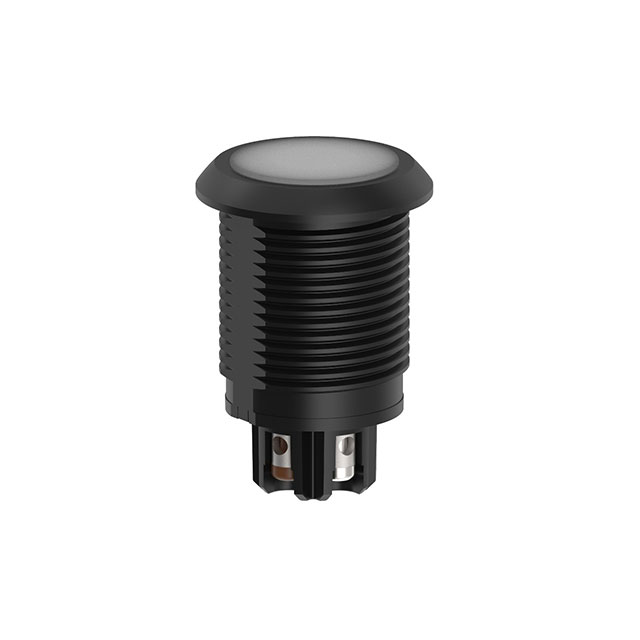

BANNER ENGINEERING S22L2SRGB7T	Round with Flat Top	Screw Terminal	70 mA	IP66 IP67 IP69K	0.3 mcd 0.8 mcd 1.2 mcd 1.9 mcd 2 mcd 2.5 mcd	22 mm	0.866 in	30 V	10 V	Blue Green Red White - Cool Yellow	Round	Diffused	LED	DC
BANNER ENGINEERING S22L2SRGB7Q	Round with Flat Top	Quick Connect	70 mA	IP66 IP67 IP69K	0.3 mcd 0.8 mcd 1.2 mcd 1.9 mcd 2 mcd 2.5 mcd	22 mm	0.866 in	30 V	10 V	Blue Cyan Green Magenta Red White - Cool Yellow	Round	Diffused	LED	DC
