PS2801C-4 Series

High Isolation Voltage SSOP Photocoupler

Manufacturer: Renesas Electronics Corporation

Catalog

High Isolation Voltage SSOP Photocoupler

Part	Supplier Device Package	Current - DC Forward (If) (Max) [Max]	Voltage - Isolation	Input Type	Output Type	Vce Saturation (Max) [Max]	Turn On / Turn Off Time (Typ)	Number of Channels	Current - Output / Channel	Current Transfer Ratio (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Current Transfer Ratio (Min) [Min]	Package / Case [y]	Package / Case	Package / Case [x]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Mounting Type	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max)	Current Transfer Ratio (Max) [Max]

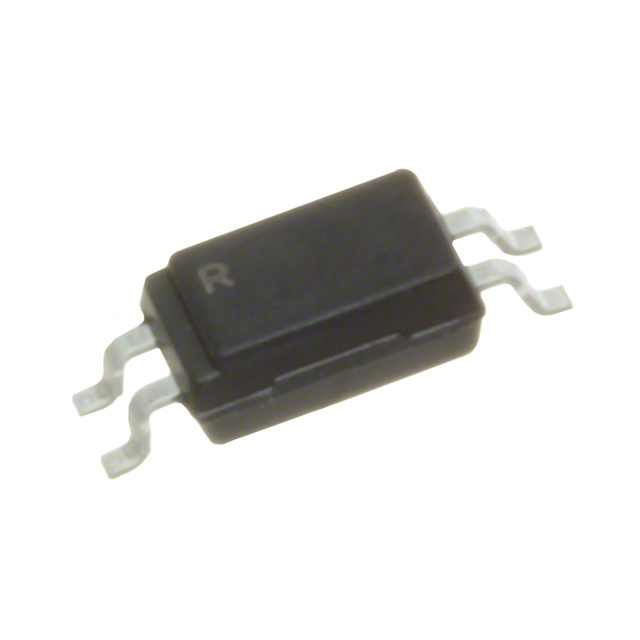

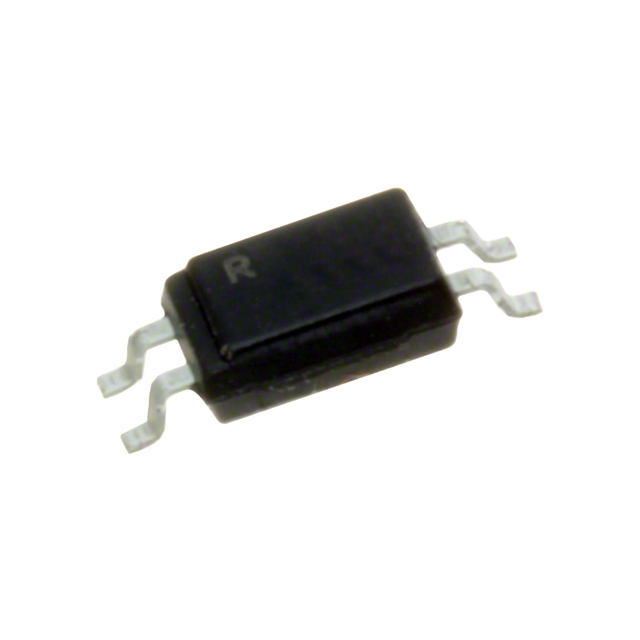

Renesas Electronics Corporation PS2801C-1-A	4-SSOP	30 mA	2500 Vrms	DC	1.81 mOhm	300 mV	7 µs 10 µs	1	30 mA	400 %	100 °C	-55 °C	50 %	4.4 mm	4-SOIC	0.173 in	5 µs	7 µs	Surface Mount
Renesas Electronics Corporation PS2801-1-F3-P-A	4-SSOP		2500 Vrms	DC	1.81 mOhm	300 mV	5 µs 6 µs	1	50 mA	300 %	100 °C	-55 °C	150 %	4.4 mm	4-SOIC	0.173 in	3 µs	5 µs	Surface Mount	1.1 V	50 mA
Renesas Electronics Corporation PS2801-1-F3-K-A	4-SSOP		2500 Vrms	DC	1.81 mOhm	300 mV	5 µs 6 µs	1	50 mA		100 °C	-55 °C	300 %	4.4 mm	4-SOIC	0.173 in	3 µs	5 µs	Surface Mount	1.1 V	50 mA	600 %
Renesas Electronics Corporation PS2801C-1-F3-M-A	4-SSOP	30 mA	2500 Vrms	DC	1.81 mOhm	300 mV	7 µs 10 µs	1	30 mA	400 %	100 °C	-55 °C	100 %	4.4 mm	4-SOIC	0.173 in	5 µs	7 µs	Surface Mount
Renesas Electronics Corporation PS2801-1-V-F3-P-A	4-SSOP		2500 Vrms	DC	1.81 mOhm	300 mV	5 µs 6 µs	1	50 mA	300 %	100 °C	-55 °C	150 %	4.4 mm	4-SOIC	0.173 in	3 µs	5 µs	Surface Mount	1.1 V	50 mA
Renesas Electronics Corporation PS2801C-1-V-F3-A	4-SSOP	30 mA	2500 Vrms	DC	1.81 mOhm	300 mV	7 µs 10 µs	1	30 mA	400 %	100 °C	-55 °C	50 %	4.4 mm	4-SOIC	0.173 in	5 µs	7 µs	Surface Mount
Renesas Electronics Corporation PS2801C-1-F3-A	4-SSOP	30 mA	2500 Vrms	DC	1.81 mOhm	300 mV	7 µs 10 µs	1	30 mA	400 %	100 °C	-55 °C	50 %	4.4 mm	4-SOIC	0.173 in	5 µs	7 µs	Surface Mount
Renesas Electronics Corporation PS2801C-4-F3-M-A	16-SMD	30 mA	2500 Vrms	DC	1.81 mOhm	300 mV	7 µs 10 µs	4	30 mA	400 %	100 °C	-55 °C	100 %		16-SOIC		5 µs	7 µs	Surface Mount
Renesas Electronics Corporation PS2801C-1-V-A	4-SSOP	30 mA	2500 Vrms	DC	1.81 mOhm	300 mV	7 µs 10 µs	1	30 mA	400 %	100 °C	-55 °C	50 %	4.4 mm	4-SOIC	0.173 in	5 µs	7 µs	Surface Mount
Renesas Electronics Corporation PS2801-4-A	16-SSOP		2500 Vrms	DC	1.81 mOhm	300 mV	5 µs 6 µs	4	50 mA		100 °C	-55 °C	80 %		16-SOIC		3 µs	5 µs	Surface Mount	1.1 V	50 mA	600 %

Catalog

High Isolation Voltage SSOP Photocoupler

Description

The PS2801A-1 and PS2801A-4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor in a plastic SSOP for high density applications to realize an excellent cost performance. This package has shield effect to cut off ambient light.
