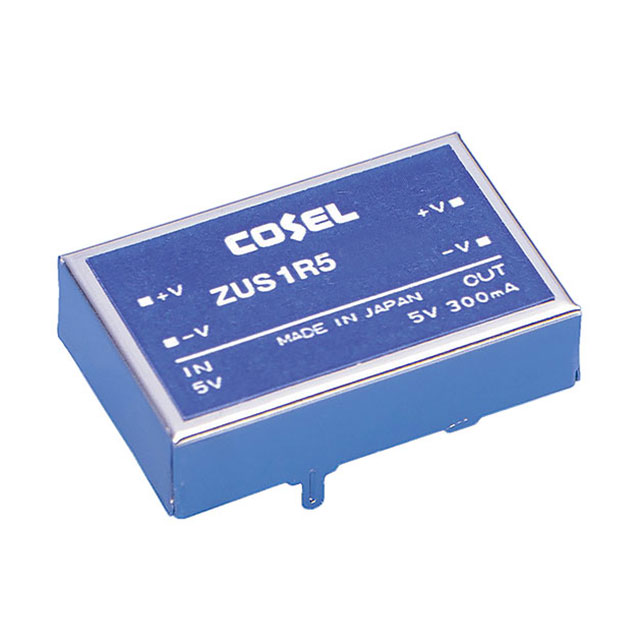

ZUS1R54812 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
DC DC CONVERTER 12V 1.6W
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Min) [Min] | Voltage - Output 1 | Type | Package / Case | Voltage - Isolation | Power (Watts) | Applications | Current - Output (Max) [Max] | Number of Outputs | Voltage - Input (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | Through Hole | -20 °C | 71 °C | 36 V | 12 V | Isolated Module | 4-DIP Module | 500 V | 1.6 W | ITE (Commercial) | 130 mA | 1 | 72 V | 27.5 mm | 18 mm | 1.08 in | 7 mm | 0.28 " | 0.71 in | 73 % |
