HWS15A-150A Series

Catalog

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 33 W, 3.3 V, 10 A

Part	Type	Features	Current - Output 1	Voltage - Isolation	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Power (Watts)	Standard Number	Current - Output 5	Current - Output 4	Voltage - Output 3	Current - Output 2	Voltage - Output 5	Current - Output 3	Voltage - Output 6	Voltage - Output 4	Voltage - Output 2	Current - Output 6	Size / Dimension [y]	Size / Dimension [z]	Current - Output 1 [custom]

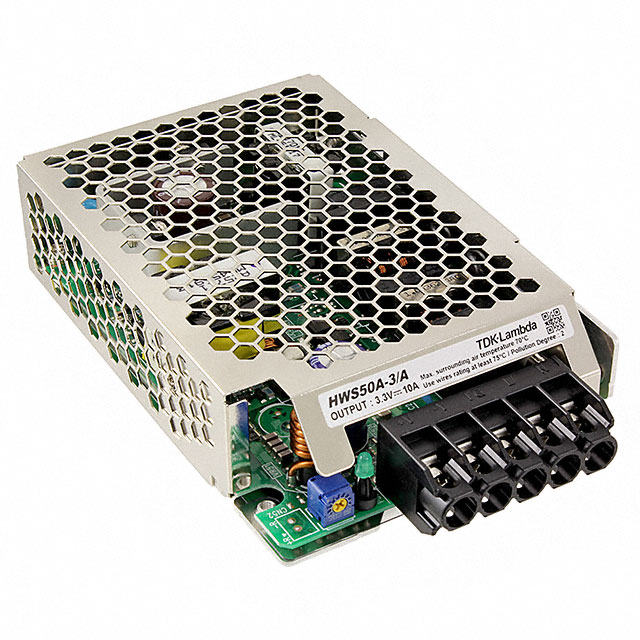

TDK Corporation HWS50A-3/A	Enclosed	Adjustable Output Universal Input	10 A	3000 V	1	85 VAC 120 VDC	264 VAC 370 VDC	CE	76 %	82 mm	119.9 mm	26.4 mm	1.04 "	3.23 in	4.72 "	3.3 V	Industrial ITE (Commercial)	70 °C	-10 °C	Chassis Mount	50 W
TDK Corporation HWS150A-24/ME	Open Frame	Adjustable Output DC Input Capable PFC Remote Sense Universal Input		3000 V	1	85 VAC	265 VAC	CE	90 %	42 mm	160 mm	82 mm	3.23 in	1.65 "	6.3 in	24 V	ITE (Commercial) Medical	70 °C	-10 °C	Chassis Mount	150 W
TDK Corporation HWS50A-12/EVA	Enclosed	Adjustable Output DC Input Capable Remote Sense Universal Input	4.3 A	3000 V	1	85 VAC 120 VDC	265 VAC 370 VDC	CE UKCA	85 %	31.5 mm	132.5 mm	82 mm	3.23 in	1.24 "	5.22 "	12 V	Industrial ITE (Commercial)	70 °C	-10 °C	Chassis Mount	52 W	62368-1 UL 508
TDK Corporation HWS150A-12/HDA	Enclosed	Adjustable Output Remote On/Off Remote Sense	13 A	3000 V	6	85 VAC 120 VDC	265 VAC 370 VDC	CE	86 %	82 mm	160 mm	42 mm	1.65 "	3.23 in	6.3 in	12 V	ITE (Commercial)	71 °C	-10 °C	Chassis Mount	156 W	60950-1 62368-1	13 A	13 A	12 V	13 A	12 V	13 A	12 V	12 V	12 V	13 A
TDK Corporation HWS100A-48/EVA	Enclosed	Adjustable Output DC Input Capable Remote Sense Universal Input	2.1 A	3000 V	1	85 VAC 120 VDC	265 VAC 370 VDC	CE UKCA	90 %	33.5 mm	176 mm	83 mm	3.27 in	1.32 in	6.93 "	48 V	Industrial ITE (Commercial)	70 °C	-10 °C	Chassis Mount	101 W	62368-1 UL 508

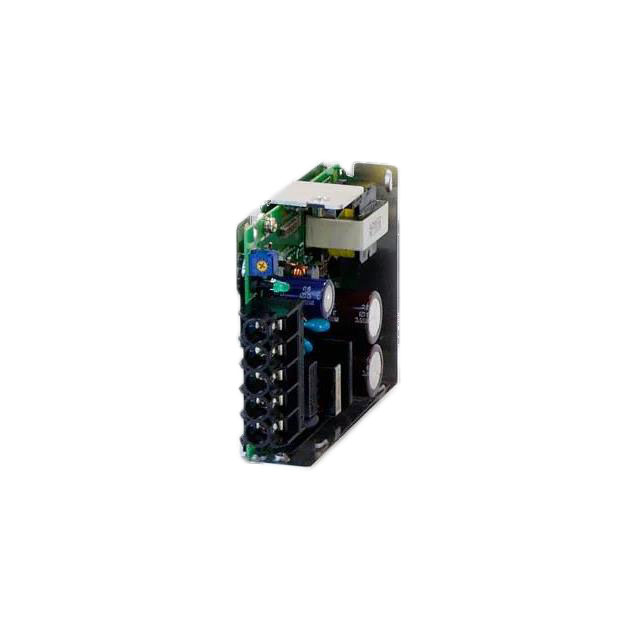

TDK Corporation HWS30A-12/ME	Open Frame	Adjustable Output DC Input Capable Universal Input	2.5 A	3000 V	1	85 VAC	265 VAC	CE	86 %		95 mm		1.24 in	3.23 in	3.74 "	12 V	ITE (Commercial) Medical	70 °C	10 °C	Chassis Mount	30 Watts												31.5 mm	82 mm
TDK Corporation HWS30A-5/ME	Open Frame	Adjustable Output DC Input Capable Universal Input	6 A	3000 V	1	85 VAC	265 VAC	CE			95 mm		1.24 in	3.23 in	3.74 "	5 V	ITE (Commercial) Medical	70 °C	10 °C	Chassis Mount	30 Watts												31.5 mm	82 mm
TDK Corporation HWS50A-24/HD	Open Frame Conformal Coated	Adjustable Output PFC Universal Input	2.2 A	3000 V	1	85 VAC 120 VDC	265 VAC 370 VDC	CE	87 %	26.5 mm	120 mm	82 mm	3.23 in	1.04 in	4.72 "	24 V	ITE (Commercial)	71 °C	-10 °C	Chassis Mount	53 W
TDK Corporation HWS15A-48	Open Frame	Adjustable Output Universal Input		3000 V	1	85 VAC 120 VDC	264 VAC 370 VDC	CE	80 %	82 mm	80 mm	31.5 mm	1.24 in	3.23 in	3.15 "	48 V	Industrial ITE (Commercial)	70 °C	-10 °C	Chassis Mount	15 W														330 mA
TDK Corporation HWS30A-24	Open Frame	Adjustable Output Universal Input	1.3 A	3000 V	1	85 VAC 120 VDC	264 VAC 370 VDC	CE	88 %		95 mm		1.24 in	3.23 in	3.74 "	24 V	Industrial ITE (Commercial)	70 °C	-10 °C	Chassis Mount	30 Watts												31.5 mm	82 mm
