77147 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

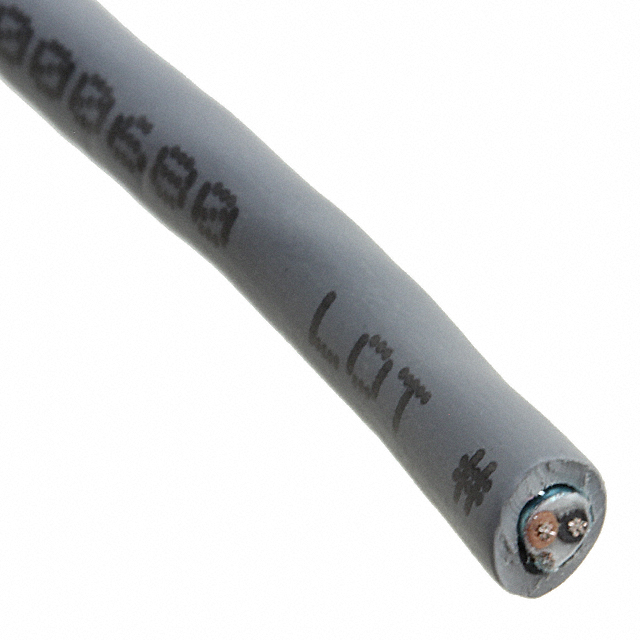

ECOGEN ECOCABLE 26AWG 2COND FOIL MPPE 77147 SL 001 1000 FT
| Part | Shield Coverage | Shield Material | Cable Type | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Ratings | Voltage | Conductor Strand [x] | Conductor Strand [x] | Shield Type | Jacket Color | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Number of Conductors | Wire Gauge | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Multi-Conductor | 304.8 m | 1000 ft | 0.15 in | 3.81 mm | Polyphenylene Ether Modified (mPPE) | 0.813 mm | 0.032 in | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 21915 | 600 V | 34 AWG | 7 | Foil | Slate | Polyphenylene Ether Modified (mPPE) | -50 °C | 105 ░C | Copper Tinned | 2 | 26 AWG | ||
ALPHA WIRE | 100 % | Aluminum | Multi-Conductor | 0.15 in | 3.81 mm | Polyphenylene Ether Modified (mPPE) | 0.813 mm | 0.032 in | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 21915 | 600 V | 34 AWG | 7 | Foil | Slate | Polyphenylene Ether Modified (mPPE) | -50 °C | 105 ░C | Copper Tinned | 2 | 26 AWG | 100 ft | 30.5 m | ||
ALPHA WIRE | 100 % | Aluminum | Multi-Conductor | 0.15 in | 3.81 mm | Polyphenylene Ether Modified (mPPE) | 0.813 mm | 0.032 in | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 21915 | 600 V | 34 AWG | 7 | Foil | Slate | Polyphenylene Ether Modified (mPPE) | -50 °C | 105 ░C | Copper Tinned | 2 | 26 AWG |
