1179-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

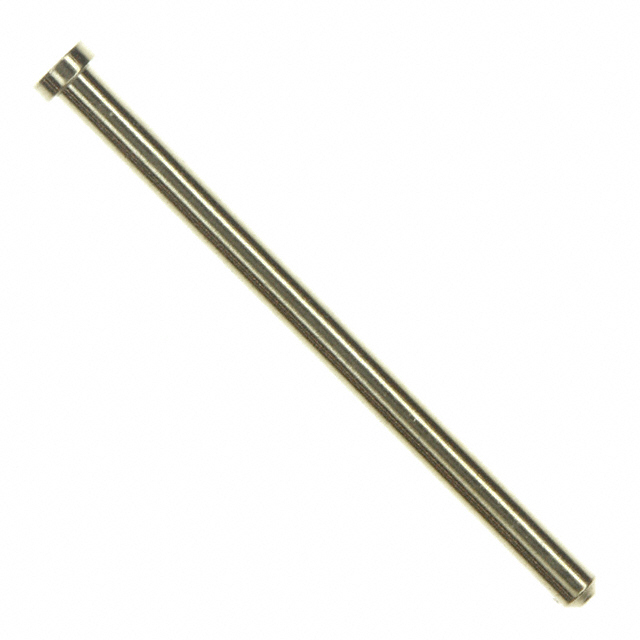

CONN PC PIN CIRC 0.040DIA GOLD
| Part | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Length - Overall [x] | Length - Overall [x] | Contact Finish | Contact Material | Terminal Type | Mounting Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Insulation | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | 0.664 in | 16.87 mm | Gold | Brass Alloy | PC Pin | Through Hole | Solder | 0.25 Ám | 10 Áin | 1.12 mm | 0.044 in | 0.644 in | 16.36 mm | Non-Insulated | 0.06 in | 1.52 mm | Nail Head Single End |
