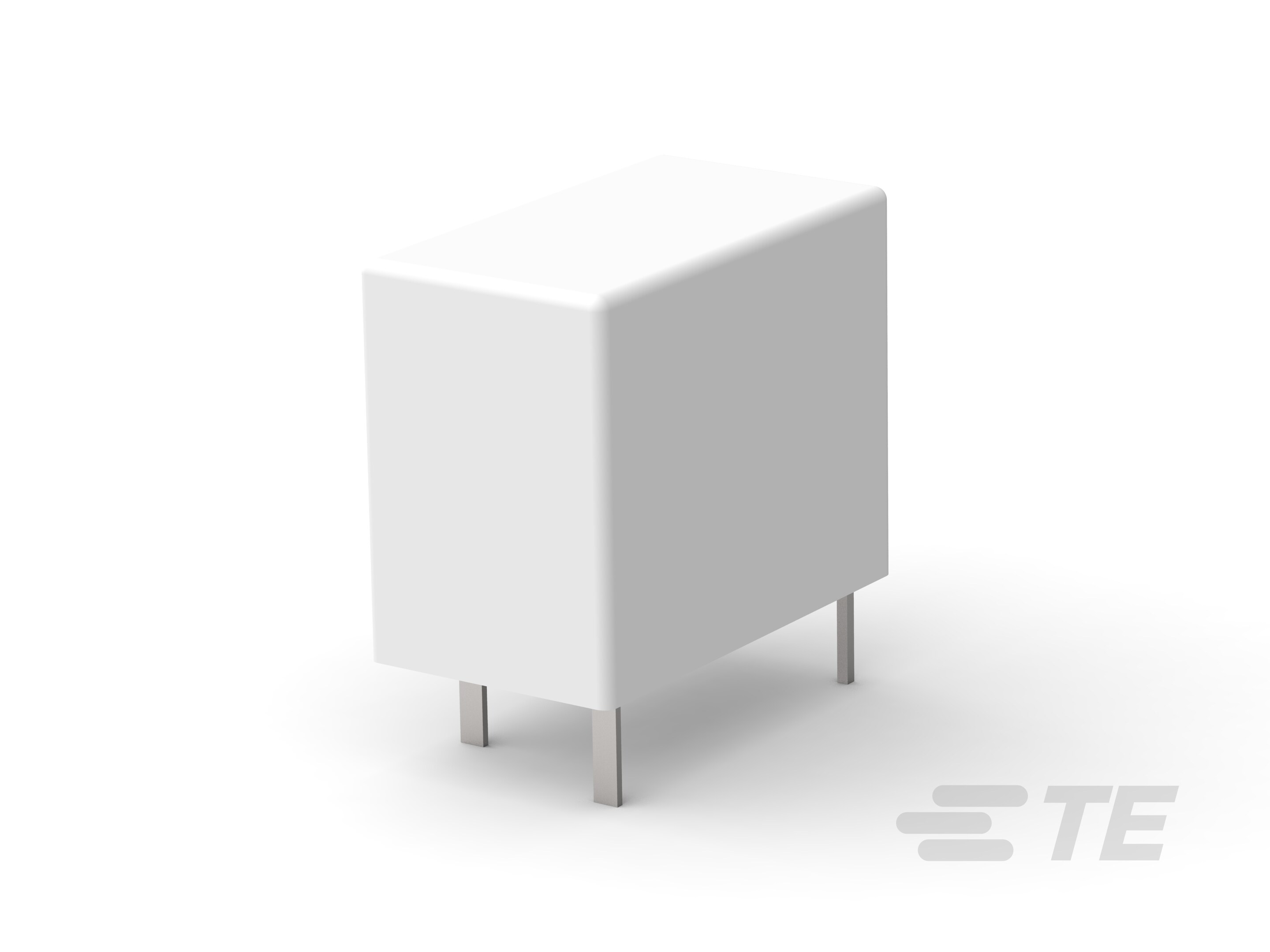

OEG Miniature PCB Relay OJ/OJE Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPST 5A 12V
| Part | Coil Resistance | Contact Material | Must Operate Voltage | Load - Max Switching | Seal Rating | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Contact Rating (Current) | Switching Voltage [Max] | Coil Type | Termination Style | Relay Type | Coil Voltage | Coil Insulation | Release Time | Approval Agency | Mounting Type | Must Release Voltage | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 320 Ohms | Silver Nickel (AgNi) | 8.4 VDC | 150 W 1385 VA | Sealed - Flux Protection | 10 ms | 85 °C | -30 ░C | SPST-NO (1 Form A) | 5 A | 30 VDC 277 VAC | Non Latching | PC Pin | General Purpose | 12 VDC | Class F | 4 ms | CQC cULus TUV VDE | Through Hole | 0.6 VDC | 0.0375 A |
 TE Connectivity AMP Connectors | |||||||||||||||||||||
TE Connectivity AMP Connectors | 125 Ohms | Silver Cadmium Oxide (AgCdO) | 3.75 VDC | 240 W 2216 VA | Sealed - Flux Protection | 15 ms | 70 °C | -30 ░C | SPST-NO (1 Form A) | 8 A | 30 VDC 277 VAC | Non Latching | PC Pin | General Purpose | 5 VDC | Class F | 4 ms | CQC cULus TUV VDE | Through Hole | 0.25 VDC | 40 mA |
 TE Connectivity AMP Connectors | 320 Ohms | Silver Cadmium Oxide (AgCdO) | 8.4 VDC | 300 W 2770 VA | Sealed - Fully | 10 ms | 70 °C | -30 ░C | SPST-NO (1 Form A) | 10 A | 30 VDC 277 VAC | Non Latching | PC Pin | General Purpose | 12 VDC | Class F | 4 ms | CQC cULus TUV VDE | Through Hole | 0.6 VDC | 0.0375 A |
 TE Connectivity AMP Connectors | Silver Cadmium Oxide (AgCdO) | 18 VDC | 300 W 2770 VA | Sealed - Flux Protection | 10 ms | 105 ░C | -40 C | SPST-NO (1 Form A) | 10 A | 30 VDC 277 VAC | Non Latching | PC Pin | General Purpose | 24 VDC | Class F | 4 ms | CQC cULus TUV VDE | Through Hole | 2.4 VDC | 18.8 mA | |
 TE Connectivity AMP Connectors | |||||||||||||||||||||
 TE Connectivity AMP Connectors | 720 Ohms | Silver (Ag) | 9 VDC | 90 W 831 VA | Sealed - Flux Protection | 15 ms | 90 °C | -30 ░C | SPST-NO (1 Form A) | 3 A | 30 VDC 277 VAC | Non Latching | PC Pin | General Purpose | 12 VDC | Class F | 4 ms | CQC cULus TUV VDE | Through Hole | 0.6 VDC | 16.7 mA |
 TE Connectivity AMP Connectors | 720 Ohms | Silver Cadmium Oxide (AgCdO) | 9 VDC | 240 W 2216 VA | 15 ms | 105 ░C | -40 C | SPST-NO (1 Form A) | 8 A | 30 VDC 277 VAC | Non Latching | PC Pin | General Purpose | 12 VDC | Class F | 4 ms | CQC cULus TUV VDE | Through Hole | 1.2 VDC | 16.7 mA | |
 TE Connectivity AMP Connectors | Silver (Ag) | 8.4 VDC | 150 W 1385 VA | Sealed - Fully | 10 ms | 85 °C | -30 ░C | SPST-NO (1 Form A) | 5 A | 30 VDC 277 VAC | Non Latching | PC Pin | General Purpose | 12 VDC | Class F | 4 ms | CQC cULus TUV VDE | Through Hole | 0.6 VDC | 0.0375 A | |
TE Connectivity AMP Connectors | Silver Nickel (AgNi) | 9 VDC | 90 W | Sealed - Flux Protection | 15 ms | 105 ░C | -30 ░C | SPST-NO (1 Form A) | 3 A | 30 VDC 277 VAC | Non Latching | PC Pin | General Purpose | 12 VDC | 4 ms | CQC cURus TUV VDE | Through Hole | 1.2 VDC | 16.7 mA |
