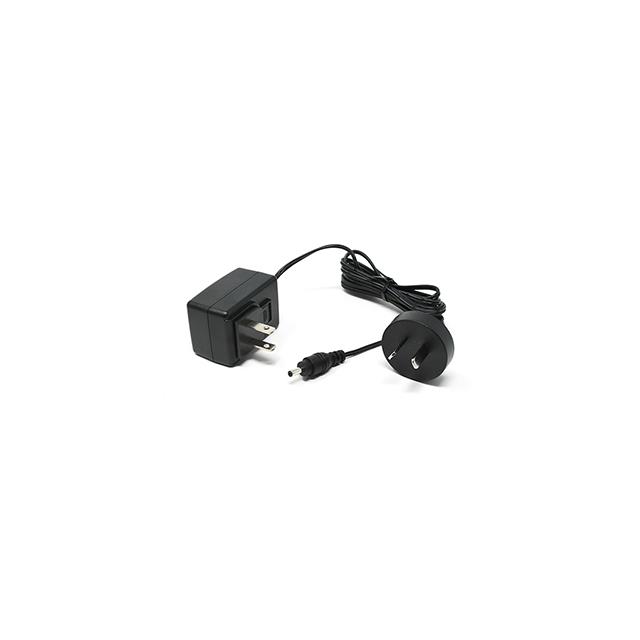

PEAMW12I Series

Catalog

WALL MOUNT POWER SUPPLY 5V 12 WATT

Part	Current - Output (Max) [Max]	Voltage - Output	Power (Watts)	No Load Power Consumption	Input Type	Operating Temperature [Max]	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Approval Agency	Efficiency	Output Connector	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Input Connector	Region Utilized	Polarization	Output Connector [diameter]	Output Connector [x]	Cord Length	Cord Length	Form
TT Electronics/BI PEAMW12I-10-USBC	2.4 A	5 V	12 W	100 mW	Multi-Blade (Included)	60 °C	Medical	264 VAC	90 VAC	60601-1	CB CE cURus FCC TUV	Level VI	USB C Receptacle	2.2 in	32 mm	56 mm	1.46 "	37 mm	1.26 "	Multi-Blade (Included)	International
TT Electronics/BI PEAMW12I-14-B1	500 mA	24 V	12 W	100 mW	Multi-Blade (Single Blade Included)	60 °C	Medical	264 VAC	90 VAC	60601-1	CB CE cURus FCC TUV	Level VI	Barrel Plug	2.2 in	32 mm	55.9 mm	1.46 "	37.1 mm	1.26 "	NEMA 1-15P	International	Positive Center	2.1 mm 5.5 mm	9.5 mm	70.9 "	1.8 m	Wall Mount

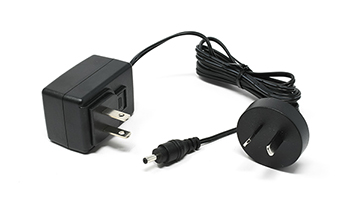

TT Electronics/BI PEAMW12I-13-B1	0.8 A	15 V	12 W	100 mW	Multi-Blade (Single Blade Included)	60 °C	Medical	264 VAC	90 VAC	60601-1	CB CE cURus FCC TUV	Level VI	Barrel Plug	2.2 in	32 mm	55.9 mm	1.46 "	37.1 mm	1.26 "	NEMA 1-15P	International	Positive Center	2.1 mm 5.5 mm	9.5 mm	70.9 "	1.8 m	Wall Mount
TT Electronics/BI PEAMW12I-10-USB	2.4 A	5 V	12 W	100 mW	Multi-Blade (Single Blade Included)	60 °C	Medical	264 VAC	90 VAC	60601-1	CB CE cURus FCC TUV	Level VI	USB A Receptacle	2.2 in	32 mm	55.9 mm	1.46 "	37.1 mm	1.26 "	NEMA 1-15P	International						Wall Mount
TT Electronics/BI PEAMW12I-10-B1	2.4 A	5 V	12 W	100 mW	Multi-Blade (Single Blade Included)	60 °C	Medical	264 VAC	90 VAC	60601-1	CB CE cURus FCC TUV	Level VI	Barrel Plug	2.2 in	32 mm	55.9 mm	1.46 "	37.1 mm	1.26 "	NEMA 1-15P	International	Positive Center	2.1 mm 5.5 mm	9.5 mm	70.9 "	1.8 m	Wall Mount
