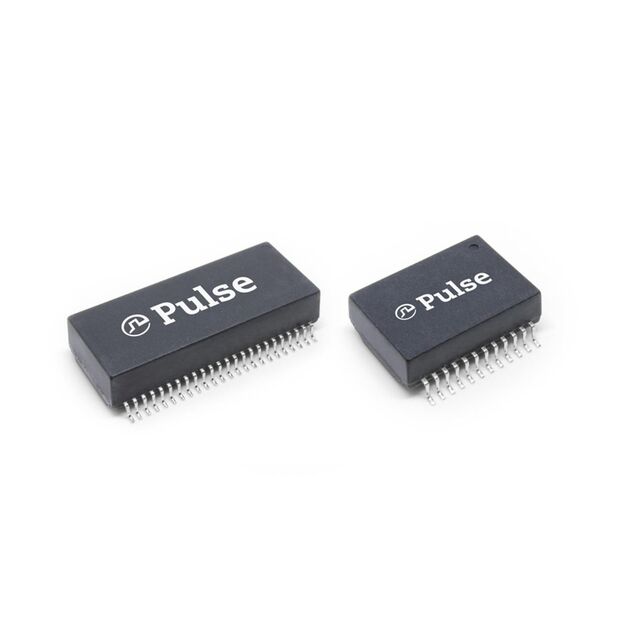

HXB Series

Catalog

AUDIO TRANSFORMERS / SIGNAL TRANSFORMERS MOD, SIN, 10GD,1:1, EXT. HF, SMD, T&R

Part	Height - Seated (Max)	Height - Seated (Max) [Max]	Inductance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Transformer Type	Height - Seated (Max) [Max]
Pulse Electronics HXB7008HLT	6 mm	0.236 "	100 µH	0.48 in	12.2 mm	0.691 in	17.55 mm	1CT	1CT	90 °C	-40 C	Surface Mount	LAN 10G Base-T
Pulse Electronics HXB5G010HLT	6 mm	0.236 "	180 µH	0.48 in	12.2 mm	0.691 in	17.55 mm	1CT	1CT	85 °C	-40 C	Surface Mount	LAN 5G Base-T
Pulse Electronics HXB5012HLT	6 mm	0.236 "	350 µH	0.48 in	12.2 mm	0.691 in	17.55 mm	1CT	1CT	85 °C	-40 C	Surface Mount	LAN 1G Base-T Power over Ethernet (PoE)
Pulse Electronics HXB6014HLT		0.283 in	350 µH	0.48 in	12.2 mm	1.094 in	27.8 mm	1CT	1CT	85 °C	-40 C	Surface Mount	LAN 1000 Base-T Power over Ethernet (PoE)	7.2 mm
