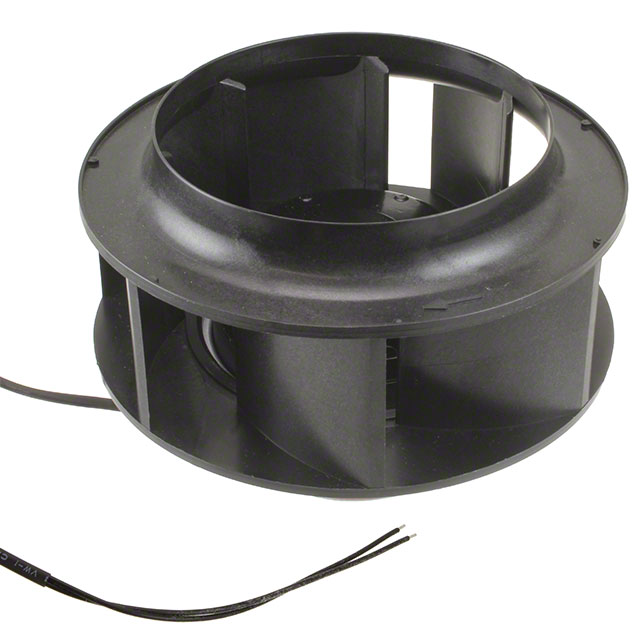

UF133 Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K

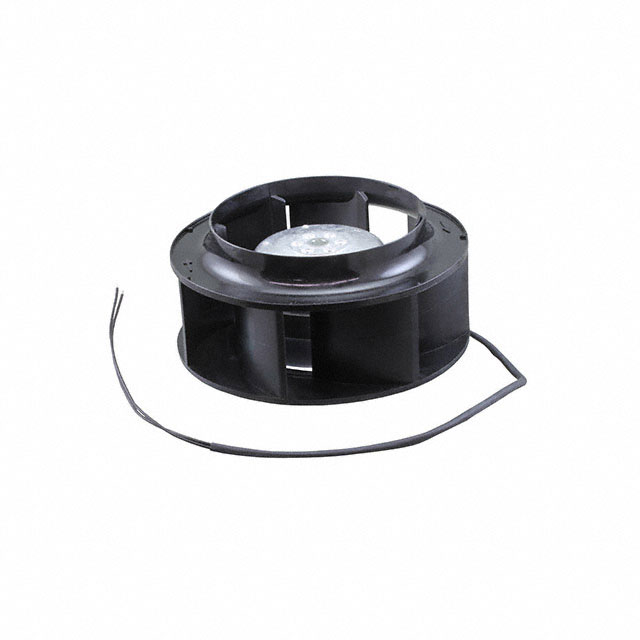

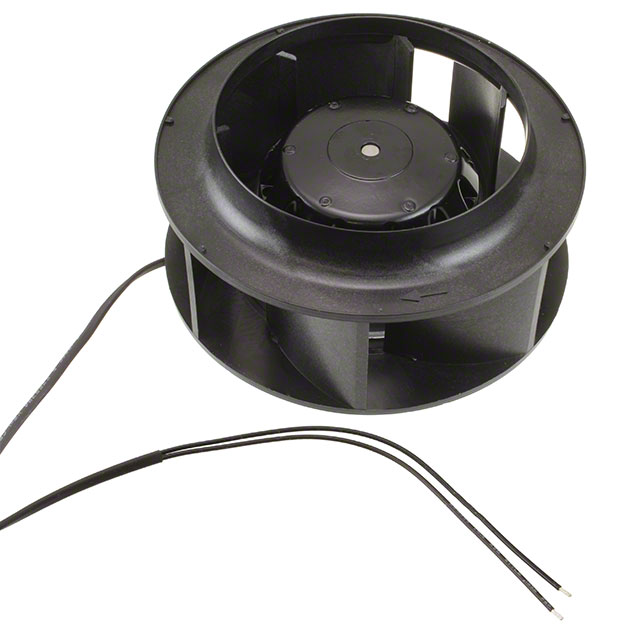

FAN IMP MTRZD 133X72.5MM 230VAC
| Part | Material - Blade | Current Rating (Amps) | Material - Frame | Noise | Weight [custom] | Weight [custom] | Termination | Static Pressure | Static Pressure | Approval Agency | Power (Watts) | Voltage - Rated | Bearing Type | Width [x] | Size / Dimension [diameter] | Size / Dimension | Fan Type | Air Flow | Air Flow | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | RPM | Weight | Weight | Width [y] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | Polyamide (PA6) Nylon 6 Glass Reinforced | 0.24 A | Aluminum | 50 dB(A) | 1.3 lbs | 589.7 g | 2 Wire Leads | 219.2 Pa | 0.88 in H2O | CE cUL TUV UL | 40 W | 230 VAC | Ball | 72.5 mm | 133 mm | Round | Motorized Impellers | 188 CFM | 5.26 m³/min | -40 C | 70 °C | 70 °C | -40 °C | 2780 RPM | ||||
 Mechatronics Fan Group | Plastic | 430 mA | Aluminum | 60 dB(A) | 2 Wire Leads | 219.2 Pa | 0.88 in H2O | CE cUL TUV UL | 41 W | 115 VAC | Ball | 133 mm | Round | Motorized Impellers | 188 CFM | 5.26 m³/min | -40 C | 70 °C | 70 °C | -40 °C | 3200 RPM | 907.2 g | 2 lbs | 91.5 mm | Thermal Overload Protector (TOP) | |||
Mechatronics Fan Group | Plastic | 0.21 A | Aluminum | 60 dB(A) | 2 Wire Leads | 219.2 Pa | 0.88 in H2O | CE cUL TUV UL | 39 W | 230 VAC | Ball | 133 mm | Round | Motorized Impellers | 188 CFM | 5.26 m³/min | -40 C | 70 °C | 70 °C | -40 °C | 3200 RPM | 907.2 g | 2 lbs | 91.5 mm | Thermal Overload Protector (TOP) | |||
 Mechatronics Fan Group | Plastic | 430 mA | Aluminum | 60 dB(A) | 2 Wire Leads | 219.2 Pa | 0.88 in H2O | CE cUL TUV UL | 41 W | 115 VAC | Ball | 72.5 mm | 133 mm | Round | Motorized Impellers | 188 CFM | 5.26 m³/min | -40 C | 70 °C | 70 °C | -40 °C | 3200 RPM | 907.2 g | 2 lbs |
