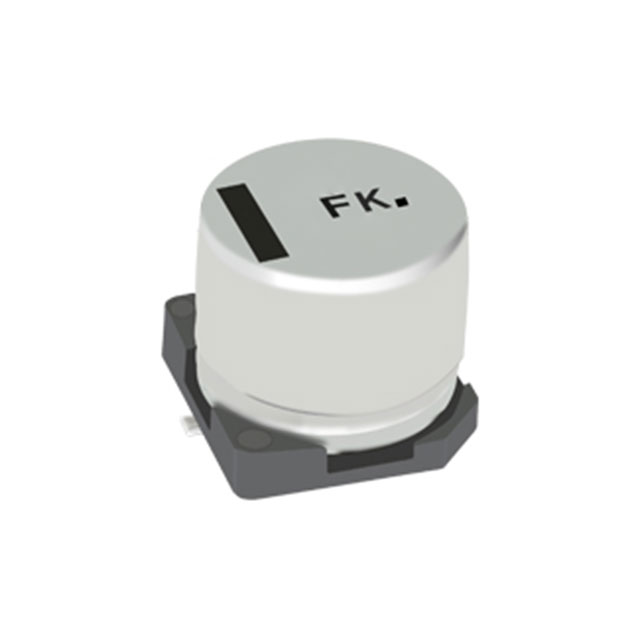

EEE-FKC Series

Manufacturer: Panasonic Electronic Components

Catalog

AL LYTIC SMT FK SERIES, HIGH TEMP REFLOW ROHS COMPLIANT: YES

Part	Ratings	Package / Case	Impedance	Capacitance	Mounting Type	Voltage - Rated	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Polarization	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)
Panasonic Electronic Components EEE-FKC220UAR	AEC-Q200	Radial Can - SMD	1.35 Ohms	22 µF	Surface Mount	16 V	4.3 mm	0.169 "	0.169 in	4.3 mm	2000 Hrs	-55 C	105 ░C	90 mA	4 mm	0.157 in	Automotive High Temperature Reflow	6.1 mm	0.24 "	20 %	Polar	58.5 mA
Panasonic Electronic Components EEE-FKC221XAP	AEC-Q200	Radial Can - SMD	0.34 Ohms	220 µF	Surface Mount	16 V	6.6 mm	0.26 in	0.26 in	6.6 mm	2000 Hrs	-55 C	105 ░C	280 mA	6.3 mm	0.248 "	Automotive High Temperature Reflow			20 %	Polar	182 mA	8 mm	0.315 in
Panasonic Electronic Components EEE-FKC271XSL	AEC-Q200	Radial Can - SMD		270 µF	Surface Mount	16 V	6.6 mm	0.26 in	0.26 in	6.6 mm	2000 Hrs	-55 C	105 ░C	280 mA	6.3 mm	0.248 "	Automotive			20 %	Polar	182 mA	8 mm	0.315 in	340 mOhm
Panasonic Electronic Components EEE-FKC151XAL	AEC-Q200	Radial Can - SMD	0.34 Ohms	150 µF	Surface Mount	16 V	6.6 mm	0.26 in	0.26 in	6.6 mm	2000 Hrs	-55 C	105 ░C	280 mA	6.3 mm	0.248 "	Automotive High Temperature Reflow			20 %	Polar	182 mA	8 mm	0.315 in
Panasonic Electronic Components EEE-FKC221XAL	AEC-Q200	Radial Can - SMD	0.34 Ohms	220 µF	Surface Mount	16 V	6.6 mm	0.26 in	0.26 in	6.6 mm	2000 Hrs	-55 C	105 ░C	280 mA	6.3 mm	0.248 "	Automotive High Temperature Reflow			20 %	Polar	182 mA	8 mm	0.315 in
Panasonic Electronic Components EEE-FKC151XAP	AEC-Q200	Radial Can - SMD	0.34 Ohms	150 µF	Surface Mount	16 V	6.6 mm	0.26 in	0.26 in	6.6 mm	2000 Hrs	-55 C	105 ░C	280 mA	6.3 mm	0.248 "	Automotive High Temperature Reflow			20 %	Polar	182 mA	8 mm	0.315 in
